卡特零件查询（BG-225C） 8I-0836: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
867 次

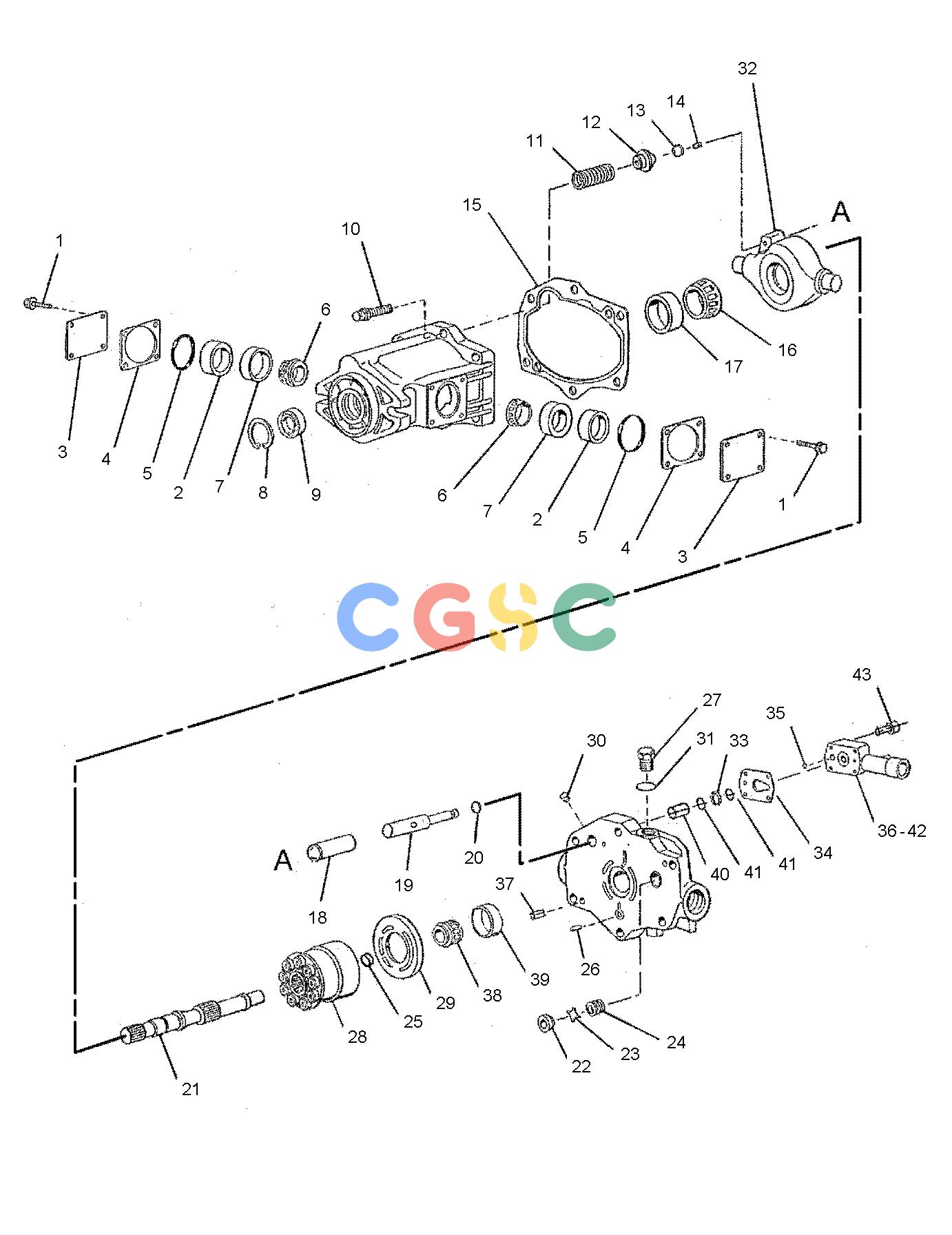

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 031-0214 | [8] | BOLT-LOCKING(1/4-20X0.5-IN) | |
| 2. | 9T-2017 | [2] | SPACER(12.2-MM THK) | |
| 3. | 9T-2014 | [2] | COVER | |
| 4. | 9T-2011 | [1] | SHIM PACK | |
| 5. | 005-8593J | [2] | SEAL-O-RING | |
| 6. | 7T-9831 | [2] | CONE-BEARING | |
| 7. | 3P-8680 | [2] | CUP-BEARING | |
| 8. | 8Q-2979 | [1] | RING | |
| 9. | 8T-5040J | [1] | SEAL-LIP TYPE | |
| 10. | 5P-0076 | [6] | BOLT-12 POINT HEAD(3/8-16X1.5-IN) | |
| 11. | 9T-2168 | [1] | SPRING | |
| 12. | 9T-2171 | [1] | SEAT | |
| 13. | 9T-2173 | [1] | SEAT | |
| 14. | 8J-8308 | [1] | PIN-ROLL | |
| 15. | 9T-1752J | [1] | GASKET | |
| 16. | 7T-9754 | [1] | CONE-BEARING | |
| 17. | 7T-9755 | [1] | CUP-BEARING | |
| 18. | 9T-2172 | [1] | PISTON | |
| 19. | 9T-2170 | [1] | ROD-PISTON | |
| 20. | 7Y-5219J | [1] | SEAL-O-RING | |
| 21. | 6E-6481 | [1] | SHAFT | |
| 22. | 9T-1636 | [1] | SEAT | |
| 23. | 9T-1710 | [1] | POPPET | |
| 24. | 9T-3867 | [1] | SPRING | |
| 25. | 9T-2000 | [1] | KIT-SPACER(AUXILIARY PUMP) | |
| 26. | 9T-2001 | [1] | PIN | |
| 27. | 069-1745 | [1] | PLUG | |
| 28. | 9T-2031Y | [1] | ROTATING GP-PUMP | |
| 29. | 9T-2232 | [1] | PLATE-WAFER | |
| 30. | 9F-2247 | [1] | PLUG-PIPE | |
| 31. | 054-3433J | [1] | SEAL | |
| 32. | 9T-2231 | [1] | SWASHPLATE | |
| 33. | 9H-1113 | [1] | RING-RETAINING | |
| 34. | 9T-2002J | [1] | GASKET | |
| 35. | 5F-9144J | [1] | SEAL-O-RING | |
| 36. | 257-5145Y | [1] | VALVE GP-PUMP CONTROL(AUXILIARY PUMP) | |
| 37. | 8T-5089 | [2] | PIN-SPRING | |
| 38. | 7T-9752 | [1] | CONE-BEARING | |
| 39. | 7T-9753 | [1] | CUP-BEARING | |
| 40. | 100-4231 | [1] | CONNECTOR | |
| 41. | 8F-9206 | [2] | SEAL-O-RING | |
| 42. | 9T-3815 | [1] | SEAT | |
| 43. | 7L-0688 | [4] | BOLT-SOCKET HEAD(10-24X1.2-IN) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 1G-9660J | [1] | KIT-SEAL(AUXILIARY PUMP) | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | Y | | SEPARATE ILLUSTRATION |
