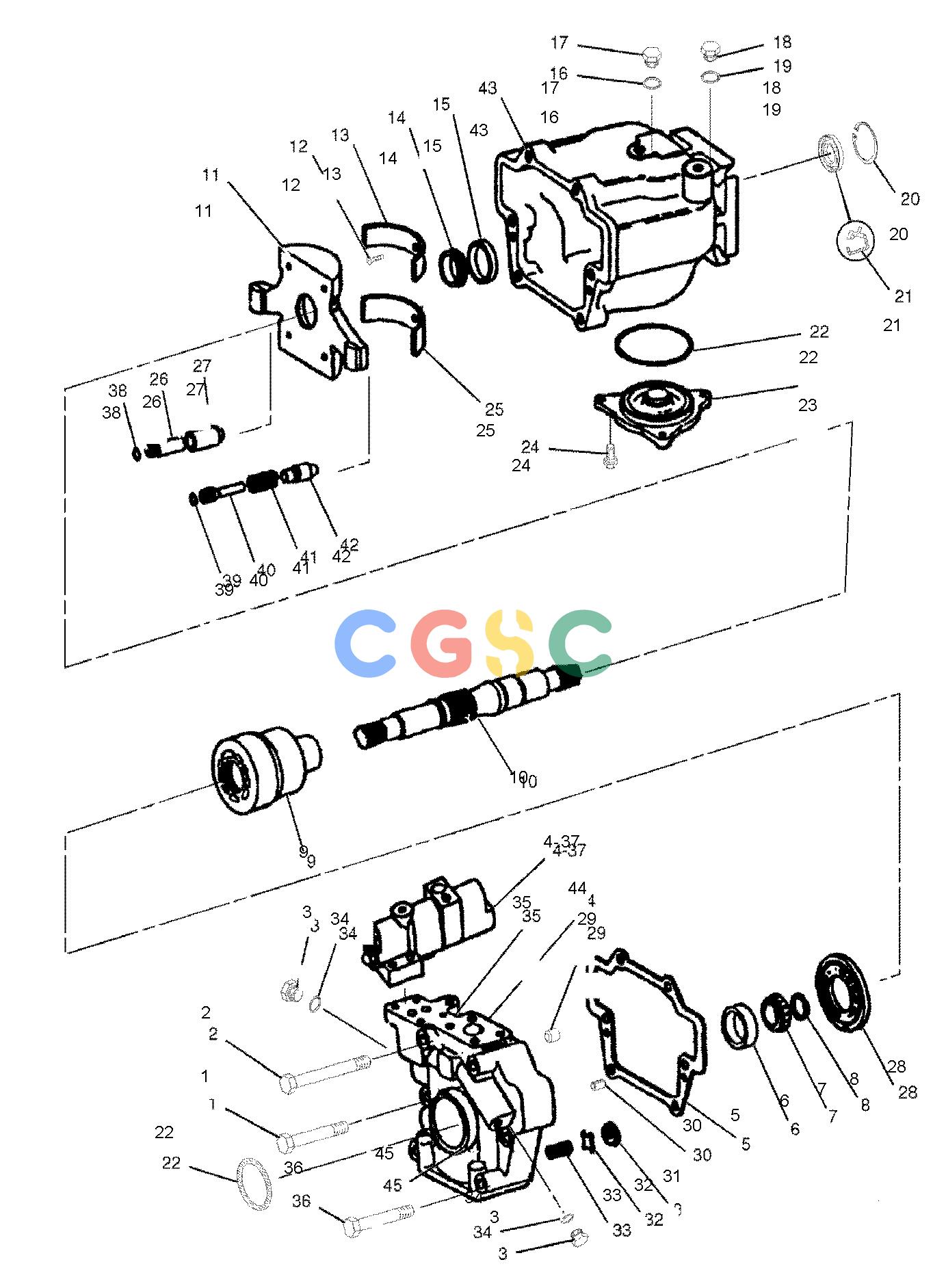

卡特零件查询（BG-225C） 8I-0961: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-2607M | [2] | BOLT(M12X1.75X130-MM) | |
| 2. | 8T-0372M | [2] | BOLT(M12X1.75X90-MM) | |
| 3. | 3E-7417 | [2] | PLUG | |
| 4. | 152-7576Y | [1] | VALVE GP-PUMP CONTROL(PRESSURE, FLOW COMPENSATOR) | |
| 5. | 6E-6580 | [1] | GASKET | |
| 6. | 111-6801 | [1] | CUP-BEARING | |
| 7. | 111-6800 | [1] | CONE-BEARING | |
| 8. | 9T-3038 | [1] | SHIM PACK | |
| 9. | 6E-6569Y | [1] | ROTATING GP-PUMP | |
| 10. | 152-7577 | [1] | SHAFT | |
| 11. | 6E-6583 | [1] | SWASHPLATE GP | |
| | 8F-7219 | [2] | SEAL-O-RING | |
| | 139-0532 | [2] | BLOCK-STOP | |
| 12. | 3E-4302M | [2] | SCREW-FLAT HEAD(M4X0.7X10-MM) | |
| 13. | 6E-6573 | [1] | BEARING | |
| 14. | 005-0471 | [1] | CONE-BEARING | |
| 15. | 005-0469 | [1] | CUP-BEARING | |
| 16. | 033-6036 | [1] | SEAL-O-RING | |
| 17. | 6E-4224 | [1] | PLUG-SWASHPLATE | |
| 18. | 064-9829 | [1] | PLUG | |
| 19. | 3K-0360 | [1] | SEAL-O-RING | |
| 20. | 008-3214 | [1] | RING-RETAINING(INTERNAL) | |
| 21. | 3E-6776 | [1] | SEAL-LIP TYPE | |
| 22. | 5P-3863 | [2] | SEAL-O-RING | |
| 23. | 6E-6575 | [1] | COVER | |
| 24. | 6V-8337M | [3] | BOLT-SOCKET HEAD(M8X1.25X35-MM) | |
| 25. | 6E-6576 | [1] | BEARING | |
| 26. | JZ | [1] | ROD |
| 27. | JZ | [1] | PISTON |
| 28. | 9T-3030 | [1] | PLATE | |
| 29. | 095-0888 | [2] | PIN-SPRING | |
| 30. | 9T-1652 | [1] | PIN | |
| 31. | 9T-1636 | [1] | SEAT | |
| 32. | 9T-1710 | [1] | POPPET | |
| 33. | 9T-1699 | [1] | SPRING | |
| 34. | 5E-0916 | [2] | SEAL-O-RING | |
| 35. | 8T-5039 | [3] | SEAL-O-RING | |
| 36. | 6V-5684M | [2] | BOLT(M12X1.75X45-MM) | |
| 37. | 6V-8837M | [4] | BOLT(M6X1X16-MM) | |
| 38. | JZ | [1] | SEAL |
| 39. | HZ | [1] | SEAL |
| 40. | HZ | [1] | ROD |
| 41. | HZ | [1] | SPRING |
| 42. | HZ | [1] | PISTON |
| 43. | Z | [1] | HOUSING |
| 44. | Z | [1] | COVER |
| 45. | 161-3921 | [1] | PLATE-ADAPTER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 6E-6582H | [1] | KIT-PISTON CONTROL | |
| | 6E-6578J | [1] | KIT-PISTON BIAS | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
| | Z | | NOT SERVICED SEPARATELY |
