卡特零件查询（BG-225C） 115-7183: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
388 次

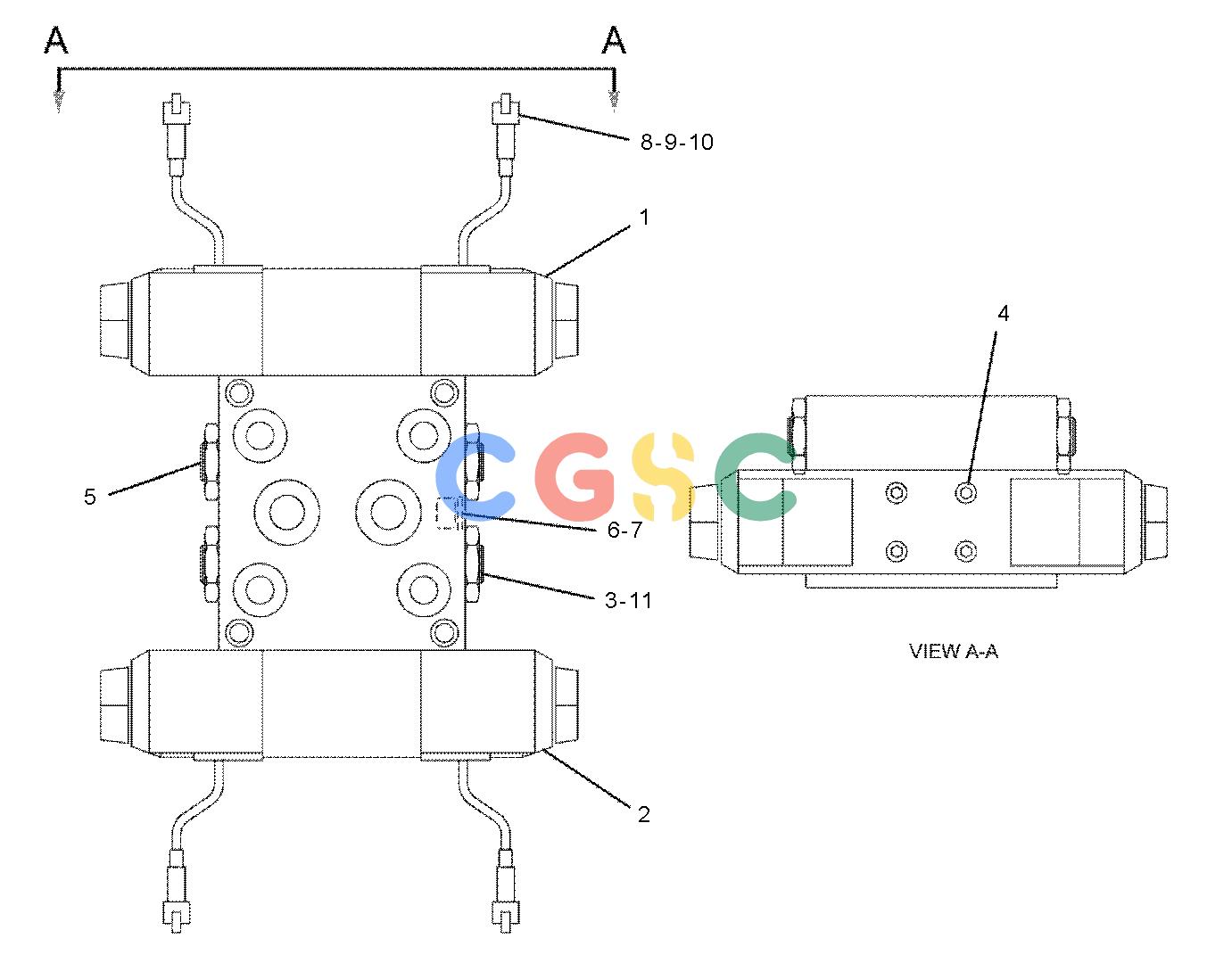

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 122-8683 | [1] | VALVE GP-SOLENOID | |
| | 155-1280 | [2] | COIL | |
| | 207-8229 | [1] | ORIFICE | |
| | 155-1697 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| 2. | 116-9321 | [1] | VALVE GP-SOLENOID(HOPPER) | |
| | 155-1697 | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | 155-1280 | [2] | COIL | |
| 3. | 123-2263 | [4] | VALVE-CHECK | |
| 4. | 107-0809 | [2] | KIT-BOLT(CONTROL VALVE) | |
| 5. | 135-6257 | [2] | PISTON | |
| 6. | 9S-8004 | [2] | PLUG(9/16-18-THD) | |
| 7. | 3J-1907 | [2] | SEAL-O-RING | |
| 8. | 102-8802B | [2] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| 9. | 9W-0852 | [8] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 10. | 9X-1813BE | | SLEEVE | |
| 11. | 155-1279 | [4] | KIT-SEAL(CHECK VALVE) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
