卡特零件查询（BG-225C） 124-9988: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
596 次

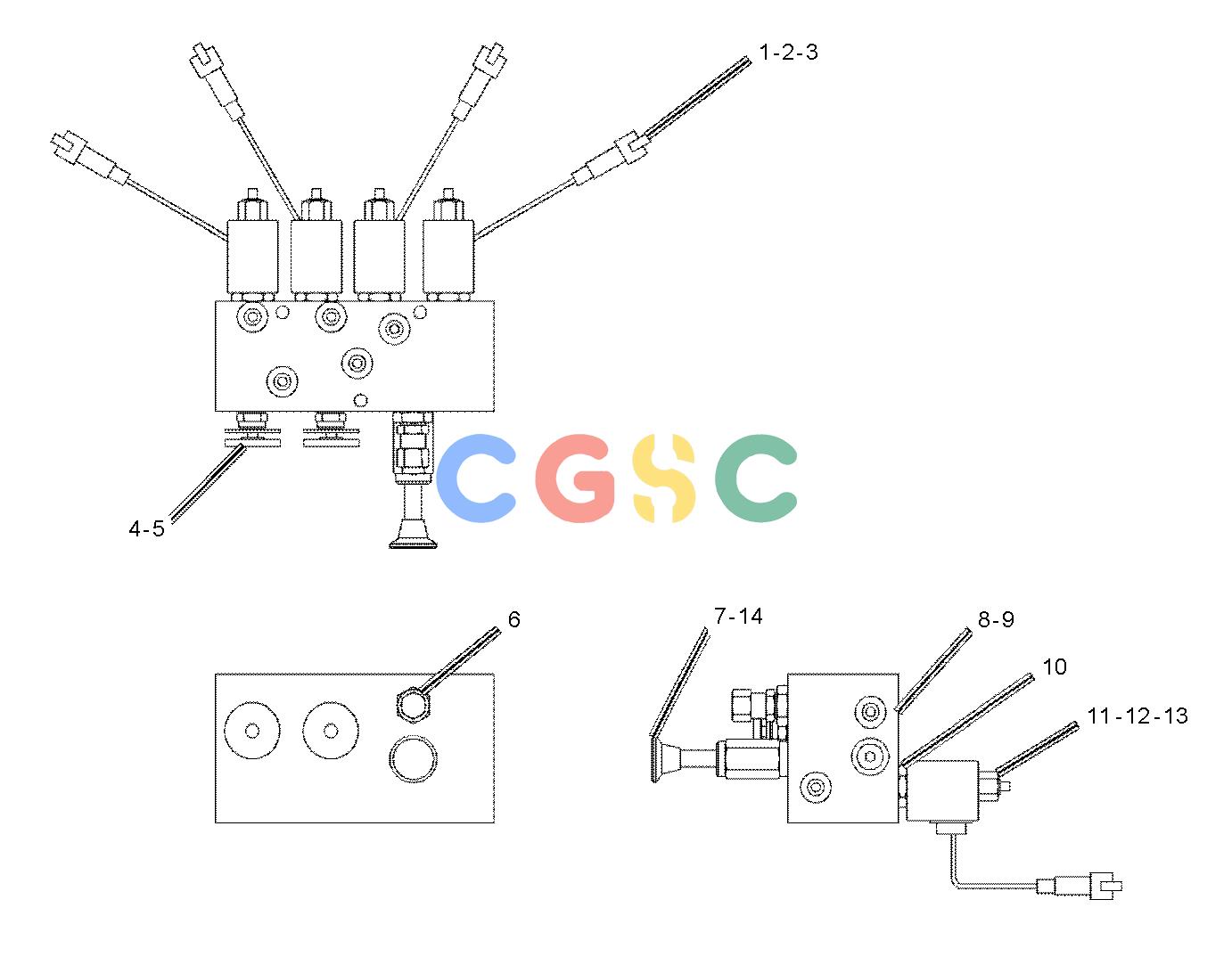

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 9W-0852 | [8] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 3. | 9X-1813E | | SLEEVE(48-CM) | |
| 4. | 135-6287J | [2] | VALVE GP-FLOW CONTROL | |
| 5. | 1G-4381 | [2] | KIT-SEAL(FLOW CONTROL VALVE) | |
| 6. | 135-6288 | [1] | VALVE-RELIEF | |
| 7. | 168-2168 | [1] | KIT-KNOB(PUMP) | |
| 8. | 118-9521 | [3] | VALVE-CHECK | |
| 9. | 155-1279 | [3] | KIT-SEAL(RELIEF VALVE) | |
| | | | (EACH INCLUDES O-RING SEALS & BACKUP RING) |
| 10. | 107-0829 | [4] | NUT-RETAINING | |
| 11. | 114-9244 | [4] | VALVE-SOLENOID | |
| 12. | 168-2165 | [4] | KIT-COIL(SOLENOID VALVE) | |
| 13. | 7X-9181 | [4] | KIT-SEAL(PRESSURE REDUCING VALVE) | |
| | | | (EACH INCLUDES O-RING SEALS & BACKUP RINGS) |
| 14. | 135-6286 | [1] | PUMP-HAND | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 155-3990J | [1] | KIT-SEAL | |
| | 155-3991J | [1] | KIT-KNOB | |
| | E | | ORDER BY THE CENTIMETER |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
