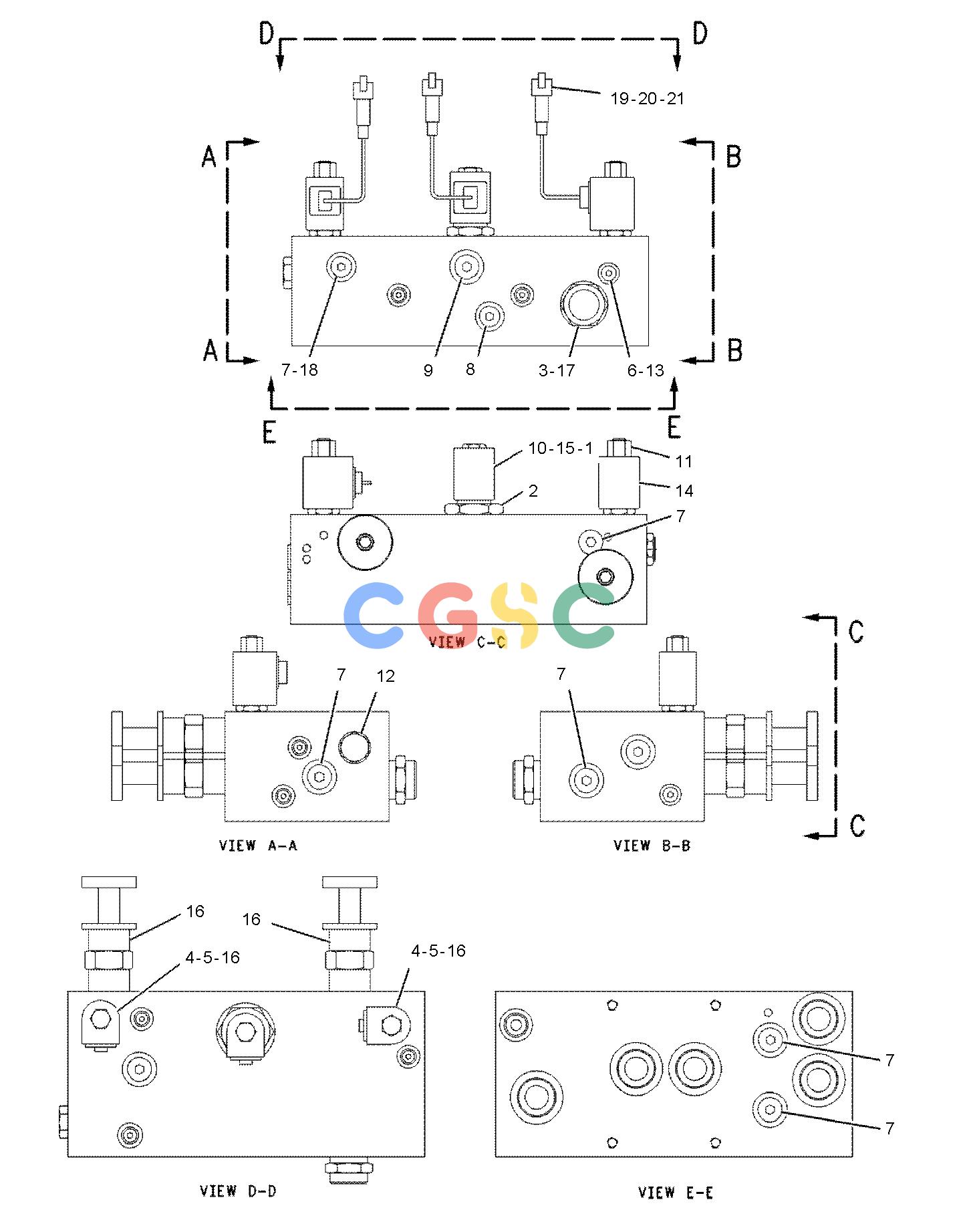

卡特零件查询（BG-225C） 154-1424: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
233 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 166-6637 | [1] | KIT-SEAL(SOL VALVE, CONVEYOR CONT BYP) | |
| 2. | 2U-6509 | [1] | NUT-SOLENOID(1/2-18-THD) | |
| 3. | 155-4649 | [1] | KIT-SEAL(PRESSURE REDUCING VALVE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| 4. | 166-2779 | [2] | KIT-SEAL(RELIEF VALVE, CONVEYOR CONT) | |
| 5. | 155-1279 | [2] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RING) |
| 6. | 216-9059 | [1] | PLUG AS | |
| | | [1] | PLUG |
| | 216-8994 | [1] | SEAL-O-RING | |
| 7. | 216-9061 | [9] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 216-9060 | [1] | PLUG | |
| | 4D-2297 | [1] | SEAL-O-RING | |
| 8. | 216-9063 | [1] | PLUG AS | |
| | 216-9062 | [1] | PLUG | |
| | 216-8996 | [1] | SEAL-O-RING | |
| 9. | 216-9065 | [1] | PLUG AS | |
| | 216-9064 | [1] | PLUG | |
| | 216-8997 | [1] | SEAL-O-RING | |
| 10. | 154-1421 | [1] | COIL | |
| 11. | 107-0829 | [2] | NUT-RETAINING | |
| 12. | 109-9833 | [1] | VALVE-CHECK | |
| 13. | 114-9250 | [1] | PLUG-ORIFICE | |
| 14. | 123-8925 | [2] | COIL-SOLENOID | |
| 15. | 154-1422 | [1] | VALVE-SOLENOID(CONVEYOR CONTROL BYPASS) | |
| 16. | 149-2920 | [2] | VALVE GP-SOLENOID & RELIEF(CONVEYOR CONTROL) | |
| 17. | 168-2514 | [1] | VALVE(CONVEYOR CONTROL) | |
| 18. | 135-2513 | [1] | PLUG-ORIFICE | |
| 19. | 102-8802 | [3] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH KIT INCLUDES RECEPTACLE AS & WEDGE) |
| 20. | 9W-0852 | [6] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 21. | 9X-1813BE | | SLEEVE | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
