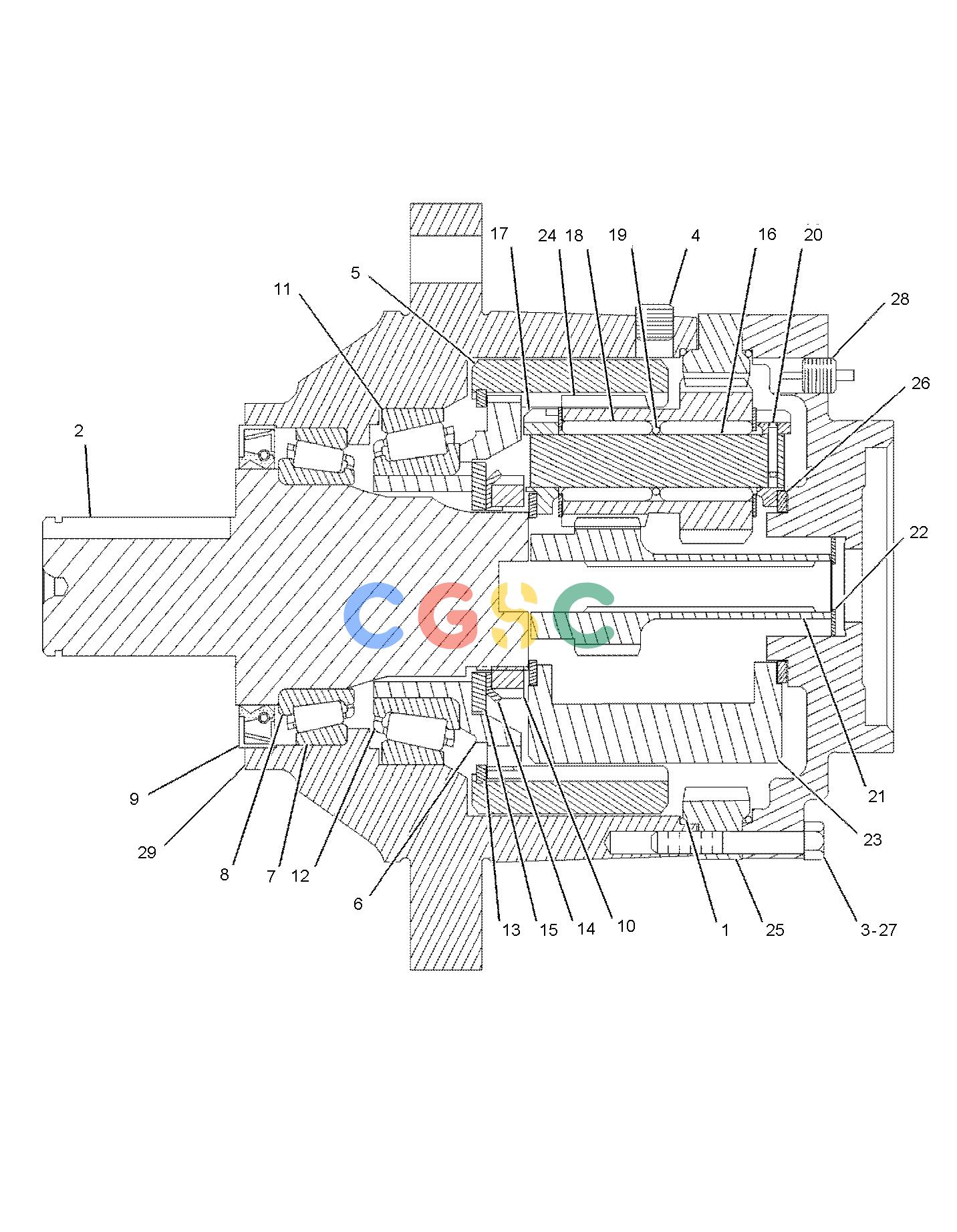

卡特零件查询（BG-225C） 8I-0852: DRIVE GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
505 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-0876 | [2] | SEAL-O-RING | |
| 2. | 112-7600 | [1] | SHAFT | |
| 3. | 9X-0880 | [4] | BOLT-SPECIAL | |
| 4. | 7H-3171 | [2] | PLUG-PIPE | |
| 5. | 8C-7471 | [1] | GEAR | |
| 6. | 8C-7767 | [1] | HUB | |
| 7. | 9S-7949 | [1] | CUP-BEARING | |
| 8. | 9S-7950 | [1] | CONE-BEARING | |
| 9. | 8C-7465 | [1] | SEAL | |
| 10. | 8C-8139 | [1] | LOCKNUT | |
| 11. | 030-0060 | [1] | CUP-BEARING | |
| 12. | 030-0061 | [1] | CONE-BEARING | |
| 13. | 8C-8141 | [1] | RING | |
| 14. | 8C-7470 | [1] | LOCKWASHER | |
| 15. | 8C-8138 | [1] | WASHER | |
| 16. | 8C-7770 | [3] | SHAFT | |
| 17. | 8C-7768 | [6] | WASHER | |
| 18. | 8C-7769 | [96] | ROLLER | |
| 19. | 9X-0887 | [3] | SPACER | |
| 20. | 095-0878 | [3] | PIN-SPRING | |
| 21. | 086-9744 | [1] | GEAR-INPUT | |
| 22. | 087-1183 | [1] | WASHER(THRUST) | |
| 23. | 8C-7472 | [1] | CARRIER | |
| 24. | 086-9743 | [3] | GEAR-CLUSTER | |
| 25. | 086-9745 | [1] | GEAR-RING | |
| 26. | 9X-0875 | [2] | WASHER-THRUST | |
| 27. | 8T-8912 | [8] | BOLT(5/16-18X2.25-IN) | |
| 28. | 9X-0881 | [1] | PLUG | |
| 29. | 8C-7766 | [1] | HUB | |
