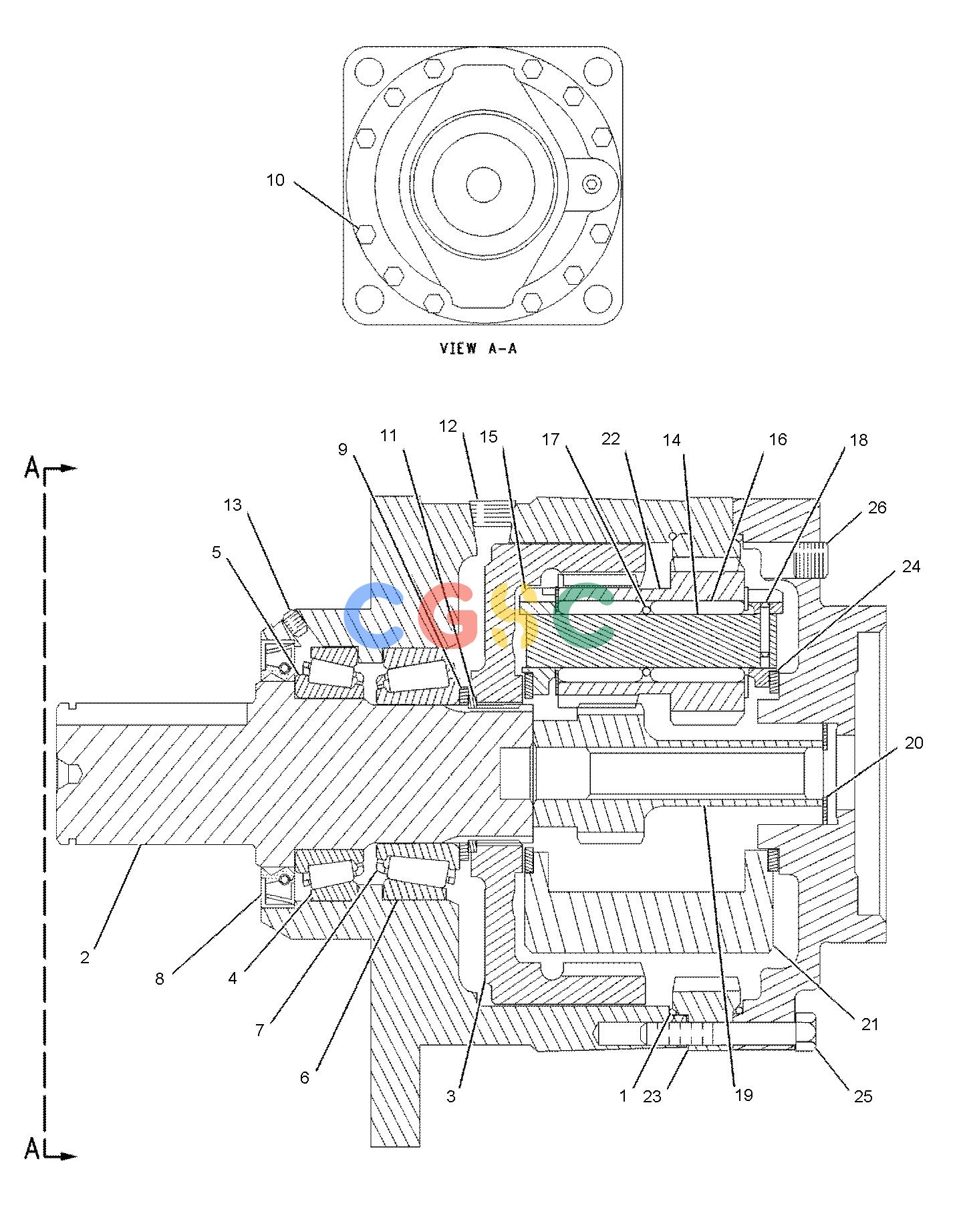

卡特零件查询（BG-225C） 8I-0866: DRIVE GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-0876 | [2] | SEAL-O-RING | |
| 2. | 9X-0873 | [1] | SHAFT | |
| 3. | 112-7747 | [1] | GEAR | |
| 4. | 7K-5448 | [1] | CUP-BEARING | |
| 5. | 7K-5449 | [1] | CONE-BEARING | |
| 6. | 7K-8876 | [1] | CUP-BEARING | |
| 7. | 7K-8877 | [1] | CONE-BEARING | |
| 8. | 098-3177 | [1] | SEAL | |
| 9. | 9X-0867 | [1] | SPACER | |
| 10. | 9X-0880 | [4] | BOLT-SPECIAL | |
| 11. | 1T-0205 | [1] | RING-SNAP | |
| 12. | 7M-7410 | [2] | PLUG-PIPE | |
| 13. | 8T-6759 | [1] | PLUG-PIPE | |
| 14. | 8C-7770 | [3] | SHAFT | |
| 15. | 8C-7768 | [6] | WASHER | |
| 16. | 8C-7769 | [96] | ROLLER | |
| 17. | 9X-0887 | [3] | SPACER | |
| 18. | 095-0878 | [3] | PIN-SPRING | |
| 19. | 086-9744 | [1] | GEAR-INPUT | |
| 20. | 087-1183 | [1] | WASHER(THRUST) | |
| 21. | 8C-7472 | [1] | CARRIER | |
| 22. | 8C-7771 | [3] | GEAR | |
| 23. | 9X-0877 | [1] | GEAR-RING | |
| 24. | 9X-0875 | [2] | WASHER-THRUST | |
| 25. | 8T-8912 | [8] | BOLT(5/16-18X2.25-IN) | |
| 26. | 2R-8942 | [1] | PLUG-MAGNETIC(AUGER CONVEYOR) | |
