卡特零件查询（BG-225C） 115-2306: GUARD GP-FEEDER
广数供应链运营团队, 16 02月, 2025，浏览：
809 次

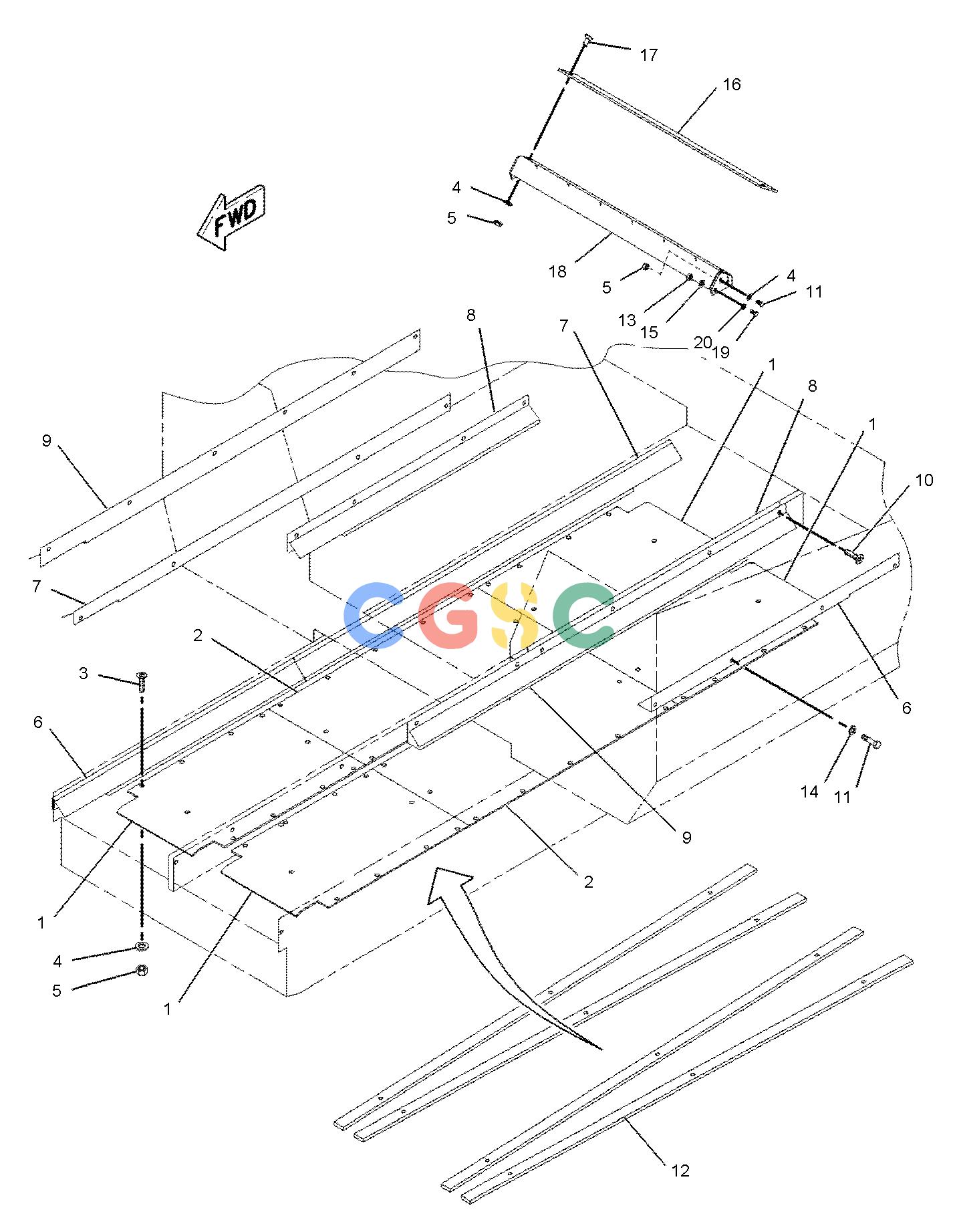

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0825 | [4] | PLATE | |
| 2. | 115-5983 | [2] | PLATE | |
| 3. | 2J-0996 | [60] | SCREW(1/2-13X1.75-IN) | |
| 4. | 8T-4223 | [66] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 6V-8188 | [66] | NUT(1/2-13-THD) | |
| 6. | 8I-0833 | [2] | GUARD AS | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [5] | NUT-WELD(1/2-13-THD) | |
| 7. | 115-5975 | [2] | GUARD AS | |
| | | | (EACH INCLUDES) |
| | 1F-0748 | [3] | NUT-WELD(1/2-13-THD) | |
| 8. | 115-5978 | [2] | GUARD AS | |
| 9. | 115-5980 | [2] | GUARD AS | |
| 10. | 8T-4012 | [8] | SCREW-HEX SOCKET(1/2-13X1.5-IN) | |
| 11. | 8T-8919 | [16] | BOLT(1/2-13X1.75-IN) | |
| 12. | 115-5984 | [4] | BAR | |
| 13. | 7X-0447 | [2] | NUT(7/16-14-THD) | |
| 14. | 5P-1076 | [14] | WASHER-HARD(13.5X30X4-MM THK) | |
| 15. | 7X-0546 | [4] | WASHER-HARD(12X25.5X2-MM THK) | |
| 16. | 120-7614 | [1] | PLATE | |
| 17. | 107-2784 | [4] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 18. | 118-5828 | [1] | DEFLECTOR AS | |
| 19. | 8C-6877 | [2] | BOLT(7/16-14X1.75-IN) | |
