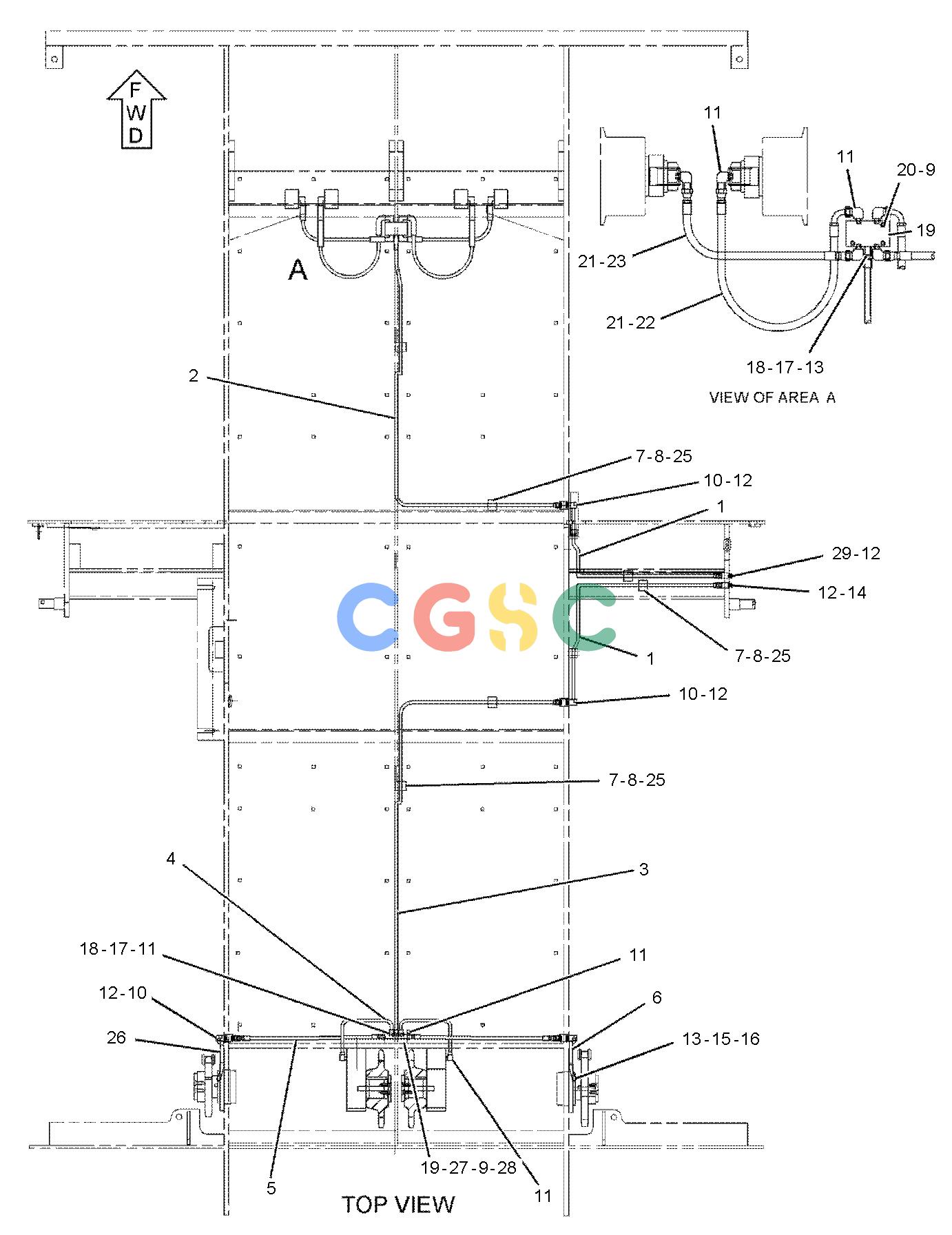

卡特零件查询（BG-225C） 115-2279: LINES GP-LUBRICATION
广数供应链运营团队, 16 02月, 2025，浏览：
213 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 118-0643 | [2] | TUBE AS | |
| 2. | 118-0644 | [1] | TUBE AS | |
| 3. | 118-0645 | [1] | TUBE AS | |
| 4. | 118-0646 | [2] | TUBE AS | |
| 5. | 144-8245I | [2] | HOSE AS | |
| 6. | 118-0648 | [1] | TUBE AS | |
| 7. | 7R-6037 | [12] | CLAMP | |
| 8. | 7X-2501 | [12] | BOLT(1/4-20X1.25-IN) | |
| 9. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 183-7258 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 7X-5331 | [1] | ELBOW | |
| 11. | 148-8389 | [15] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 7X-0492 | [1] | ELBOW | |
| 12. | 148-8337 | [6] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6866 | [1] | CONNECTOR | |
| 13. | 148-8320 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | ADAPTER | |
| 14. | 3B-8490 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 15. | 2D-1683 | [2] | FITTING(1/8-27 PTF) | |
| 16. | 3B-7896 | [2] | ELBOW-STREET | |
| 17. | 3B-6487 | [2] | COUPLING(PIPE) | |
| 18. | 5K-5068 | [2] | FITTING-PIPE(1/8-27 PTF) | |
| 19. | 8I-0972 | [2] | VALVE | |
| 20. | 5P-2675 | [2] | BOLT(1/4-20X1.75-IN) | |
| 21. | 3D-6209 | [4] | GROMMET | |
| 22. | 105-6614I | [2] | HOSE AS | |
| 23. | 105-6613I | [2] | HOSE AS | |
| 25. | 7R-7950 | [6] | PLATE | |
| 26. | 120-9637 | [1] | TUBE AS | |
| 27. | 8T-9368 | [2] | BOLT(1/4-20X2.25-IN) | |
| 28. | 6V-8185 | [2] | NUT(1/4-20-THD) | |
| 29. | 3B-8487 | [1] | FITTING-GREASE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
