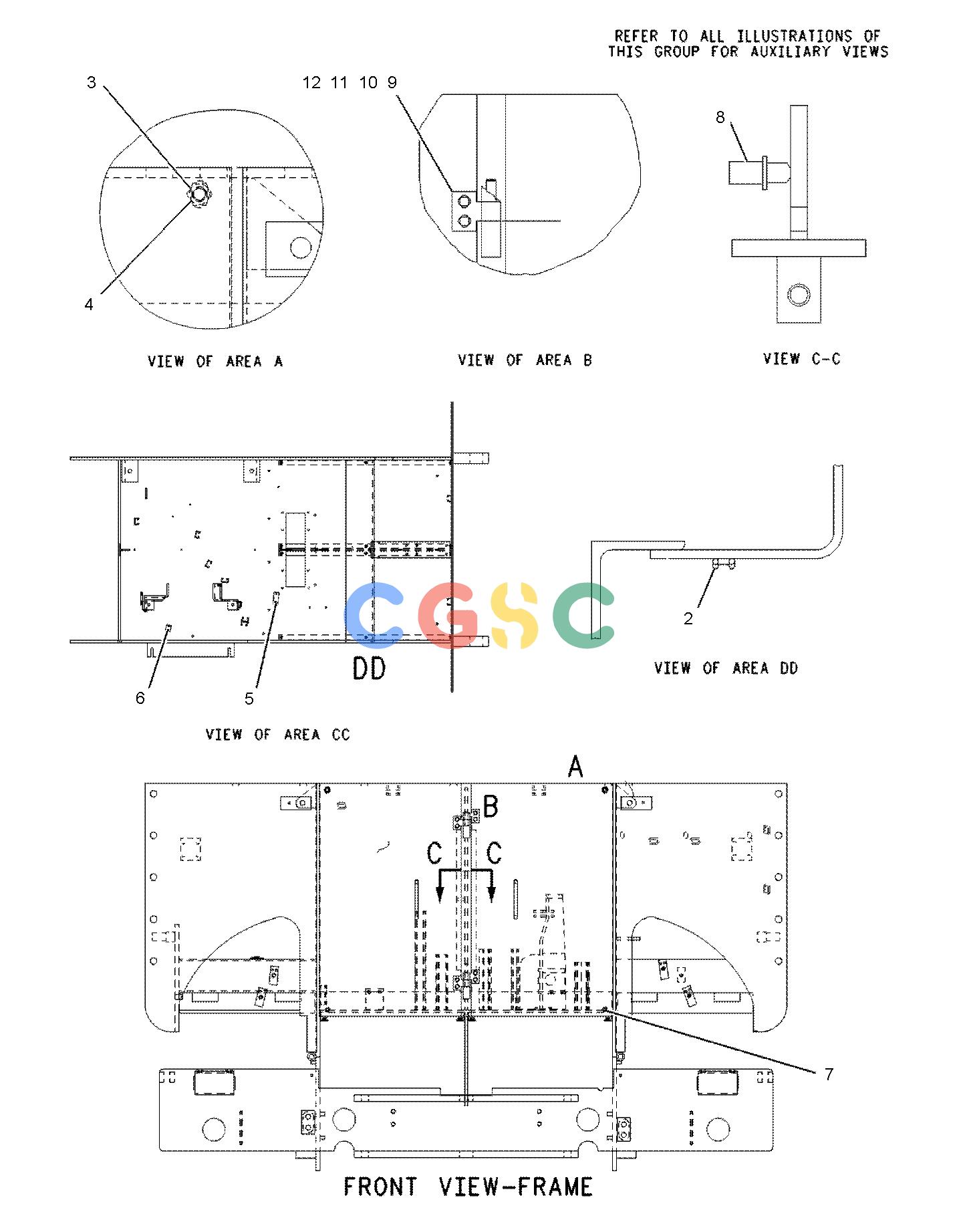

卡特零件查询（BG-225C） 115-2263: FRAME AS-MAIN
广数供应链运营团队, 16 02月, 2025，浏览：
801 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-6025 | [4] | CLAMP-WELD PLATE | |
| 2. | 7T-1099 | [5] | LINK | |
| 3. | 1F-0748 | [2] | NUT-WELD(1/2-13-THD) | |
| 4. | 8T-4012 | [2] | SCREW-HEX SOCKET(1/2-13X1.5-IN) | |
| 5. | 7R-7944 | [1] | PLATE AS | |
| 6. | 7V-5627 | [1] | PLATE AS | |
| 7. | 107-2783 | [2] | SCREW-FLAT HEAD(1/2-13X1-IN) | |
| 8. | 9K-3050 | [1] | STUD-WELD | |
| 9. | 7R-3630 | [4] | HINGE AS | |
| 10. | 9B-7237 | [8] | BOLT(3/8-16X1.25-IN) | |
| 11. | 6V-8801 | [8] | NUT(3/8-16-THD) | |
| 12. | 5P-1075 | [16] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 13. | 7R-7963 | [2] | PLATE AS | |
| 14. | 177-7894 | [6] | BAR | |
