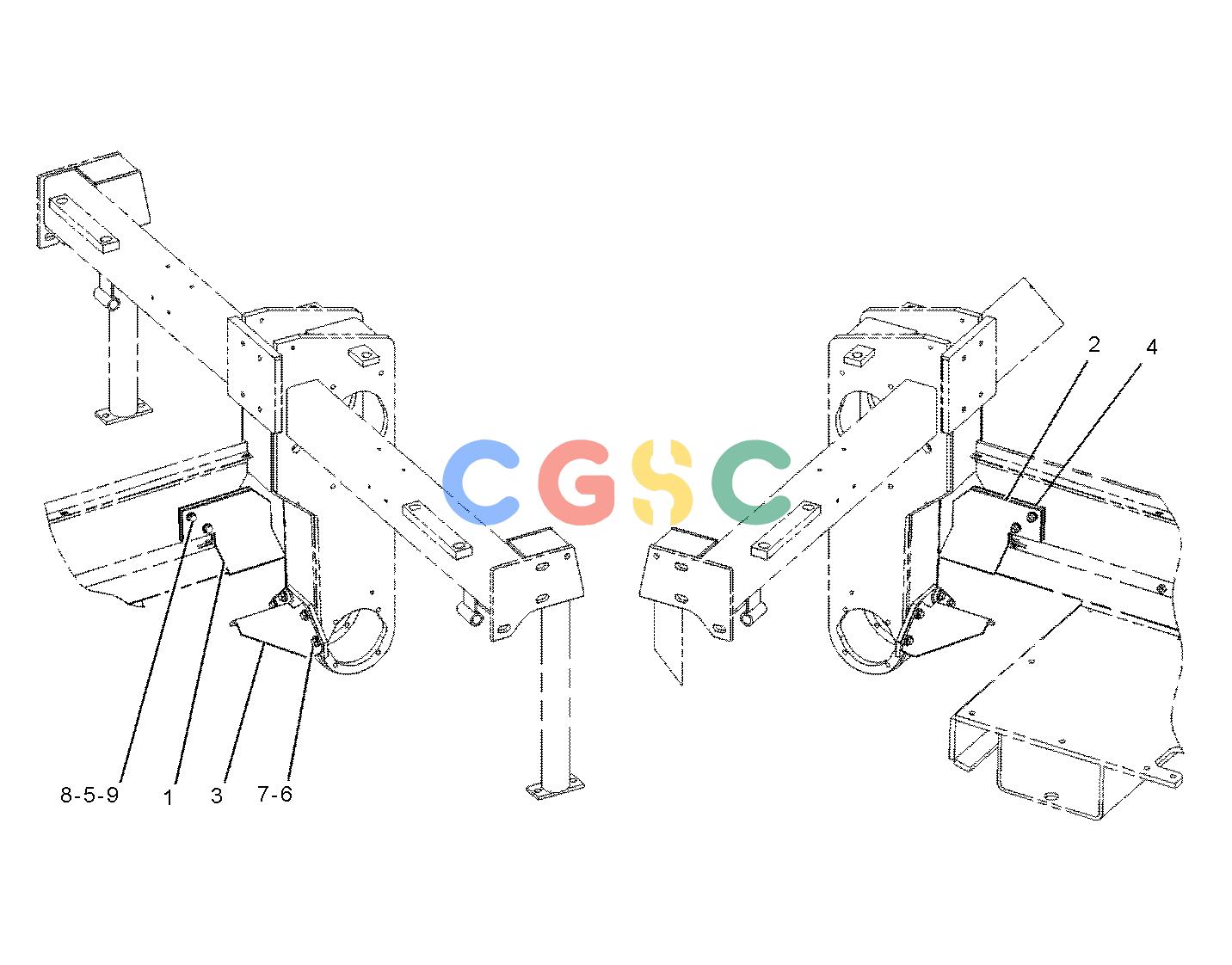

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 167-7799J | [1] | GUARD | |
| 2. | 167-7800J | [1] | GUARD | |
| 3. | 167-8109J | [1] | DEFLECTOR | |
| 4. | 167-9542 | [1] | PLATE | |
| 5. | 6V-8188 | [2] | NUT(1/2-13-THD) | |
| 6. | 7X-0272 | [4] | BOLT(7/16-14X0.875-IN) | |
| 7. | 7X-0589 | [4] | WASHER-HARD(12X28.5X5-MM THK) | |
| 8. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 8T-8919 | [2] | BOLT(1/2-13X1.75-IN) | |
| J | DEFLECTOR AND GUARDS MAY NOT BE USED SIMULTANEOUSLY ON 8FT SCREEDS. | |||
