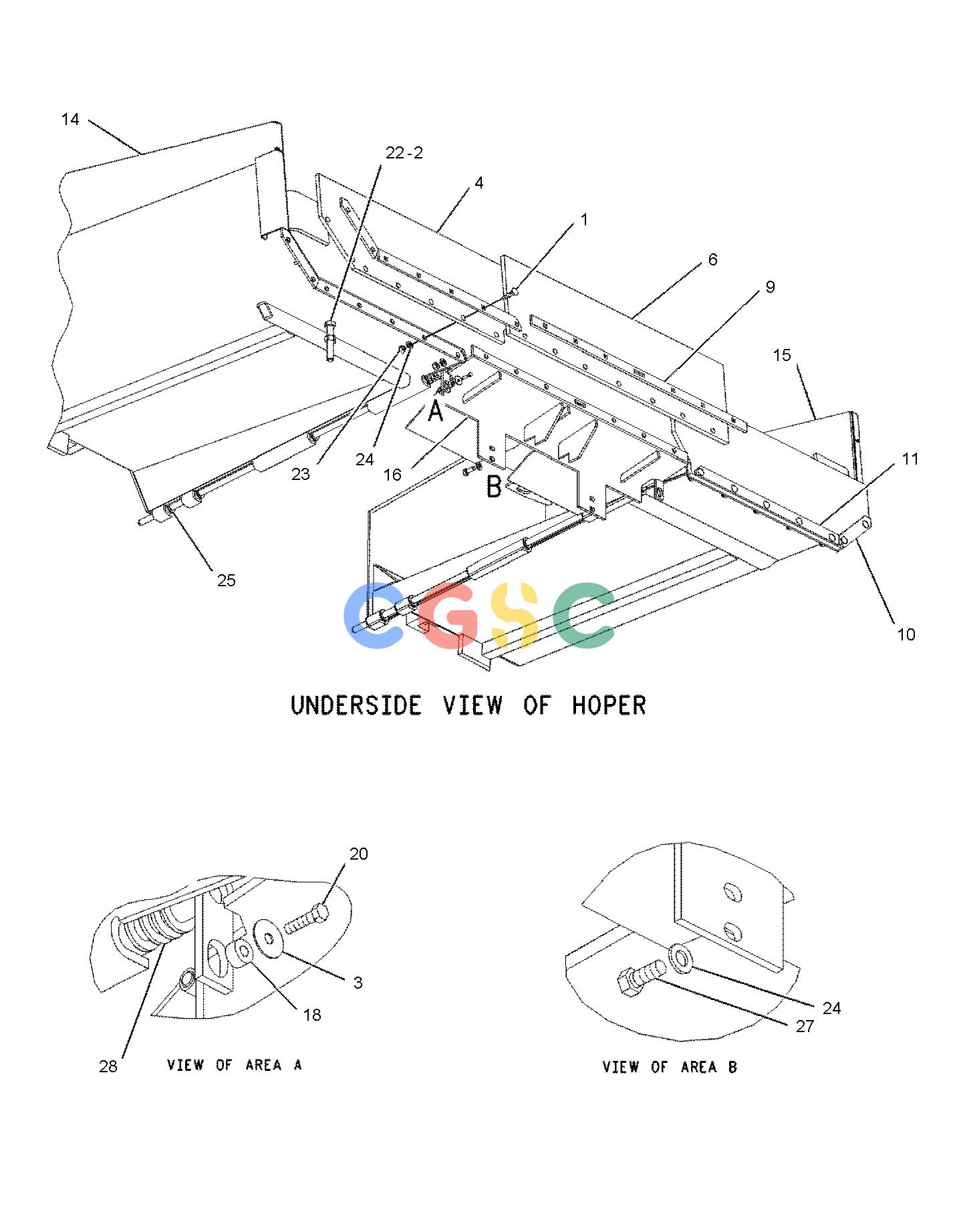

卡特零件查询（BG-225C） 172-3961: HOPPER GP
广数供应链运营团队, 16 02月, 2025，浏览：
849 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1D-4700 | [21] | BOLT-CARRIAGE(5/8-11X2.5-IN) | |
| 2. | 3E-8047 | [2] | BOLT(1-8X6-IN) | |
| 3. | 7W-9738 | [2] | WASHER(10.5X38X1.6-MM THK) | |
| 4. | 104-5104 | [2] | FLASHING-RIGID | |
| 5. | 104-5118 | [2] | ROUND | |
| 6. | 116-6996 | [1] | FLASHING-RIGID | |
| 7. | 129-6335 | [2] | FLASHING | |
| 8. | 129-6336 | [2] | BAR | |
| 9. | 131-5546 | [1] | BAR | |
| 10. | 131-5547 | [2] | BAR | |
| 11. | 131-5548 | [2] | BAR | |
| 12. | 131-7206 | [2] | PIN AS | |
| 13. | 163-3292 | [2] | APRON AS | |
| 14. | 171-4776 | [1] | HOPPER AS | |
| 15. | 171-4777 | [1] | HOPPER AS | |
| 16. | 172-3963 | [1] | APRON AS | |
| | 4V-0969 | [1] | PLATE AS | |
| | 115-9244 | [1] | BAR | |
| 17. | 172-3993 | [2] | PIN AS | |
| 18. | 106-1242 | [2] | SPACER(13.8X23.75X12.7-MM THK) | |
| 19. | 030-7571 | [2] | BOLT(3/8-16X1-IN) | |
| 20. | 9B-7237 | [2] | BOLT(3/8-16X1.25-IN) | |
| 21. | 5P-2566 | [6] | BOLT(1/2-13X1.5-IN) | |
| 22. | 6V-8190 | [2] | NUT(1-8-THD) | |
| 23. | 7X-0448 | [21] | NUT(5/8-11-THD) | |
| 24. | 8T-4122 | [25] | WASHER-HARD(17X32X3.5-MM THK) | |
| 25. | 8T-4167 | [16] | WASHER-HARD(26X44X4-MM THK) | |
| 26. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 27. | 8T-9393 | [4] | BOLT(5/8-11X1.5-IN) | |
| 28. | 185-4025 | [8] | SHIM(1.2-MM THK) | |
