卡特零件查询（BG-225C） 115-2288: HOPPER GP
广数供应链运营团队, 16 02月, 2025，浏览：
392 次

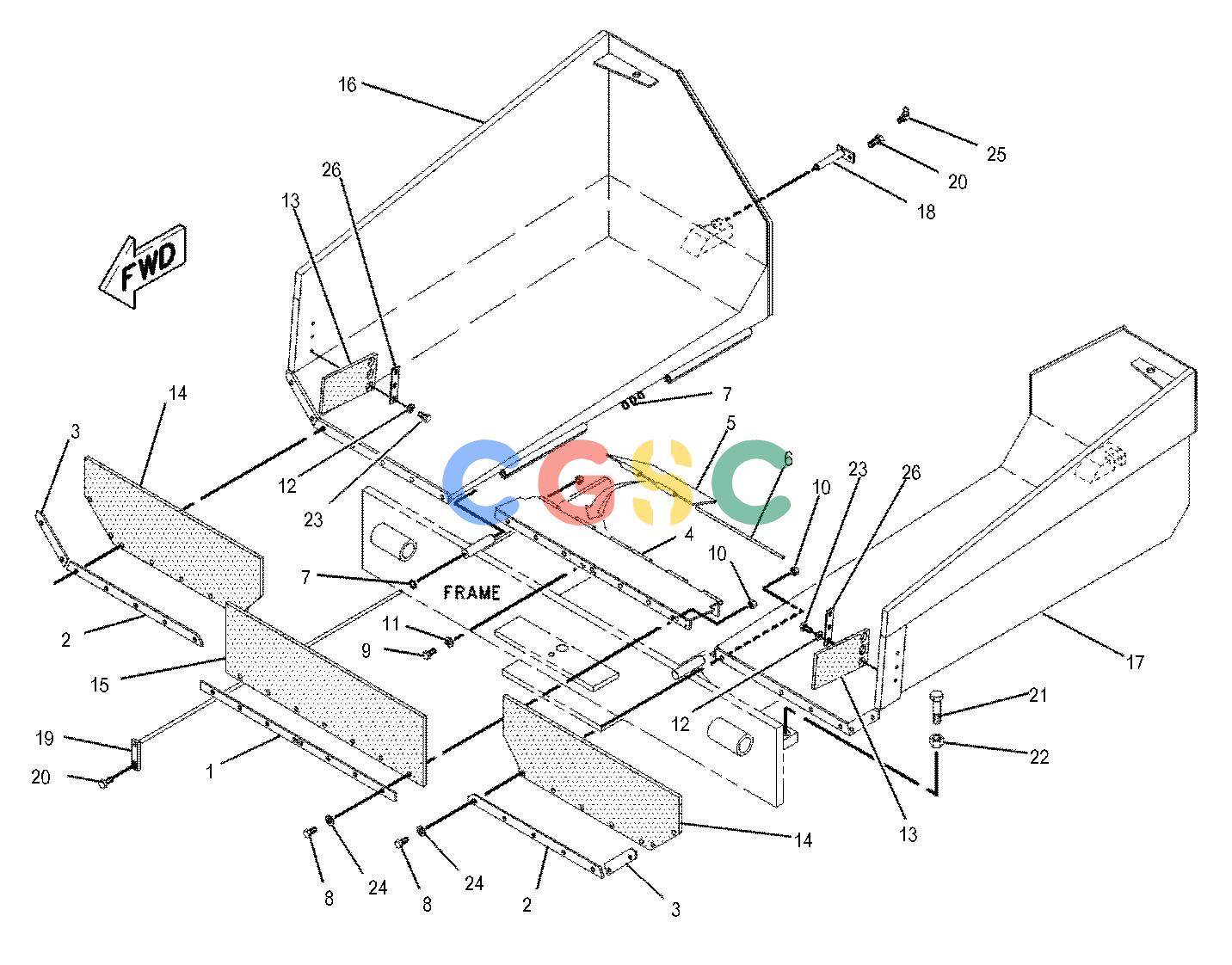

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-5546 | [1] | BAR | |
| 2. | 131-5548 | [2] | BAR | |
| 3. | 131-5547 | [2] | BAR | |
| 4. | 116-6995 | [1] | APRON AS | |
| 5. | 104-5114 | [2] | APRON AS | |
| 6. | 104-5118 | [2] | ROUND | |
| 7. | 7X-0619B | [6] | WASHER-HARD(20X30X2.5-MM THK) | |
| 8. | 1D-4700 | [21] | BOLT-CARRIAGE(5/8-11X2.5-IN) | |
| 9. | 7X-0346 | [4] | BOLT(5/8-11X2-IN) | |
| 10. | 6V-8182 | [21] | NUT(3/4-10-THD) | |
| 11. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 12. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 129-6335 | [2] | FLASHING | |
| 14. | 104-5104 | [2] | FLASHING-RIGID | |
| 15. | 116-6996 | [1] | FLASHING-RIGID | |
| 16. | 116-3779 | [1] | HOPPER AS | |
| 17. | 116-3780 | [1] | HOPPER AS | |
| 18. | 102-9848 | [2] | PIN AS | |
| 19. | 102-9849 | [2] | PIN AS | |
| 20. | 030-7571 | [4] | BOLT(3/8-16X1-IN) | |
| 21. | 3E-8047 | [2] | BOLT(1-8X6-IN) | |
| 22. | 6V-8190 | [2] | NUT(1-8-THD) | |
| 23. | 5P-2566 | [6] | BOLT(1/2-13X1.5-IN) | |
| 24. | 8T-4994 | [21] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 25. | 3B-8485 | [2] | ELBOW | |
| 26. | 129-6336 | [2] | BAR | |
| | B | | USE AS REQUIRED |
