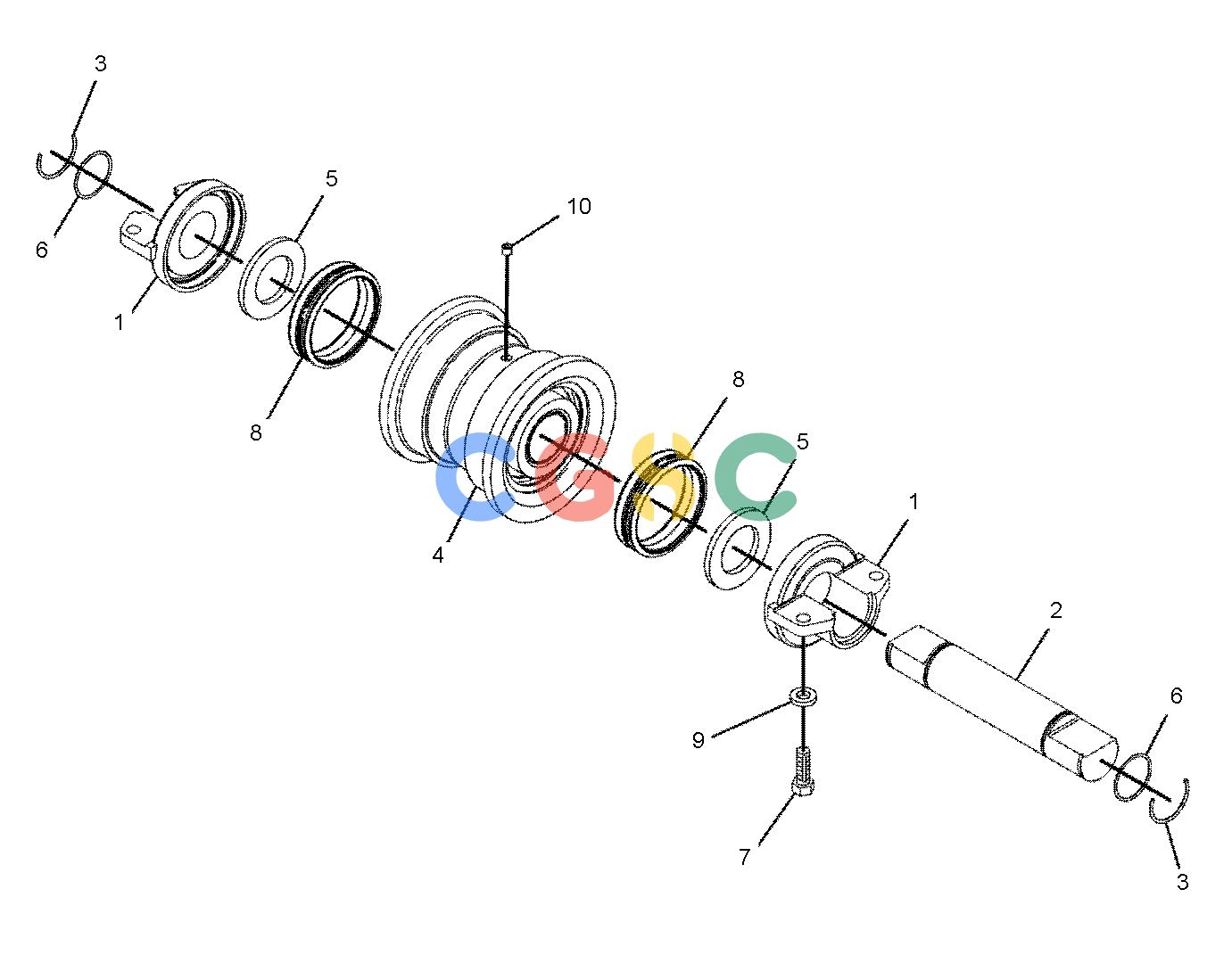

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3T-4283 | [1] | COLLAR | |
| 2. | 6S-3171 | [1] | SHAFT | |
| 3. | 6S-3172 | [2] | RING | |
| 4. | 6S-3495 | [2] | BEARING AS | |
| (EACH INCLUDES) | ||||
| 6Y-4744 | [1] | BUSHING | ||
| 6S-7038 | [1] | RIM AS | ||
| 5. | 6S-7715 | [2] | WASHER-THRUST(52X86X6.35-MM THK) | |
| 6. | 7D-9749 | [2] | SEAL-O-RING | |
| 7. | 0S-1585 | [4] | BOLT(1/2-13X1.5-IN) | |
| 8. | 216-2957 | [2] | SEAL GP-DUO-CONE | |
| 9. | 2M-0849 | [4] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| 10. | 9F-2247 | [1] | PLUG-PIPE | |
