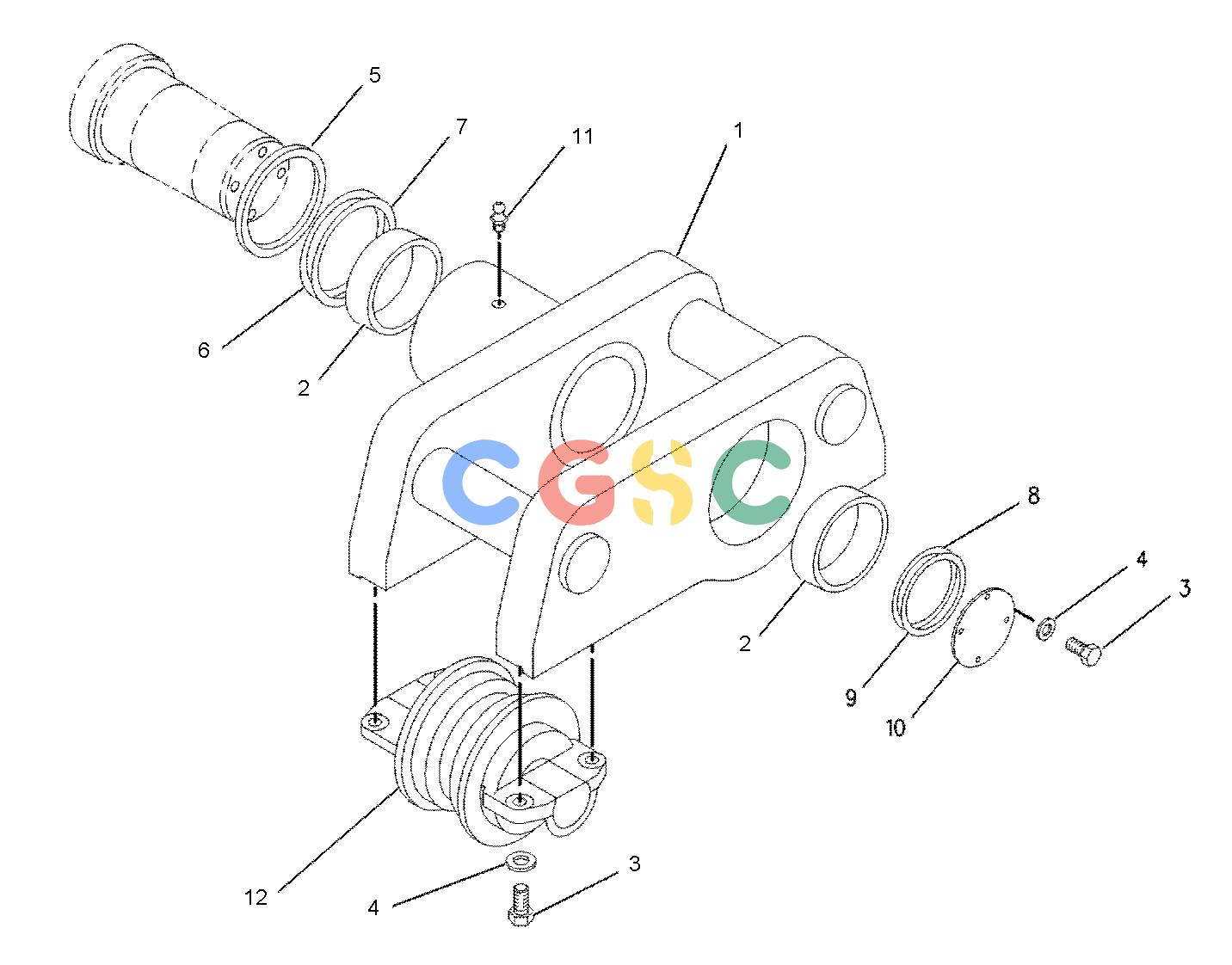

卡特零件查询（BG-225C） 115-2293: BOGIE GP-REAR
广数供应链运营团队, 16 02月, 2025，浏览：
443 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 115-9851 | [1] | FRAME AS-BOGIE(0.51-MM) | |
| 2. | 105-9072 | [2] | BUSHING | |
| 3. | 5P-2566 | [16] | BOLT(1/2-13X1.5-IN) | |
| 4. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 5. | 105-9066 | [1] | WASHER-HARD(128.25X165X6.35-MM THK) | |
| 6. | 105-9058B | [4] | SHIM(1.5-MM THK) | |
| 7. | 105-9059B | [2] | SHIM(0.51-MM THK) | |
| 8. | 115-9258B | [3] | SHIM(1.9-MM THK) | |
| 9. | 115-9259B | [3] | SHIM(0.51-MM THK) | |
| | 8C-8251B | [2] | SPACER(128.5X152.4X1.5-MM THK) | |
| | B | [2] | SHIM(0.51-MM THK) |
| 10. | 115-9260 | [1] | CAP | |
| 11. | 3B-8489 | [1] | FITTING-GREASE(1/8-27 PTF) | |
| 12. | 3T-4352Y | [3] | ROLLER GP-TRACK | |
| | B | | USE AS REQUIRED |
| | Y | | SEPARATE ILLUSTRATION |
