卡特零件查询（BG-225C） 190-7525: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
339 次

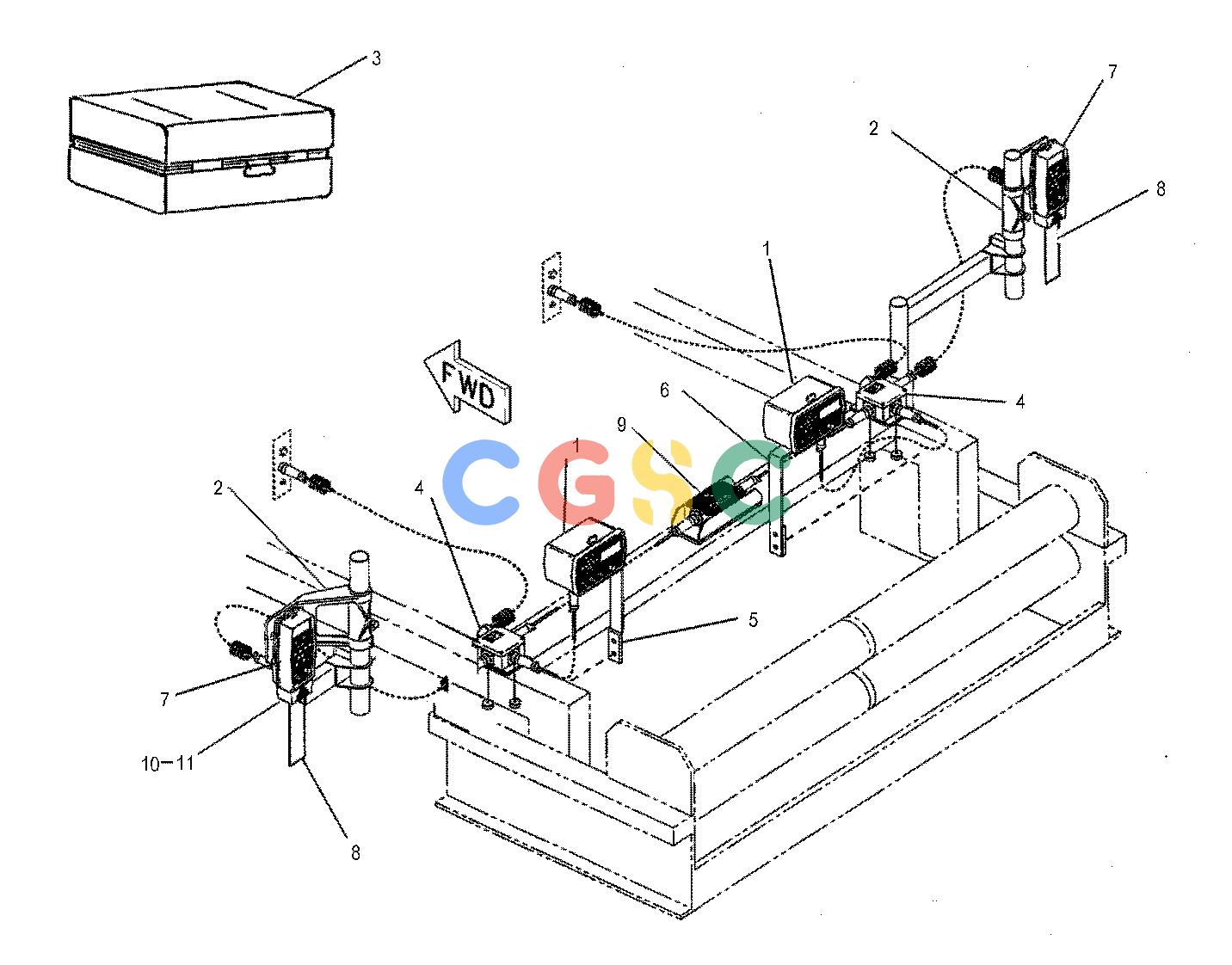

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 108-2398 | [2] | CONTROL GP-GRADE & SLOPE | |
| 2. | 108-2428 | [2] | BRACKET-TRACKER | |
| 3. | 108-2426 | [1] | CASE-CARRYING | |
| 4. | 108-2394 | [2] | JUNCTION BOX | |
| 5. | 108-2418 | [1] | BRACKET AS | |
| 6. | 108-2417 | [1] | BRACKET AS | |
| 7. | 108-2408 | [2] | SENSOR GP-GRADE | |
| | | | (EACH INCLUDES) |
| | 285-3251 | [1] | PLATE-RETAINER | |
| | 113-1550 | [1] | KIT-TRANSDUCER | |
| | | | (INCLUDES SCREWS, TY WRAP, 0-RING SEAL, ULTRASONIC TRANSDUCER & FOAM KIT) |
| | 113-1551 | [1] | KIT-FILTER(FOAM) | |
| | | | (INCLUDES FOAMS) |
| 8. | 108-2410 | [2] | BAIL-TEMPERATURE | |
| 9. | 190-7522 | [1] | SENSOR-SLOPE(GRADE CONTROL) | |
| 10. | 113-1551 | [1] | KIT-FILTER(FOAM) | |
| | | | (INCLUDES FOAMS) |
| 11. | 113-1550 | [1] | KIT-TRANSDUCER | |
| | | | (INCLUDES SCREWS, TY WRAP, 0-RING SEAL, ULTRASONIC TRANSDUCER & FOAM KIT) |
| | | | |
| | 141-1575F | [1] | CAP | |
| | 112-5929F | [1] | CAP-DUST | |
| | 141-1576F | [1] | PLUG-CONNECTOR | |
| | F | | NOT SHOWN |
