卡特零件查询（BG-225C） 112-4043: MOUNTING GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
963 次

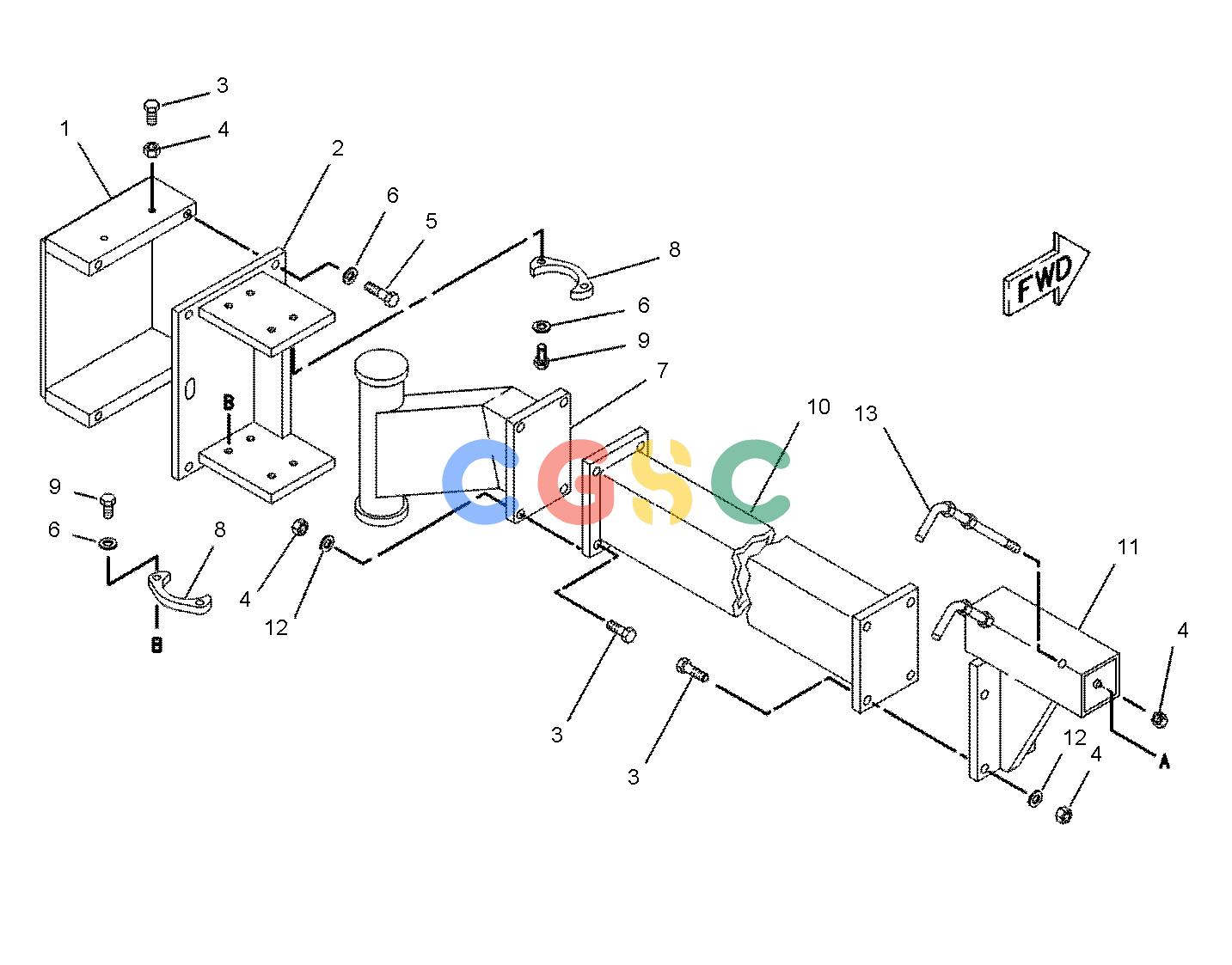

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-0206 | [1] | CLAMP | |
| 2. | 8C-8270 | [1] | BRACKET AS | |
| 3. | 4L-9337 | [10] | BOLT(3/8-16X1.5-IN) | |
| 4. | 6V-8801 | [12] | NUT(3/8-16-THD) | |
| 5. | 5P-2566 | [4] | BOLT(1/2-13X1.5-IN) | |
| 6. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 7. | 133-6089C | [1] | SUPPORT AS | |
| 8. | 8T-4571 | [4] | FLANGE-HALF | |
| 9. | 8T-8917 | [8] | BOLT(1/2-13X1.25-IN) | |
| 10. | 8C-8288 | [1] | EXTENSION | |
| 11. | 8C-8272 | [1] | SUPPORT AS | |
| 12. | 8T-4896 | [8] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 13. | 8C-8273 | [2] | BOLT-SPECIAL | |
| | | | |
| | 7X-0325BF | [4] | BOLT(1/2-13X2.5-IN) | |
| | 258-7504BF | [4] | SPACER | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
