卡特零件查询（BG-225C） 190-2534: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
429 次

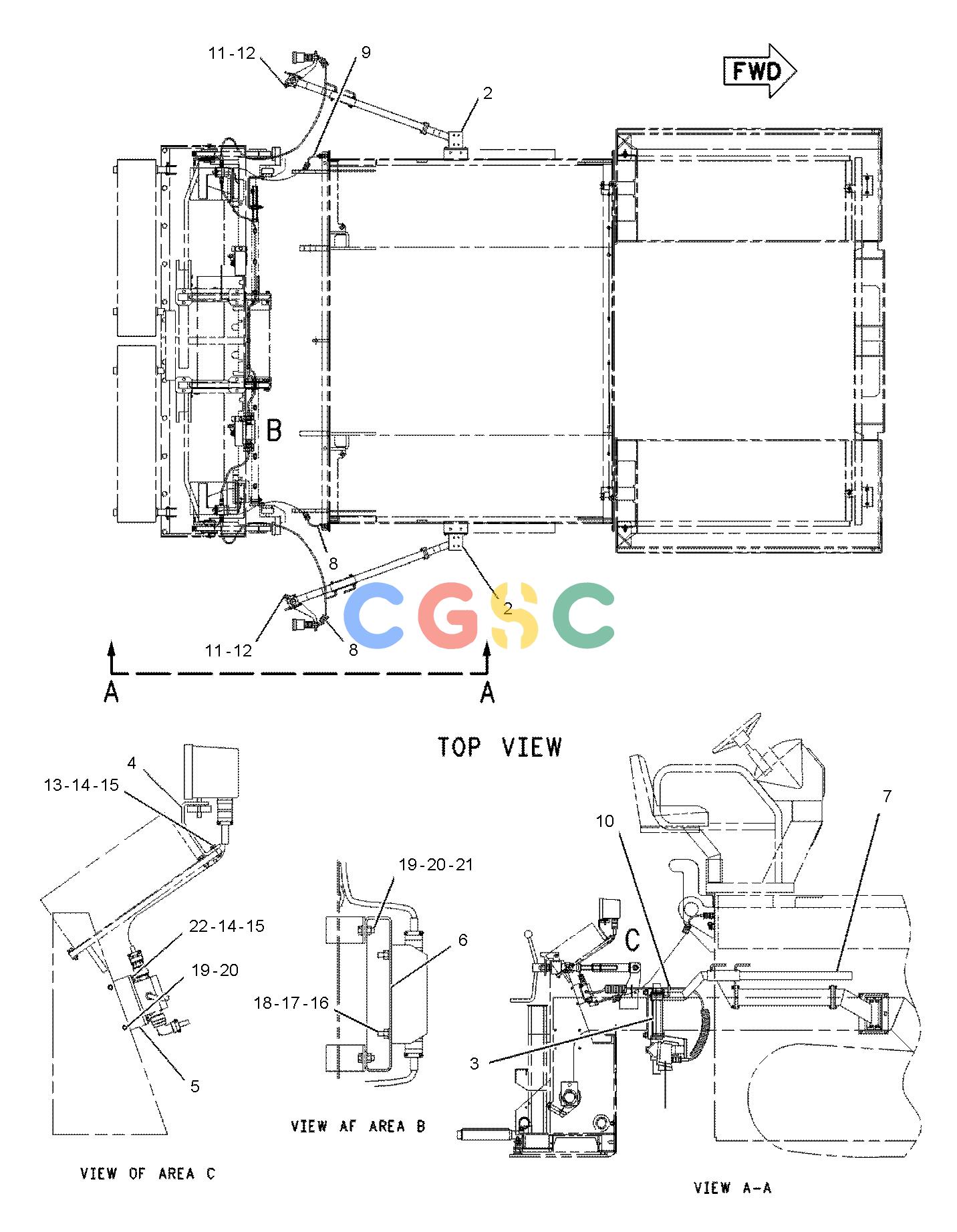

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 109-0409Y | [1] | CONTROL GP-GRADE & SLOPE | |
| 2. | 106-9676Y | [2] | MOUNTING GP-CONTROL | |
| 3. | 109-0176 | [2] | TUBE-CONTROL | |
| 4. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 5. | 7X-2501 | [4] | BOLT(1/4-20X1.25-IN) | |
| 6. | 081-7217 | [1] | SUPPORT | |
| 7. | 8C-7915 | [2] | SUPPORT | |
| 8. | 110-2420Y | [1] | CABLE GP-CONTROL | |
| 9. | 168-6500Y | [2] | CABLE GP-CONTROL | |
| 10. | 8C-7919 | [2] | BOLT(3/8-16X3.75-IN) | |
| 11. | 8C-8842 | [2] | BOLT(3/4-10X4-IN) | |
| 12. | 8T-4994 | [2] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 13. | 8T-8908 | [4] | BOLT(1/4-20X1-IN) | |
| 14. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 15. | 6V-8185 | [8] | NUT(1/4-20-THD) | |
| 16. | 8C-3121 | [4] | BOLT(5/16-18X1.5-IN) | |
| 17. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 18. | 6V-8189 | [4] | NUT(5/16-18-THD) | |
| 19. | 4L-6454 | [6] | BOLT(3/8-16X1-IN) | |
| 20. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | Y | | SEPARATE ILLUSTRATION |
