卡特零件查询（BG-225C） 206-6727: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
554 次

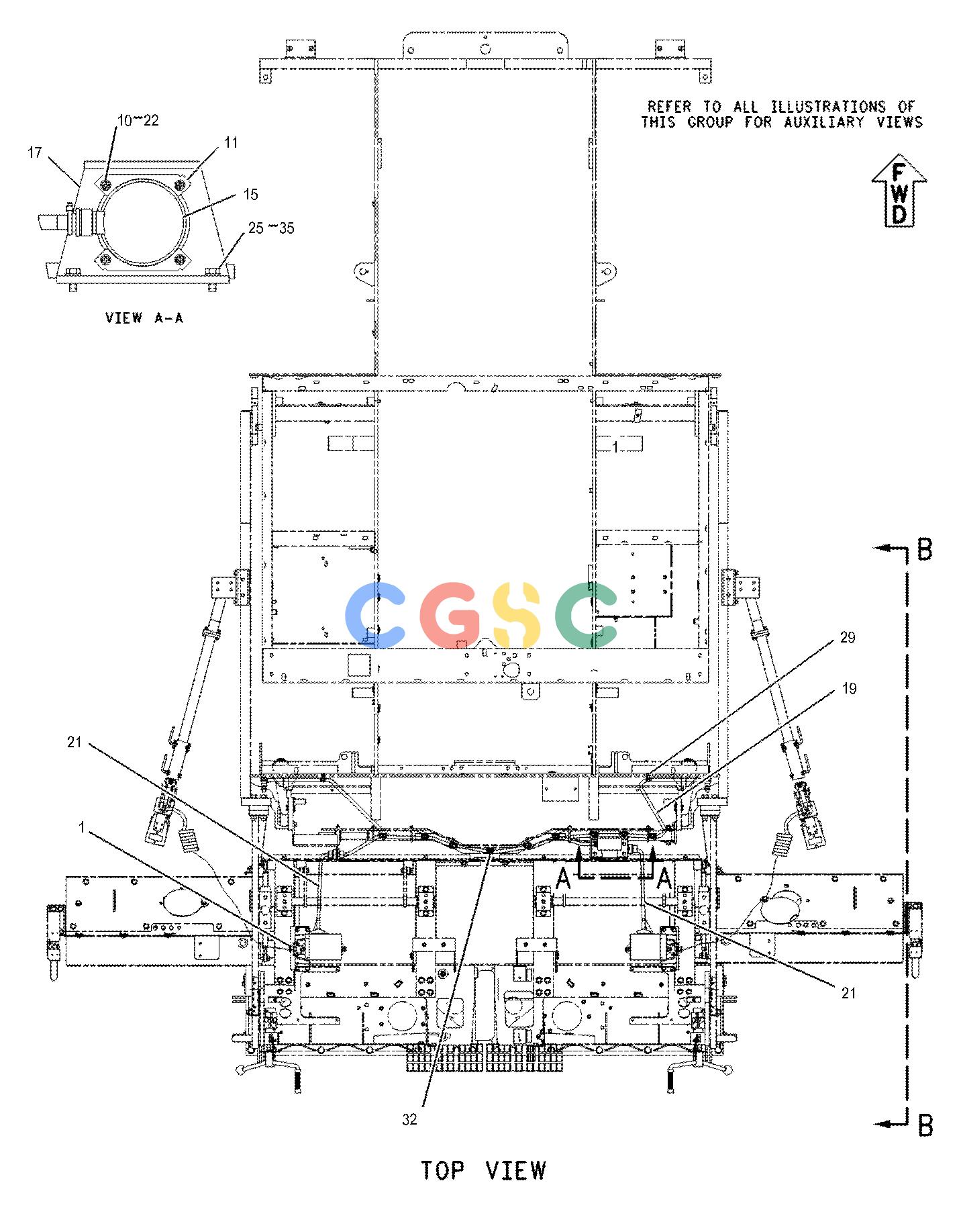

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [5] | STRAP-CABLE | |
| 2. | 6V-2480 | [10] | SCREW(4-40X0.5-IN) | |
| 3. | 8C-8270 | [2] | BRACKET AS | |
| 4. | 8C-8271 | [2] | CLAMP | |
| 5. | 8C-8272 | [2] | SUPPORT AS | |
| | | | (EACH INCLUDES) |
| | 8T-5912 | [4] | NUT-WELD(3/8-16-THD) | |
| 6. | 8C-8273 | [4] | BOLT-SPECIAL | |
| 7. | 8C-8288 | [2] | EXTENSION | |
| 8. | 8T-4571 | [8] | FLANGE-HALF | |
| 9. | 9B-1117 | [18] | LOCKWASHER | |
| 10. | 9X-8486 | [4] | SCREW-MACHINE(8-32X0.75-IN) | |
| 11. | 122-9836 | [2] | BRACKET-MOUNTING | |
| 12. | 130-2985 | [2] | MOUNT AS | |
| 13. | 130-2987 | [2] | PLATE | |
| 14. | 133-6089 | [2] | SUPPORT AS | |
| 15. | 168-5030 | [1] | SENSOR-SLOPE | |
| 16. | 168-5031Y | [2] | CONTROL GP-GRADE & SLOPE | |
| 17. | 189-5761 | [1] | BRACKET | |
| 18. | 192-3287 | [2] | BRACKET | |
| 19. | 203-6072 | [1] | HARNESS AS-CONTROL(GRADE, SLOPE) | |
| | 7K-1181 | [2] | STRAP-CABLE | |
| | 8N-1535 | [2] | BELL AS-END | |
| | 9G-3695 | [16] | PLUG-SEAL | |
| | 9X-4385 | [1] | PLUG AS-CONNECTOR(6-PIN) | |
| | 3T-0204 | [2] | RECEPTACLE AS-CONNECTOR(20-PIN) | |
| 20. | 9B-7237 | [6] | BOLT(3/8-16X1.25-IN) | |
| 21. | 203-6074 | [2] | HARNESS AS-SCREED(GRADE, SLOPE) | |
| | | | (EACH INCLUDES) |
| | 3T-0203 | [1] | PLUG AS-CONNECTOR(20-PIN) | |
| | 7G-7917 | [12] | PLUG-SEAL | |
| | 7K-1181 | [1] | STRAP-CABLE | |
| | 8L-8413 | [1] | STRAP-CABLE(WHITE) | |
| | 8N-1535 | [1] | BELL AS-END | |
| | 9G-3695 | [6] | PLUG-SEAL | |
| | 112-5929 | [1] | CAP-DUST | |
| 22. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 23. | 4L-6454 | [8] | BOLT(3/8-16X1-IN) | |
| 24. | 4L-9337 | [12] | BOLT(3/8-16X1.5-IN) | |
| 25. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 26. | 5P-2675 | [4] | BOLT(1/4-20X1.75-IN) | |
| 27. | 5S-7383 | [8] | BOLT(3/8-16X1.75-IN) | |
| 28. | 6B-4540 | [10] | NUT(4-40-THD) | |
| 29. | 6D-3479 | [2] | CLIP | |
| 30. | 6V-8185 | [12] | NUT(1/4-20-THD) | |
| 31. | 6V-8801 | [30] | NUT(3/8-16-THD) | |
| 32. | 7K-1181 | [10] | STRAP-CABLE | |
| 33. | 8T-4205 | [24] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 34. | 8T-4223 | [24] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 36. | 8T-4896 | [52] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 37. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 38. | 8T-8917 | [24] | BOLT(1/2-13X1.25-IN) | |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
