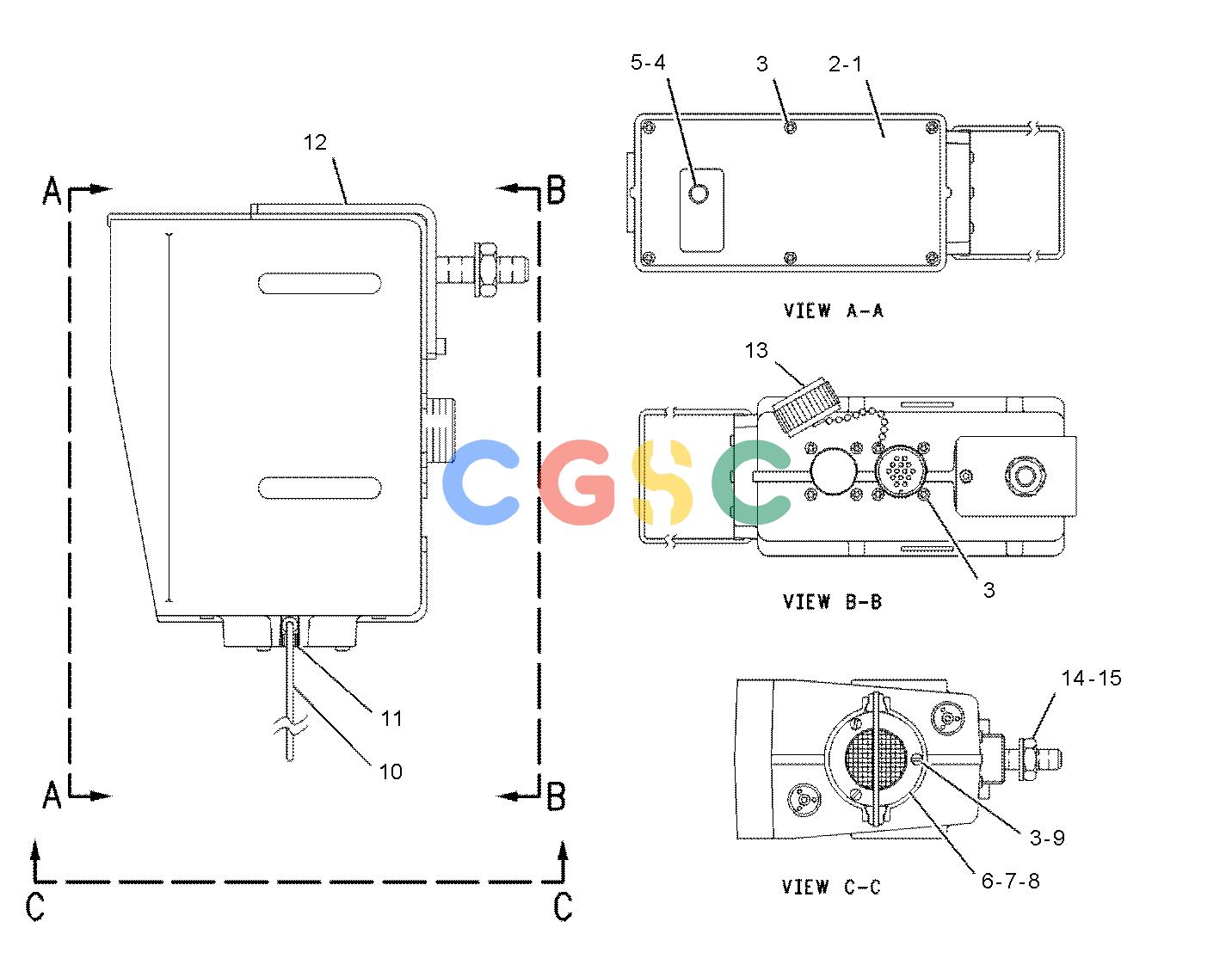

卡特零件查询（BG-225C） 122-0095: SENSOR GP-GRADE
广数供应链运营团队, 16 02月, 2025，浏览：
934 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 142-1316 | [1] | FACEPLATE | |
| 2. | 142-1751 | [1] | GASKET | |
| 3. | 9X-6258 | [17] | SCREW-MACHINE(6-32X0.5-IN) | |
| 4. | 142-1753 | [1] | INDICATOR(GRADE SENSOR) | |
| 5. | 142-1752 | [1] | CAP | |
| 6. | 142-1320 | [1] | TRANSDUCER | |
| 7. | 6V-5391 | [1] | SEAL-O-RING | |
| 8. | 142-1321 | [1] | BRACKET | |
| 9. | 142-1324 | [3] | WASHER | |
| 10. | 142-1318 | [1] | BAIL | |
| 11. | 142-1319 | [2] | INSERT | |
| 12. | 142-1317 | [1] | BRACKET | |
| 13. | 112-5929 | [1] | CAP-DUST | |
| 14. | 6V-8188 | [1] | NUT(1/2-13-THD) | |
| 15. | 5P-8245 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
