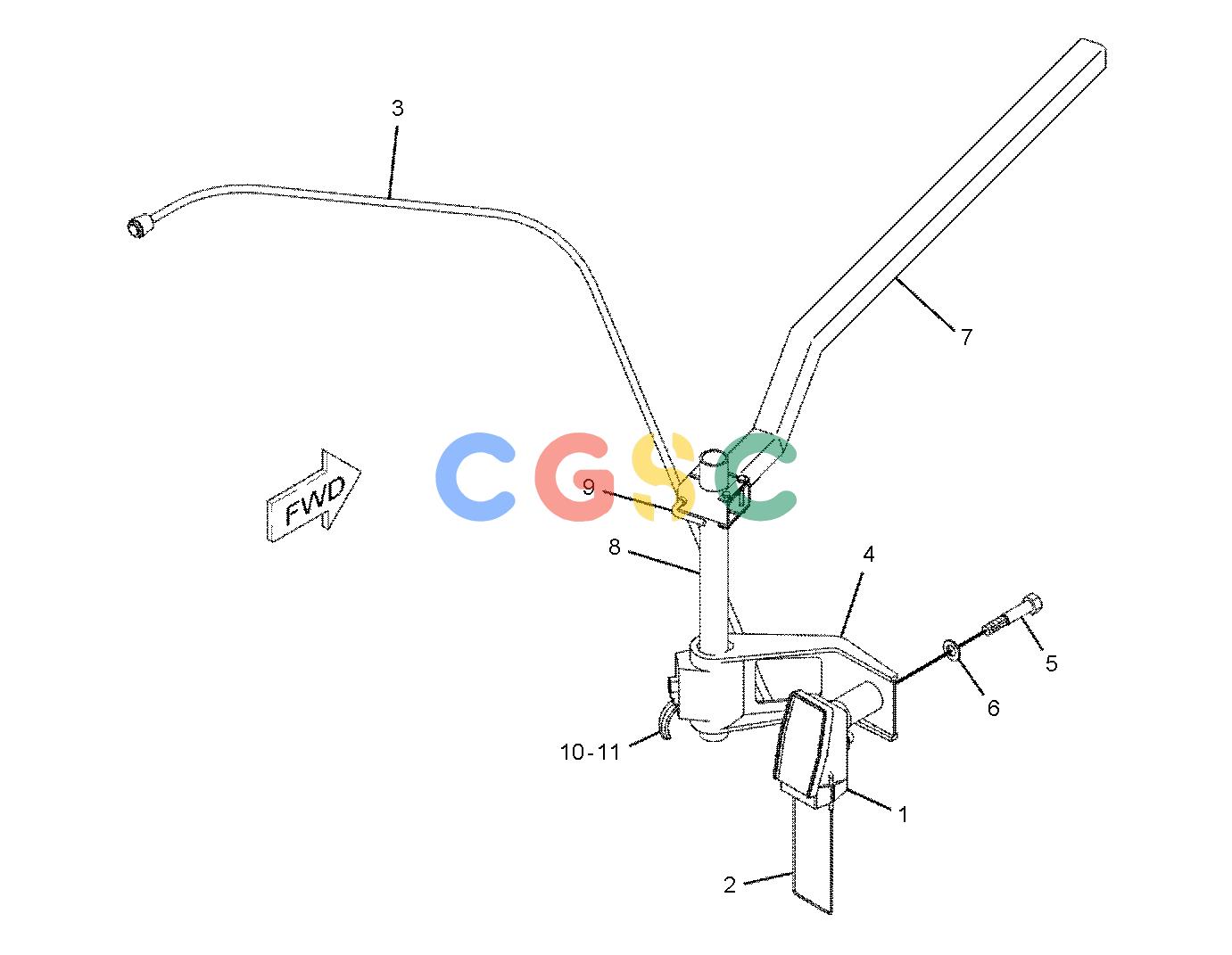

卡特零件查询（BG-225C） 209-3131: SENSOR GP-GRADE
广数供应链运营团队, 16 02月, 2025，浏览：
603 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 108-2408 | [1] | SENSOR GP-GRADE | |
| | 113-1550 | [1] | KIT-TRANSDUCER | |
| | | | (INCLUDES ULTRASONIC TRANSDUCER, TY WRAP, SCREWS, O-RING SEALS & FOAM KIT) |
| | 113-1551 | [1] | KIT-FILTER(FOAM)(GRADE SENSOR) | |
| | | | (INCLUDES FOAMS) |
| 2. | 108-2410 | [1] | BAIL-TEMPERATURE | |
| 3. | 108-2423 | [1] | CABLE AS(GRADE) | |
| | 104-6863 | [1] | CLAMP | |
| | 110-4295 | [1] | PLUG | |
| | 110-4296 | [1] | PLUG | |
| | 110-6863 | [1] | CABLE | |
| | 111-1308 | [2] | BUSHING | |
| | 111-3262 | [2] | NUT(6-32-THD) | |
| | 111-3263 | [2] | NUT(8-32-THD) | |
| | 111-8205 | [1] | BACKSHELL | |
| 4. | 134-9622 | [1] | BRACKET | |
| 5. | 8C-8842 | [1] | BOLT(3/4-10X4-IN) | |
| 6. | 8T-4994 | [1] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 7. | 8C-7915 | [1] | SUPPORT | |
| 8. | 109-0176 | [1] | TUBE-CONTROL | |
| 9. | 8C-7919 | [1] | BOLT(3/8-16X3.75-IN) | |
| 10. | 2N-6170 | [1] | BOLT-SOCKET HEAD(15.88X28.58X63.5-MM) | |
| 11. | 134-9621 | [1] | HANDLE | |
