卡特零件查询（BG-225C） 206-6724: EXTENSION AR-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
234 次

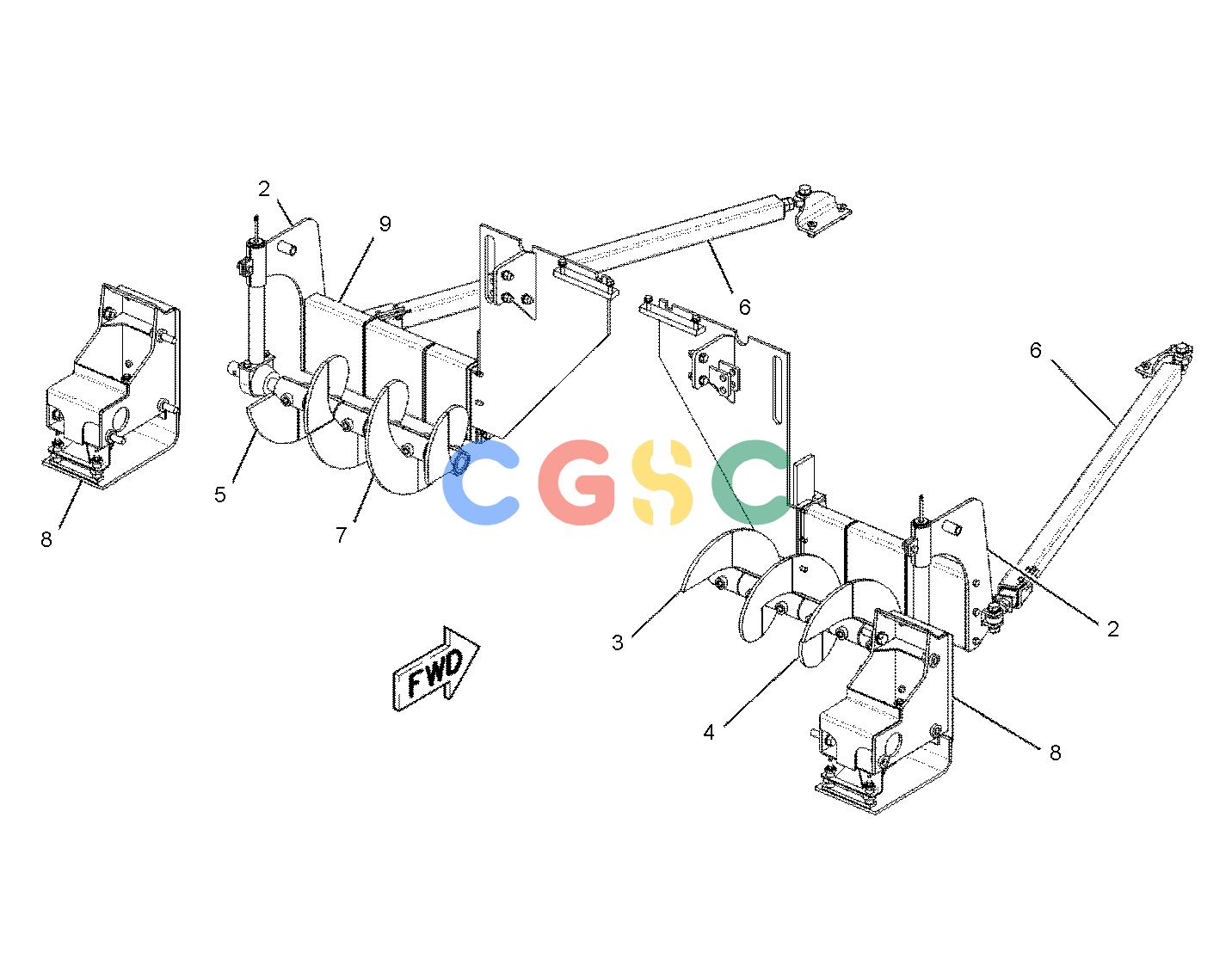

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 186-3637Y | [1] | EXTENSION GP-MAIN FRAME | |
| 2. | 106-9715Y | [2] | EXTENSION GP-MAIN FRAME(2-FT) | |
| 3. | 116-9509Y | [2] | BEARING GP-AUGER | |
| 4. | 5E-9808Y | [1] | EXTENSION GP-AUGER(1-FT, LH) | |
| 5. | 169-5471Y | [2] | SUPPORT GP-FRAME | |
| 6. | 5E-9826Y | [2] | EXTENSION GP-AUGER(2-FT, RH) | |
| 7. | 5E-9825Y | [2] | EXTENSION GP-AUGER(2-FT, LH) | |
| 8. | 5E-9809Y | [1] | EXTENSION GP-AUGER(1-FT, RH) | |
| 9. | 185-5408Y | [2] | EXTENSION GP-SCREED(DIESEL HEAT, 24-IN) | |
| 10. | 106-9714Y | [4] | EXTENSION GP-MAIN FRAME(1-FT) | |
| 11. | 185-5419Y | [2] | EXTENSION GP-SCREED(DIESEL HEAT, 12-IN) | |
| | Y | | SEPARATE ILLUSTRATION |
