卡特零件查询（AP-655C） 217-0739: WIRING GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
232 次

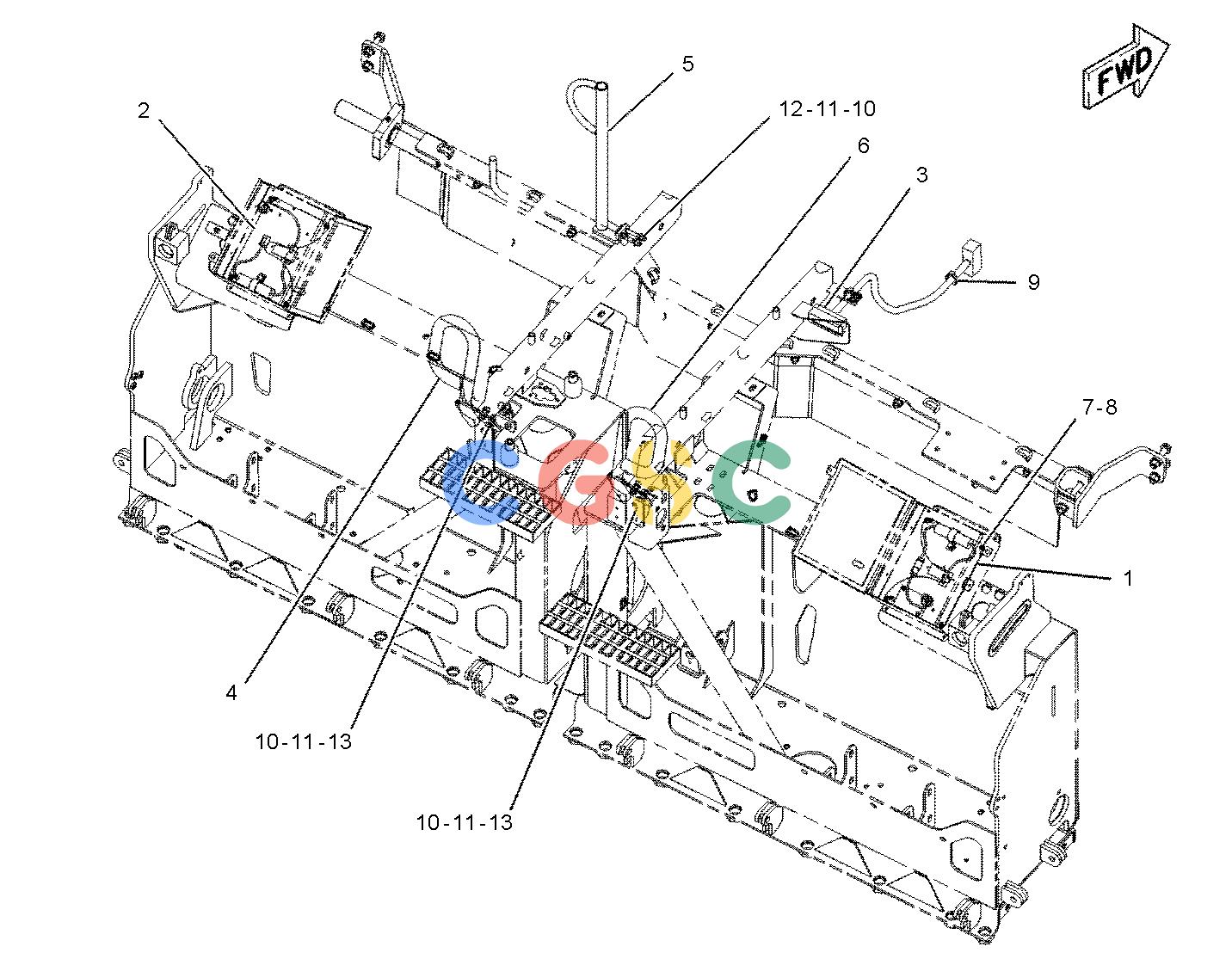

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 196-1298Y | [1] | PANEL GP-ELECTRONIC(RH) | |
| 2. | 196-1299Y | [1] | PANEL GP-ELECTRONIC | |
| 3. | 243-1845 | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| 4. | 231-6672 | [1] | HANDHOLD AS(LH) | |
| 5. | 233-3832 | [1] | SUPPORT AS | |
| 6. | 235-4151 | [1] | HANDHOLD AS(RH) | |
| 7. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 8. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 9. | 7K-1181 | [2] | STRAP-CABLE | |
| 10. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4133M | [10] | NUT(M10X1.5-THD) | |
| 12. | 8T-4172M | [2] | BOLT(M10X1.5X80-MM) | |
| 13. | 8T-4195M | [8] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
