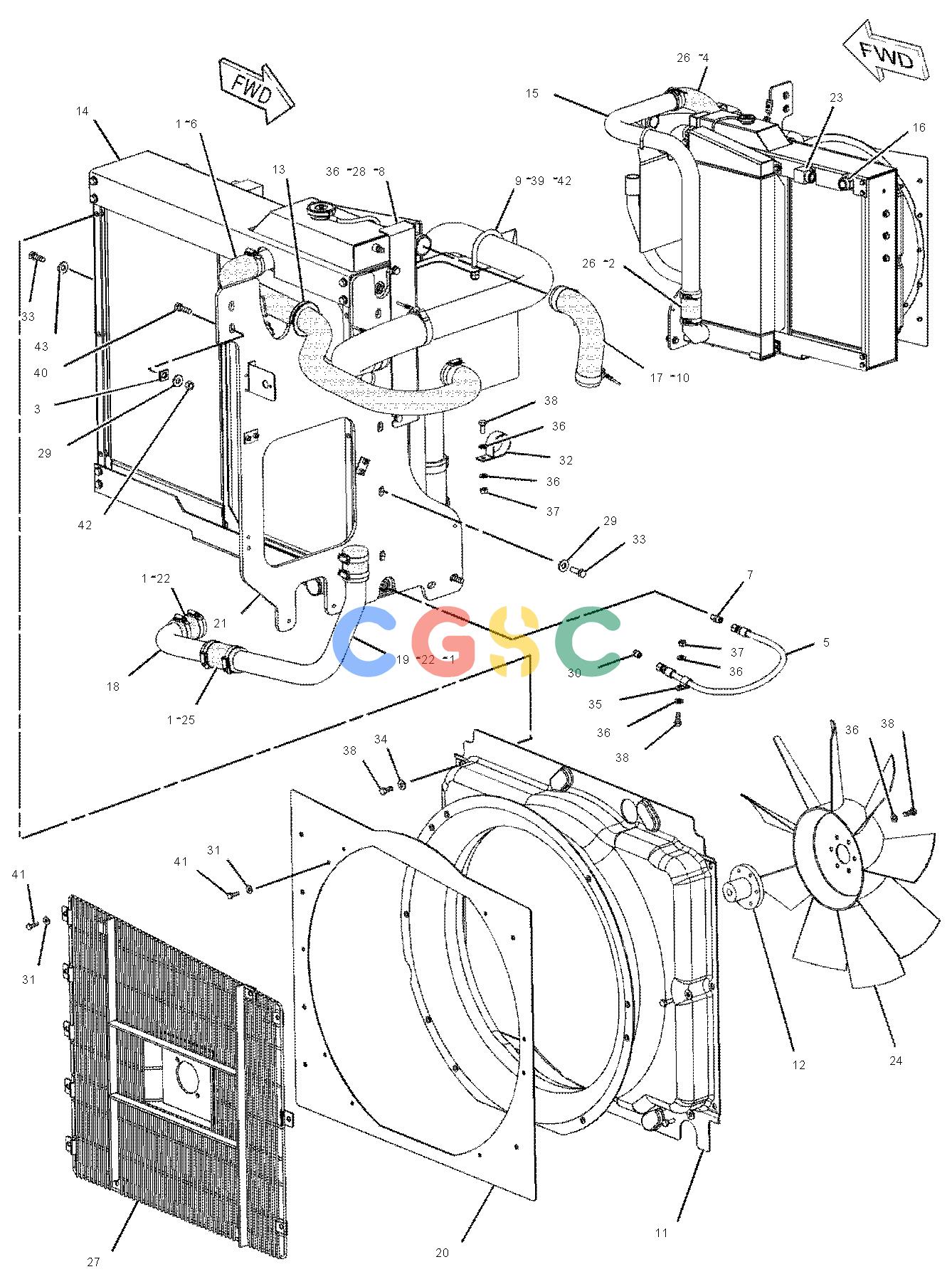

卡特零件查询（AP-655C） 164-8502: RADIATOR & HYD OIL COOLER GP
广数供应链运营团队, 16 02月, 2025，浏览：
181 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-6703 | [8] | CLAMP-HOSE | |
| 2. | 209-6477 | [1] | HOSE | |
| 3. | 6S-9996B | [24] | SHIM(1-MM THK) | |
| 4. | 222-9017 | [1] | HOSE(CHARGE AIR COOLER OUTLET) | |
| 5. | 092-7761I | [1] | HOSE AS | |
| 6. | 222-9864 | [1] | HOSE-RADIATOR(INLET) | |
| 7. | 148-8337 | [1] | CONNECTOR AS | |
| | 8C-6866 | [1] | CONNECTOR | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 8. | 223-2101 | [1] | PLATE | |
| 9. | 132-2155 | [1] | U-BOLT | |
| 10. | 212-6933 | [2] | CLAMP | |
| 11. | 193-5485 | [1] | SHROUD AS-FAN | |
| 12. | 195-6440 | [1] | ADAPTER | |
| 13. | 5P-6887 | [1] | GROMMET | |
| 14. | 222-2617Y | [1] | RADIATOR & HYD OIL COOLER GP | |
| 15. | 222-9016 | [1] | TUBE | |
| 16. | 205-4132 | [1] | CONNECTOR AS | |
| | 8T-8985 | [1] | CONNECTOR | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| 17. | 222-9018 | [1] | HOSE(CHARGE AIR COOL INLET) | |
| 18. | 222-9862 | [1] | TUBE | |
| 19. | 222-9863 | [1] | TUBE | |
| 20. | 215-9210 | [1] | PLATE AS | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| 21. | 223-2100 | [1] | PLATE AS | |
| 22. | 217-0744 | [2] | HOSE | |
| 23. | 228-6387 | [1] | ELBOW AS | |
| | | [1] | ELBOW |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| 24. | 229-1674 | [1] | FAN(9-BLADE) | |
| 25. | 217-2961 | [1] | HOSE | |
| 26. | 209-4580 | [4] | CLAMP-T BOLT | |
| 27. | 217-8702 | [1] | GUARD AS-FAN | |
| 28. | 7X-2621M | [3] | BOLT(M10X1.5X12-MM) | |
| 29. | 5P-1076 | [13] | WASHER-HARD(13.5X30X4-MM THK) | |
| 30. | 216-9206 | [1] | PLUG AS | |
| | 6V-9507 | [1] | PLUG(FACE SEAL) | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 31. | 5P-4116 | [15] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 32. | 5P-4325 | [1] | CLIP(SLOT) | |
| 33. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 34. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 35. | 8M-2773 | [1] | CLIP(LOOP)(LARGE) | |
| 36. | 8T-4121 | [13] | WASHER-HARD(11X21X2.5-MM THK) | |
| 37. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 38. | 8T-4136M | [14] | BOLT(M10X1.5X25-MM) | |
| 39. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 40. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 41. | 8T-4908M | [15] | BOLT(M8X1.25X25-MM) | |
| 42. | 8T-4244M | [8] | NUT(M12X1.75-THD) | |
| 43. | 7X-0618 | [3] | WASHER-HARD(13.5X40X5-MM THK) | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
