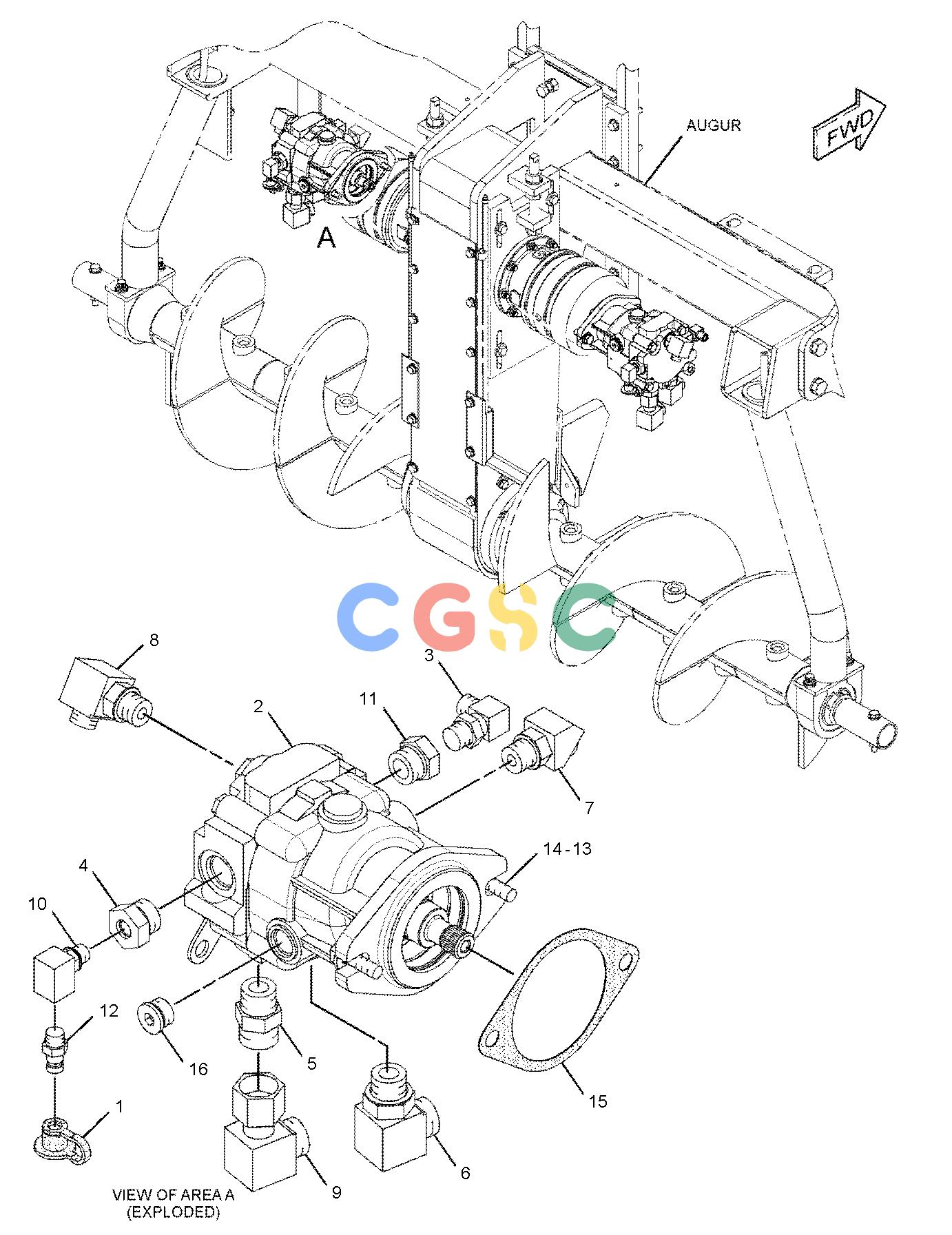

卡特零件查询（AP-655C） 190-9959: MOTOR & MTG GP-AUGER

广数供应链运营团队, 16 02月, 2025，浏览： 964 次

Pos.	Part No	Qty	Parts name
1.	6V-0852	[2]	CAP-DUST
2.	190-8789Y	[2]	MOTOR GP-PISTON(AUGER)
3.	205-0598	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	118-9080	[1]	ELBOW
4.	148-8309	[2]	ADAPTER AS
			(EACH INCLUDES)
	2P-8421	[1]	ADAPTER-O-RING
	3D-2824	[1]	SEAL-O-RING
5.	148-8327	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
6.	148-8347	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
7.	148-8358	[2]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8624	[1]	ELBOW
8.	148-8372	[2]	ELBOW AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8721	[1]	ELBOW
9.	148-8392	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-9746	[1]	SEAL-O-RING
	6V-9853	[1]	ELBOW
10.	150-3065	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-0484	[1]	ELBOW
11.	155-7321	[2]	ADAPTER AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-1722	[1]	ADAPTER
12.	164-5567	[2]	COUPLER AS-QUICK DISCONNECT(MALE)
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
13.	8T-4223	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
14.	8T-4956M	[4]	BOLT(M12X1.75X35-MM)
15.	9H-8872	[2]	GASKET
16.	164-5619	[2]	PLUG AS
			(EACH INCLUDES)
	2M-9780	[1]	SEAL-O-RING
	9S-8006	[1]	PLUG(7/8-14-THD)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
