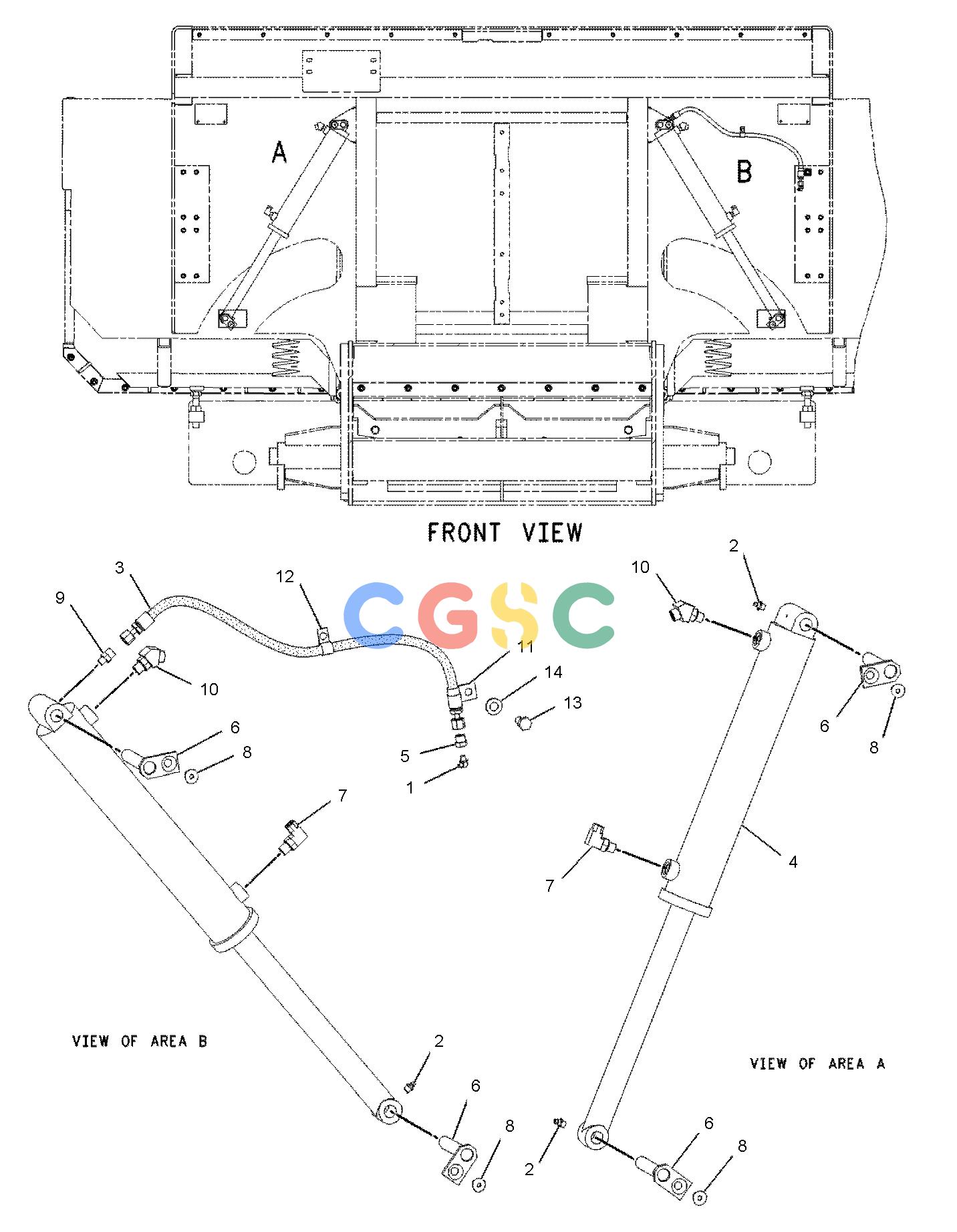

卡特零件查询（AP-655C） 190-8795: CYLINDER & MTG GP-HOPPER
广数供应链运营团队, 16 02月, 2025，浏览：
652 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [1] | FITTING-GREASE(1/8-27 PTF)(1/8-27 THD) | |
| 2. | 3B-8489 | [3] | FITTING-GREASE(1/8-27 PTF)(1/8-27 THD) | |
| 3. | 092-7761I | [1] | HOSE AS | |
| 4. | 135-0220Y | [2] | CYLINDER GP-HYDRAULIC(HOPPER) | |
| 5. | 171-6727 | [1] | ADAPTER AS | |
| | 8T-4128 | [1] | ADAPTER | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 6. | 195-3190 | [4] | PIN AS | |
| 7. | 205-7200 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 108-2144 | [1] | ELBOW | |
| 8. | 127-2909M | [4] | SCREW-FLAT HEAD(M10X1.5X20-MM) | |
| 9. | 148-8320 | [1] | CONNECTOR AS | |
| | 8C-6865 | [1] | CONNECTOR | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 10. | 148-8353 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 11. | 6D-3479 | [1] | CLIP | |
| 12. | 8M-2770 | [1] | CLIP(LOOP) | |
| 13. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 14. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
