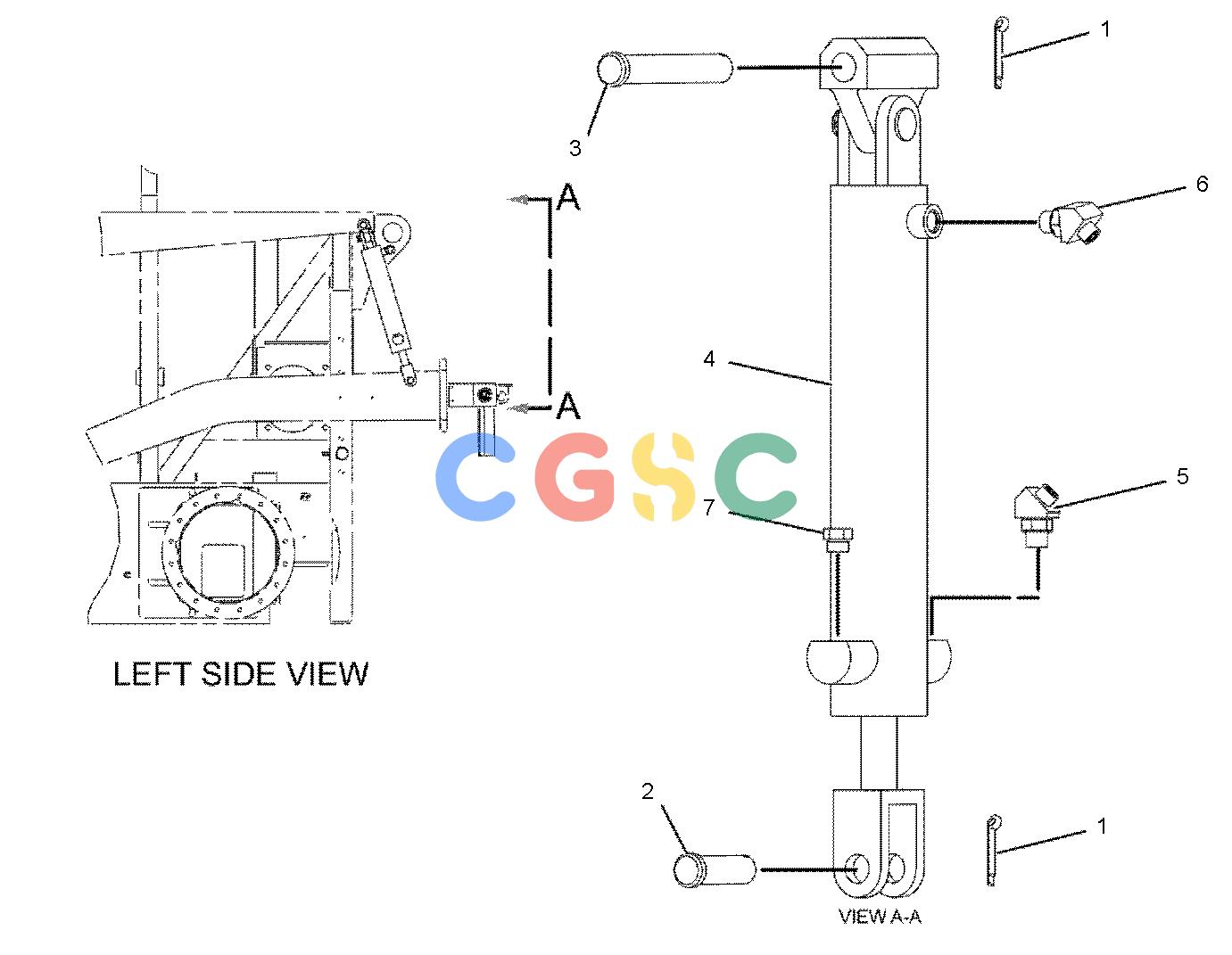

卡特零件查询（AP-655C） 190-8796: CYLINDER & MTG GP-SCREED HOIST
广数供应链运营团队, 16 02月, 2025，浏览：
994 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-4629 | [4] | PIN-COTTER | |
| 2. | 173-3651 | [2] | PIN-CLEVIS | |
| 3. | 196-0352 | [2] | PIN-CLEVIS | |
| 4. | 216-0185Y | [2] | CYLINDER GP-HYDRAULIC(TOW POINT) | |
| 5. | 218-3267 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | | [1] | ELBOW |
| 6. | 148-8363 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 7. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
