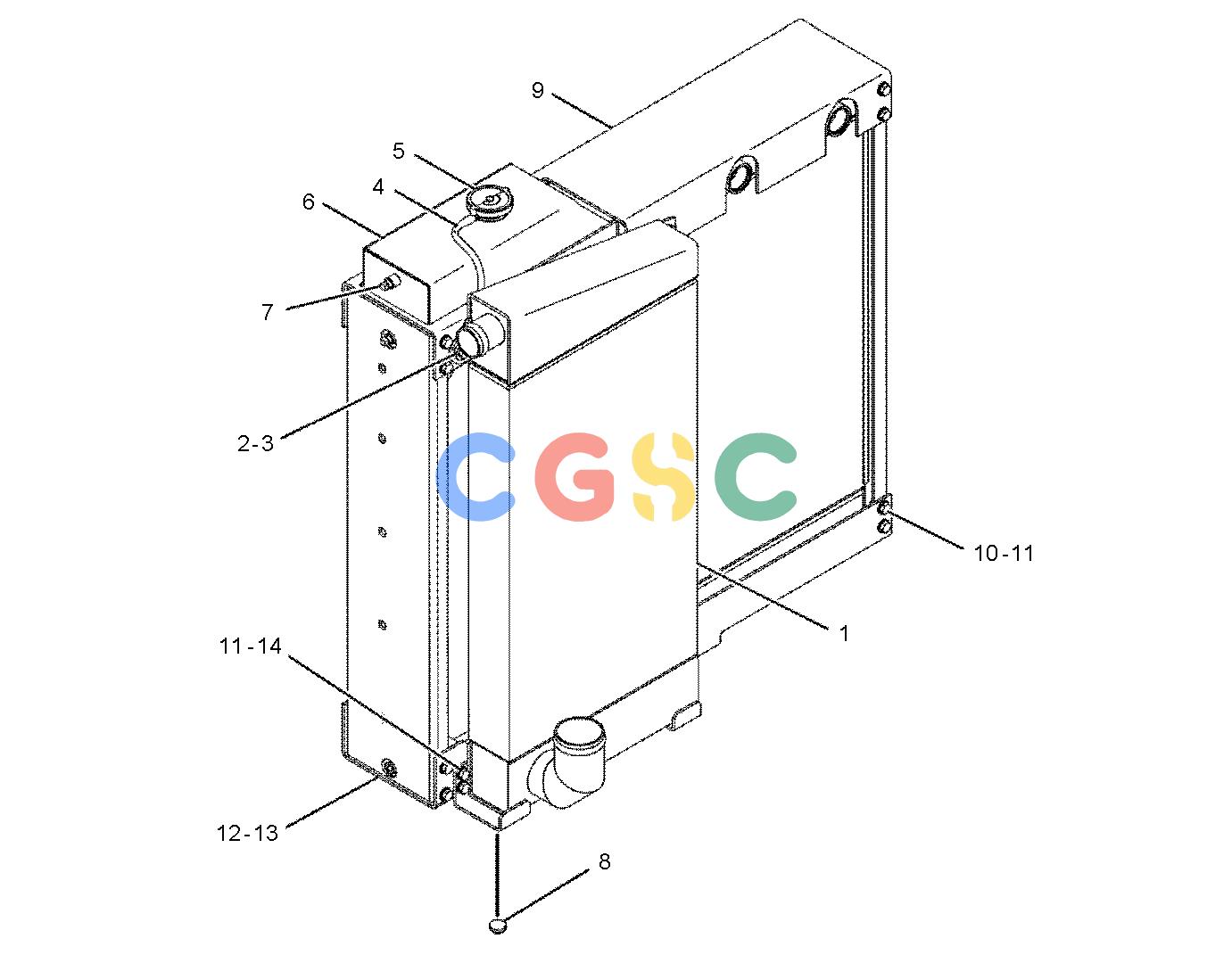

卡特零件查询（AP-655C） 222-2617: RADIATOR & HYD OIL COOLER GP
广数供应链运营团队, 16 02月, 2025，浏览：
599 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 232-6678 | [1] | COOLER AS-AIR | |
| 2. | 232-6682 | [4] | SLEEVE-RUBBER | |
| 3. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 4. | 5P-1465E | | HOSE(115-CM) | |
| 5. | 031-1119 | [1] | CAP AS-RADIATOR(FILLER) | |
| 6. | 232-6676 | [1] | RADIATOR AS | |
| 7. | 2B-7409 | [2] | PLUG-PIPE | |
| 8. | 232-6681 | [11] | BUTTON | |
| 9. | 232-6677 | [1] | COOLER AS-HYDRAULIC OIL | |
| 10. | 8T-4137M | [16] | BOLT(M10X1.5X20-MM) | |
| 11. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 232-6679 | [1] | STRIP-RUBBER(76.2MMX419.1MMX6.35MM THK) | |
| 13. | 232-6680 | [1] | STRIP-RUBBER(76.2MMX508MMX6.35MM THK) | |
| 14. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
