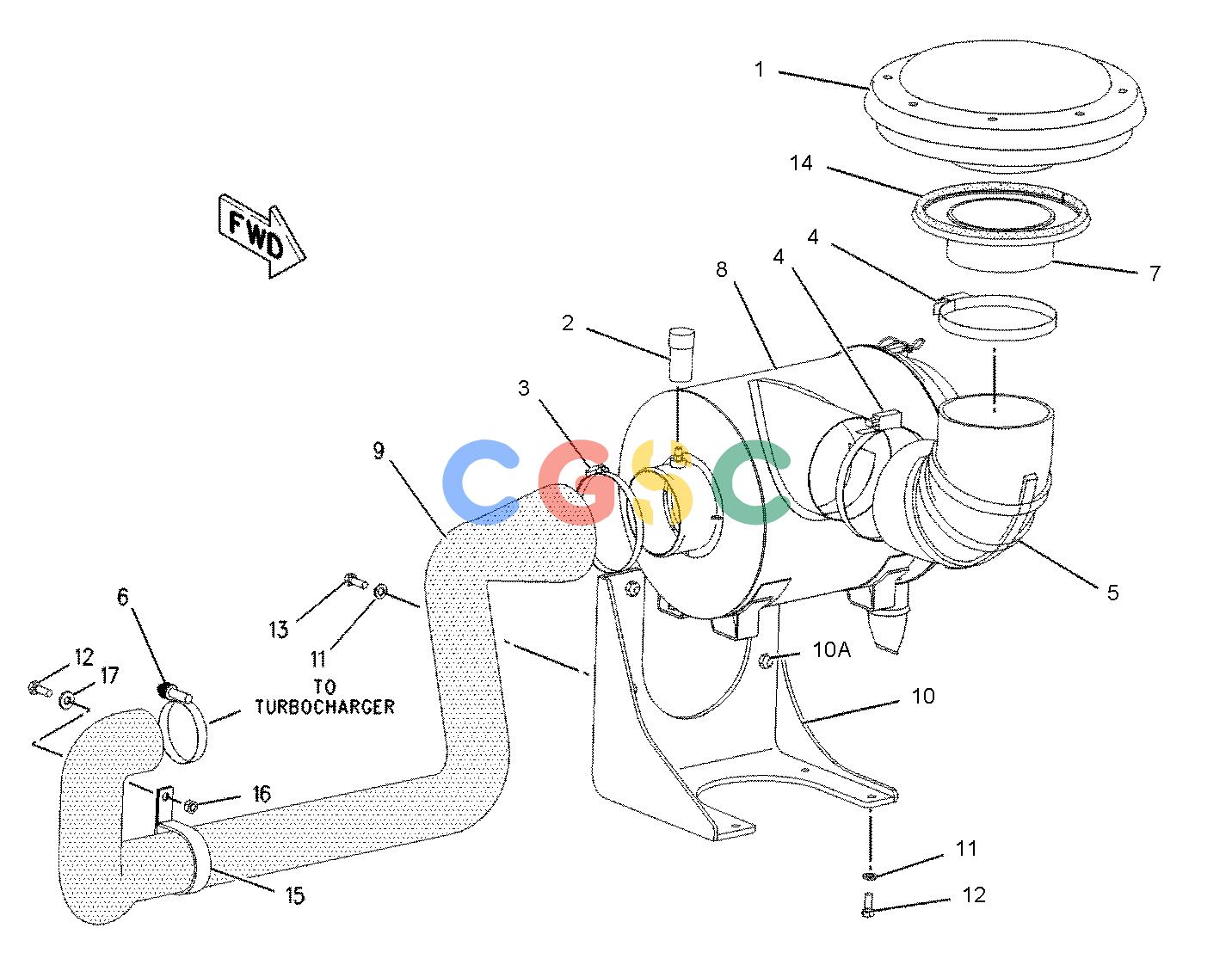

卡特零件查询（AP-655C） 164-8500: AIR CLEANER GP
广数供应链运营团队, 16 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-9937 | [1] | CAP AS-AIR CLEANER | |
| 2. | 1W-0613 | [1] | INDICATOR AS-AIR FILTER CHANGE(SERVICE) | |
| 3. | 5P-0599 | [1] | CLAMP-BAND | |
| 4. | 5P-3860 | [2] | CLAMP-HOSE | |
| 5. | 6T-6158 | [1] | ELBOW | |
| 6. | 144-0367 | [1] | CLAMP-HOSE | |
| 7. | 171-6993 | [1] | TUBE AS | |
| 8. | 172-0993Y | [1] | AIR CLEANER GP | |
| 9. | 195-0264 | [1] | HOSE-AIR INLET | |
| 10. | 217-7201 | [1] | BRACKET AS | |
| 10A. | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 11. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [5] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 14. | 8T-9007E | | SEAL(79-CM) | |
| 15. | 127-4837 | [1] | CLIP | |
| 16. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 17. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
