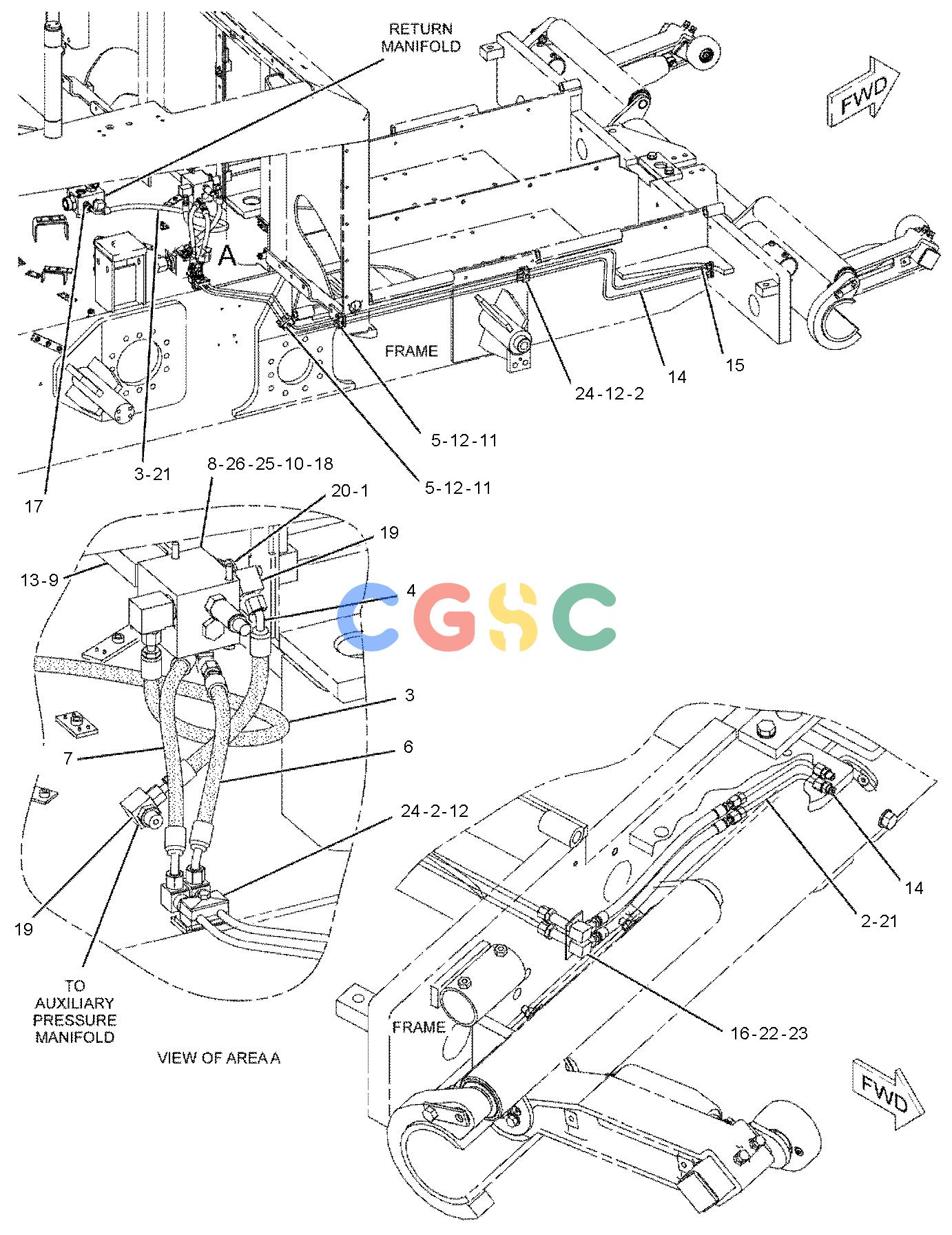

卡特零件查询（AP-655C） 234-4395: LINES GP-HITCH
广数供应链运营团队, 16 02月, 2025，浏览：
675 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 102-8703 | [2] | PLATE-COVER | |
| 3. | 149-3212I | [1] | HOSE AS | |
| 4. | 154-2854I | [1] | HOSE AS | |
| 5. | 154-4890M | [2] | BOLT-STACKING(M8X1.25X33-MM) | |
| 6. | 155-3677I | [1] | HOSE AS | |
| 7. | 169-7451I | [1] | HOSE AS | |
| 8. | 190-8794Y | [1] | VALVE GP-CONTROL(TRUCK HITCH) | |
| 9. | 203-6605 | [2] | SEAL | |
| 10. | 205-3692 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 11. | 206-0452 | [2] | PLATE | |
| 12. | 206-6409 | [8] | CLAMP-HALF | |
| 13. | 222-9003 | [1] | HARNESS AS-SOLENOID(TRUCK HITCH) | |
| 14. | 223-5557 | [1] | TUBE AS | |
| 15. | 223-5558 | [1] | TUBE AS | |
| 16. | | [2] | ELBOW AS |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2195 | [1] | ELBOW | |
| 17. | 148-8318 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 18. | 148-8361 | [2] | ELBOW AS(90-DEG) | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 19. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 20. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 21. | 6V-8397 | [2] | SEAL-O-RING | |
| 22. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 23. | 6V-9829 | [2] | CAP(ORFS) | |
| 24. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 25. | 7X-2539M | [2] | BOLT(M8X1.25X110-MM) | |
| 26. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
