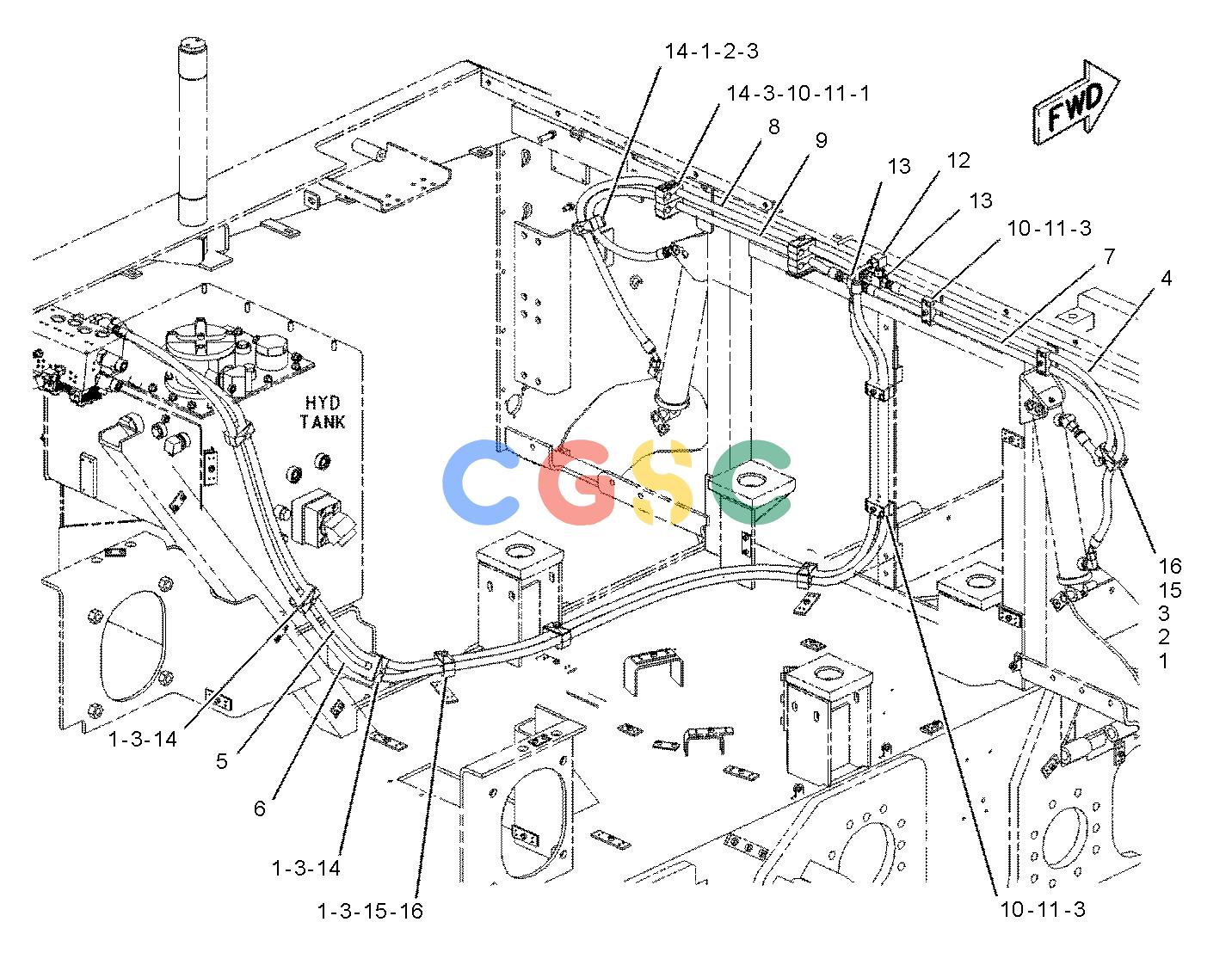

卡特零件查询（AP-655C） 198-6161: LINES GP-HOPPER
广数供应链运营团队, 16 02月, 2025，浏览：
803 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8705 | [10] | PLATE(TOP) | |
| 2. | 102-8706 | [2] | PLATE AS | |
| 3. | 154-4881 | [32] | CLAMP-HALF | |
| 4. | 171-4900I | [1] | HOSE AS | |
| 5. | 204-3488I | [1] | HOSE AS | |
| 6. | 204-3495I | [1] | HOSE AS | |
| 7. | 204-4409I | [1] | HOSE AS | |
| 8. | 204-4410I | [1] | HOSE AS | |
| 9. | 204-4411I | [1] | HOSE AS | |
| 10. | 206-0451M | [6] | BOLT-STACKING(M8X1.25X44-MM) | |
| 11. | 206-0452 | [6] | PLATE | |
| 12. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 13. | 150-3056 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [3] | SEAL-O-RING | |
| | 6V-8788 | [1] | TEE | |
| 14. | 7X-0818M | [8] | BOLT(M8X1.25X45-MM) | |
| 15. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 8T-6912M | [2] | BOLT(M8X1.25X50-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
