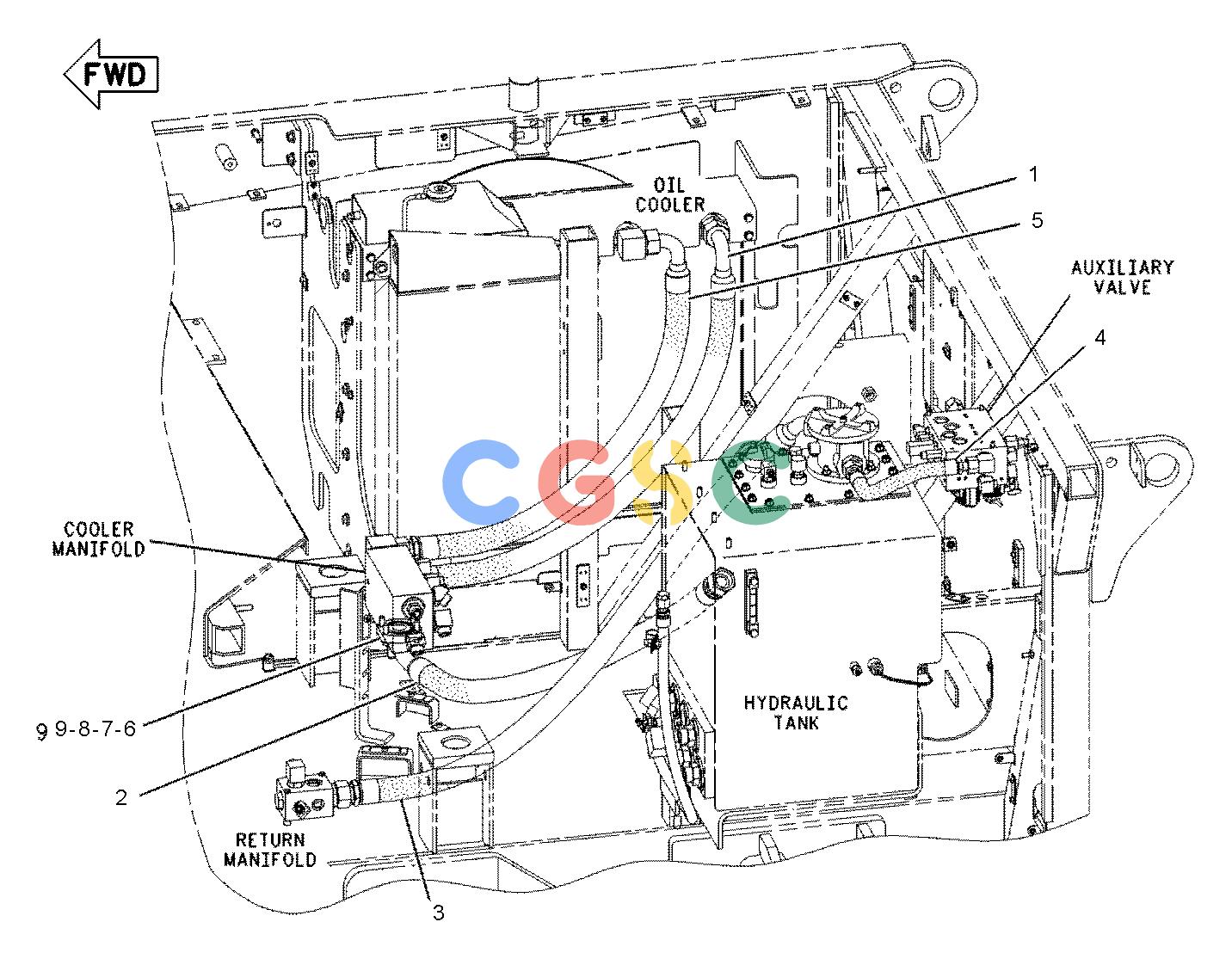

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 204-4315I | [1] | HOSE AS | |
| 2. | 204-4370I | [1] | HOSE AS | |
| 3. | 204-4374I | [1] | HOSE AS | |
| 4. | 217-4591I | [1] | HOSE AS | |
| 5. | 229-1668I | [1] | HOSE AS | |
| 6. | 1P-4582 | [2] | FLANGE-HALF | |
| 7. | 4J-0527 | [1] | SEAL-O-RING | |
| 8. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 9. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
