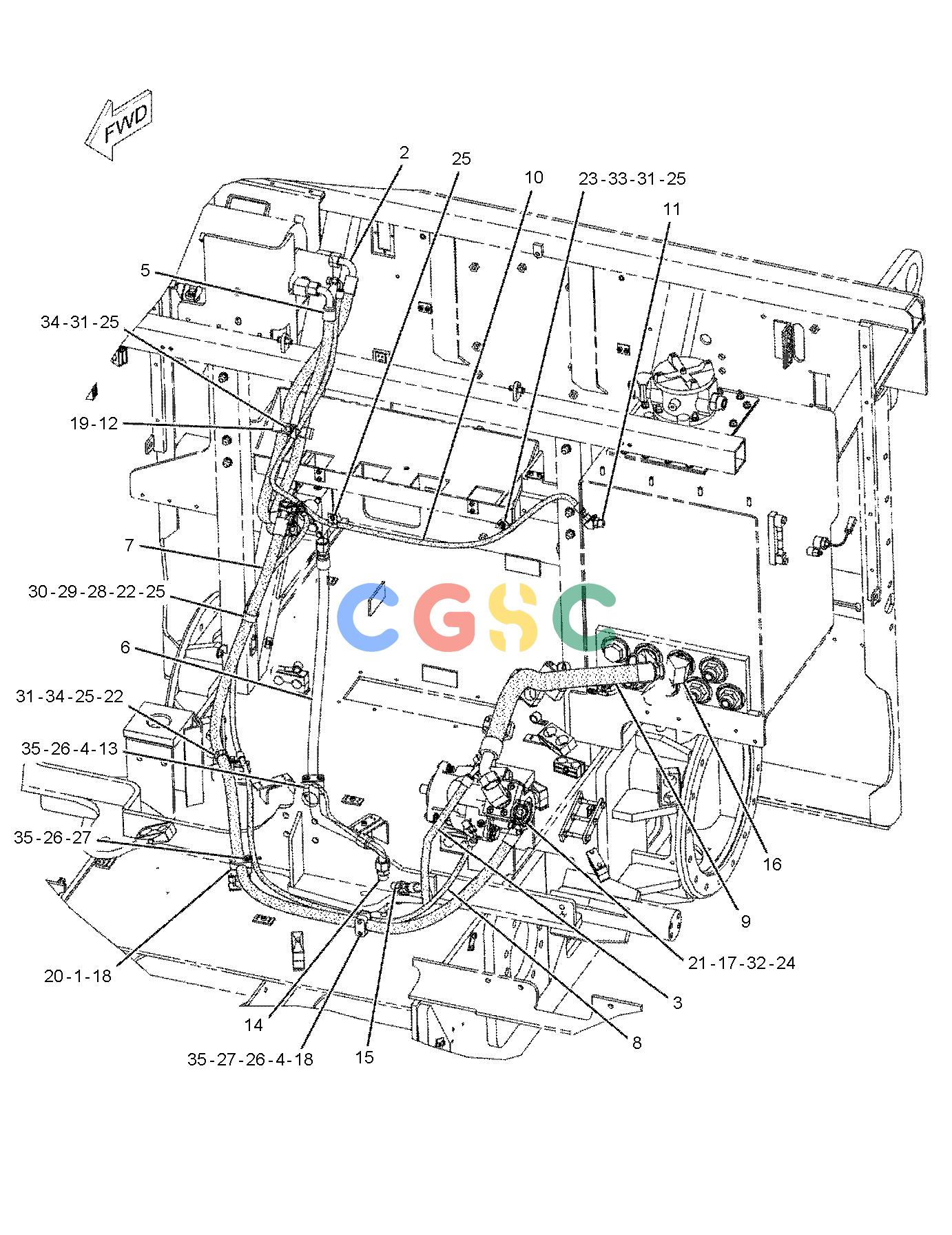

卡特零件查询（AP-655C） 198-6167: LINES GP-HYDRAULIC GENERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
585 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 207-2387 | [1] | PLATE | |
| 2. | 8W-5059I | [1] | HOSE AS | |
| 3. | 106-0379I | [1] | HOSE AS | |
| 4. | 143-9644 | [2] | PLATE-RETAINER | |
| 5. | 145-7354I | [1] | HOSE AS | |
| 6. | 190-2537I | [1] | HOSE AS | |
| 7. | 204-4272I | [1] | HOSE AS | |
| 8. | 204-4273I | [1] | HOSE AS | |
| 9. | 204-4422I | [1] | HOSE AS | |
| 10. | 204-6513I | [1] | HOSE AS | |
| 11. | 205-4134 | [1] | ELBOW AS | |
| 12. | 207-4499 | [1] | PLATE-COVER | |
| 13. | 139-0428 | [2] | CLAMP | |
| 14. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 15. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 16. | 153-6238 | [1] | ELBOW AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 6V-8400 | [1] | SEAL-O-RING | |
| | 6V-9006 | [1] | ELBOW | |
| 17. | 1P-4577 | [2] | FLANGE-HALF | |
| 18. | 206-1511 | [4] | CLAMP-HALF | |
| 19. | 206-6413 | [2] | CLAMP-HALF | |
| 20. | 207-2386M | [2] | BOLT-STACKING(M6X1.25X49-MM) | |
| 21. | 4J-0520 | [1] | SEAL-O-RING | |
| 22. | 4S-4455 | [2] | CLIP | |
| 23. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 24. | 5S-7382 | [4] | BOLT(3/8-16X1.375-IN) | |
| 25. | 6D-3479 | [5] | CLIP | |
| 26. | 7X-2534M | [5] | BOLT(M6X1X50-MM) | |
| 27. | 8J-1256 | [2] | CLIP | |
| 28. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 29. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 30. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 31. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 32. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 33. | 8T-4908M | [1] | BOLT(M8X1.25X25-MM) | |
| 34. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 35. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
