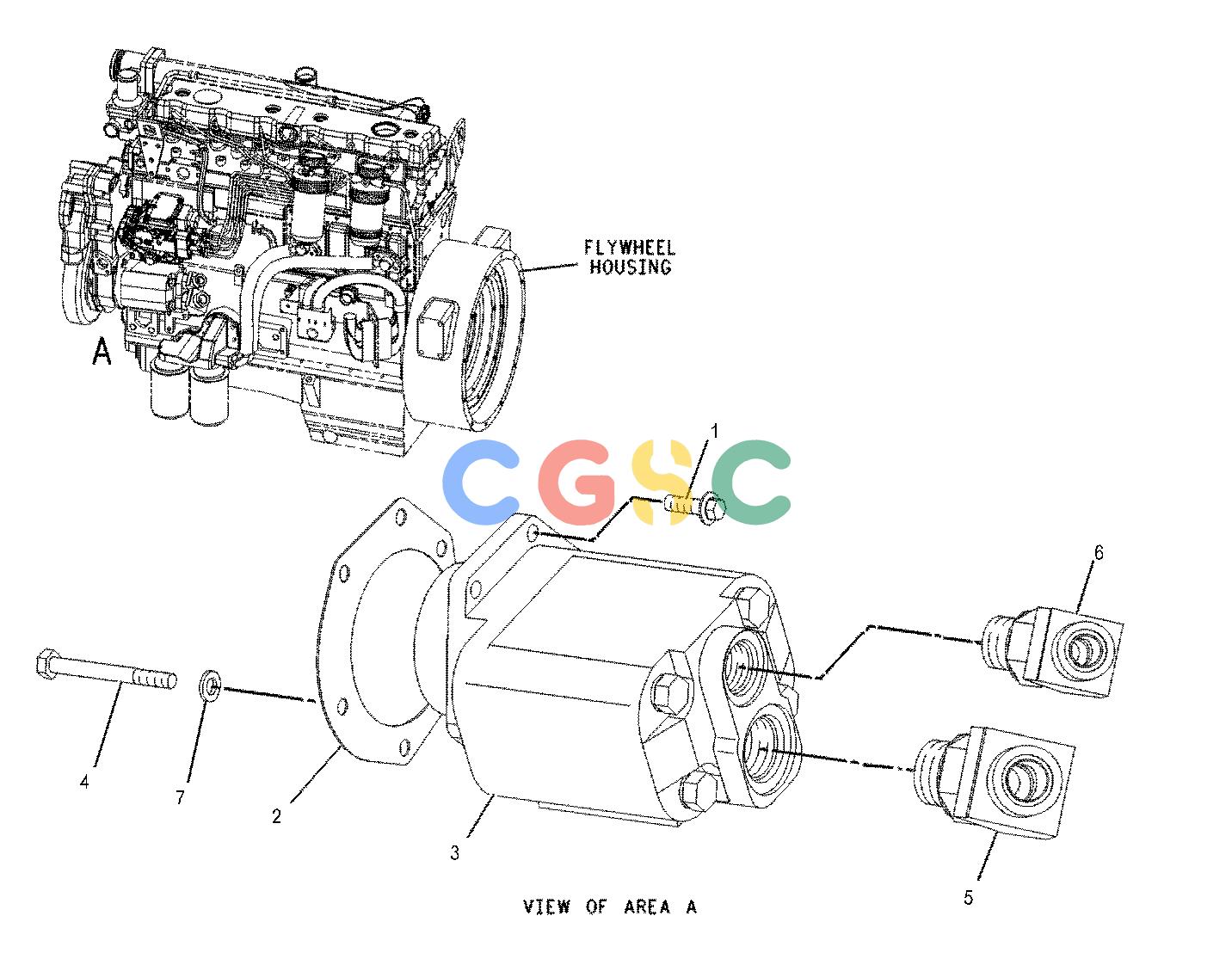

卡特零件查询（AP-655C） 190-9955: PUMP & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0260M | [5] | BOLT(M8X1.25X25-MM) | |
| 2. | 9Y-9380 | [1] | GASKET | |
| 3. | 218-4361Y | [1] | PUMP GP-GEAR(HYDRAULIC FAN) | |
| 4. | 096-5866M | [1] | BOLT(M8X1.25X75-MM) | |
| 5. | 148-8355 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9005 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 6. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 7. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
