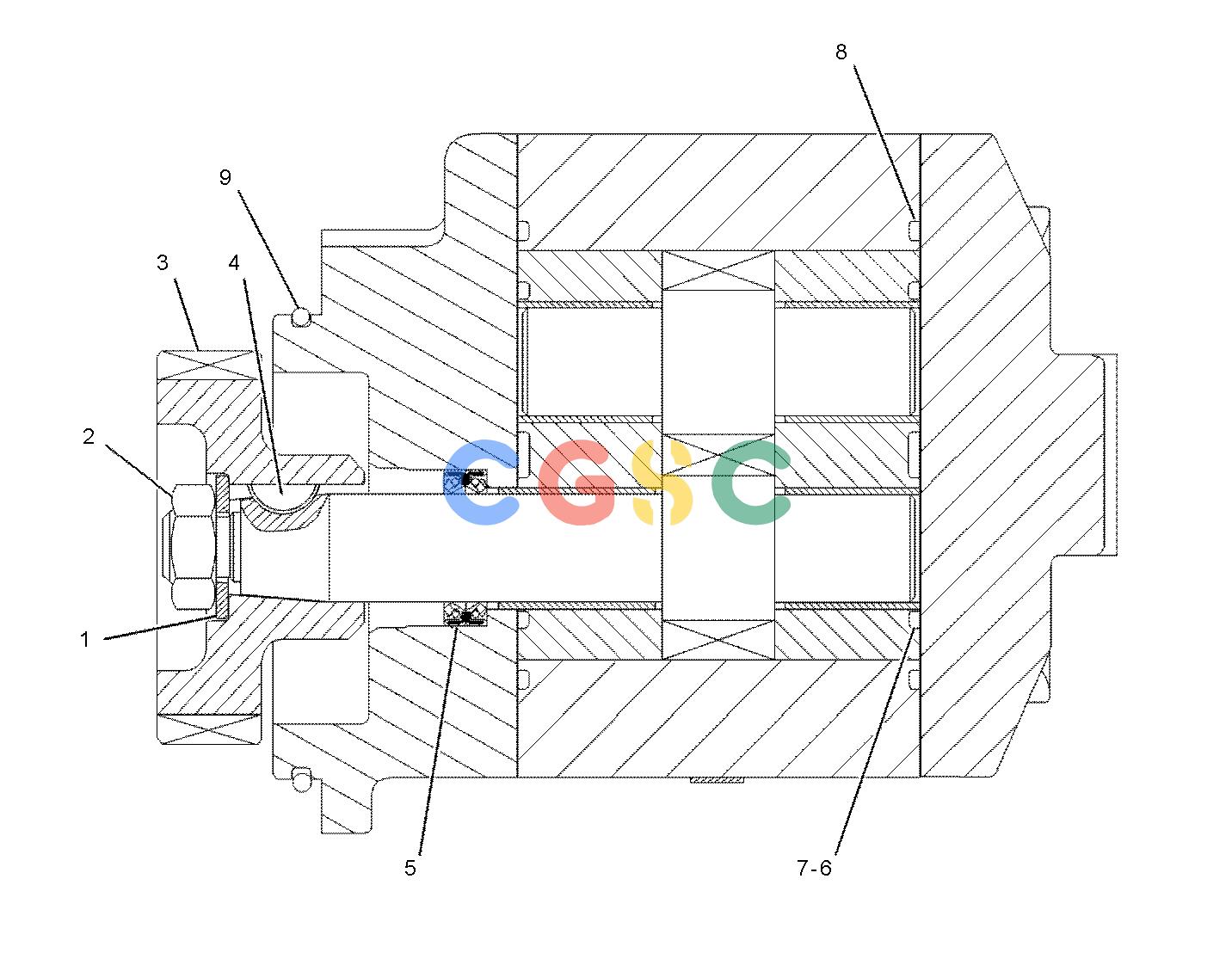

卡特零件查询（AP-655C） 218-4361: PUMP GP-GEAR
广数供应链运营团队, 16 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-8246H | [1] | WASHER-HARD(15.5X29X3-MM THK) | |
| 2. | 068-0809H | [1] | NUT-ELASTIC STOP(9/16-18-THD) | |
| 3. | HZ | [1] | GEAR(33-TEETH) |
| 4. | 1B-8705H | [1] | KEY-WOODRUFF | |
| 5. | JZ | [2] | SEAL-LIP |
| 6. | JZ | [2] | SEAL-RUBBER |
| 7. | JZ | [2] | SEAL-RUBBER |
| 8. | JZ | [2] | SEAL-O-RING |
| 9. | 194-7151H | [1] | SEAL-O-RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 211-0905J | [1] | KIT-SEAL(HYDRAULIC FAN PUMP) | |
| | 232-3592H | [1] | KIT-GEAR(HYDRAULIC FAN PUMP) | |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | Z | | NOT SERVICED SEPARATELY |
