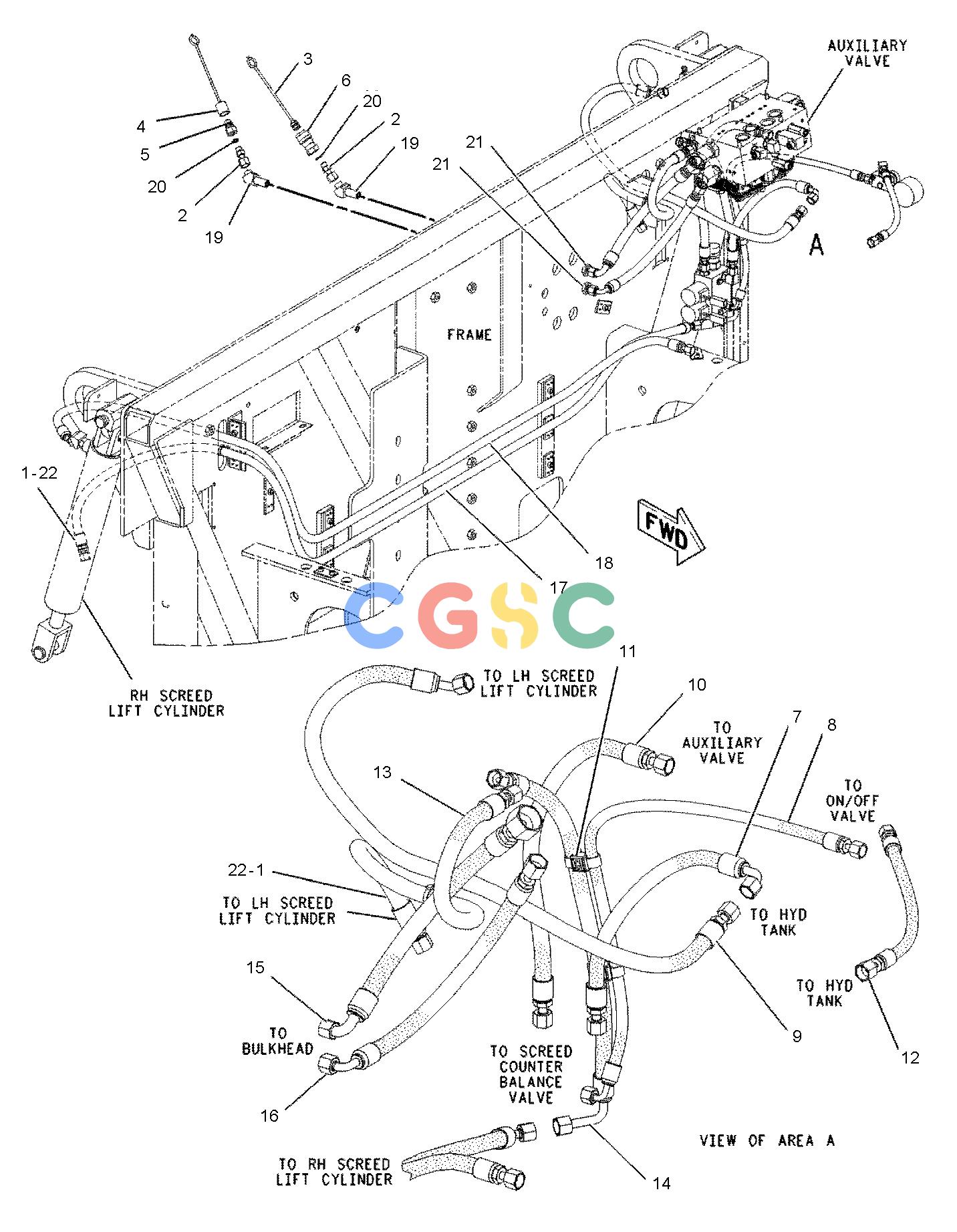

卡特零件查询（AP-655C） 198-6159: LINES GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
711 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [4] | STRAP-CABLE | |
| 2. | 5E-8837 | [2] | ADAPTER | |
| 3. | 5R-5676 | [1] | PLUG-DUST | |
| 4. | 5R-5677 | [1] | CAP-DUST(DUST) | |
| 5. | 5R-6867 | [1] | COUPLER AS-QUICK DISCONNECT(MALE)(MALE) | |
| 6. | 5R-6868 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE)(FEMALE) | |
| 7. | 104-8623I | [1] | HOSE AS | |
| 8. | 109-5076I | [1] | HOSE AS | |
| 9. | 154-4149I | [1] | HOSE AS | |
| 10. | 155-0109I | [1] | HOSE AS | |
| 11. | 177-2215 | [2] | STRAP-DUAL CLAMP(DUAL CLAMP) | |
| 12. | 195-1099I | [1] | HOSE AS | |
| 13. | 204-3479I | [1] | HOSE AS | |
| 14. | 204-3481I | [1] | HOSE AS | |
| 15. | 204-3521I | [1] | HOSE AS | |
| 16. | 204-3525I | [1] | HOSE AS | |
| 17. | 204-4253I | [1] | HOSE AS | |
| 18. | 204-4420I | [1] | HOSE AS | |
| 19. | 148-8366 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8987 | [1] | ELBOW | |
| 20. | 3J-1907 | [2] | SEAL-O-RING | |
| 21. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 22. | 154-1420BE | | SLEEVE | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
