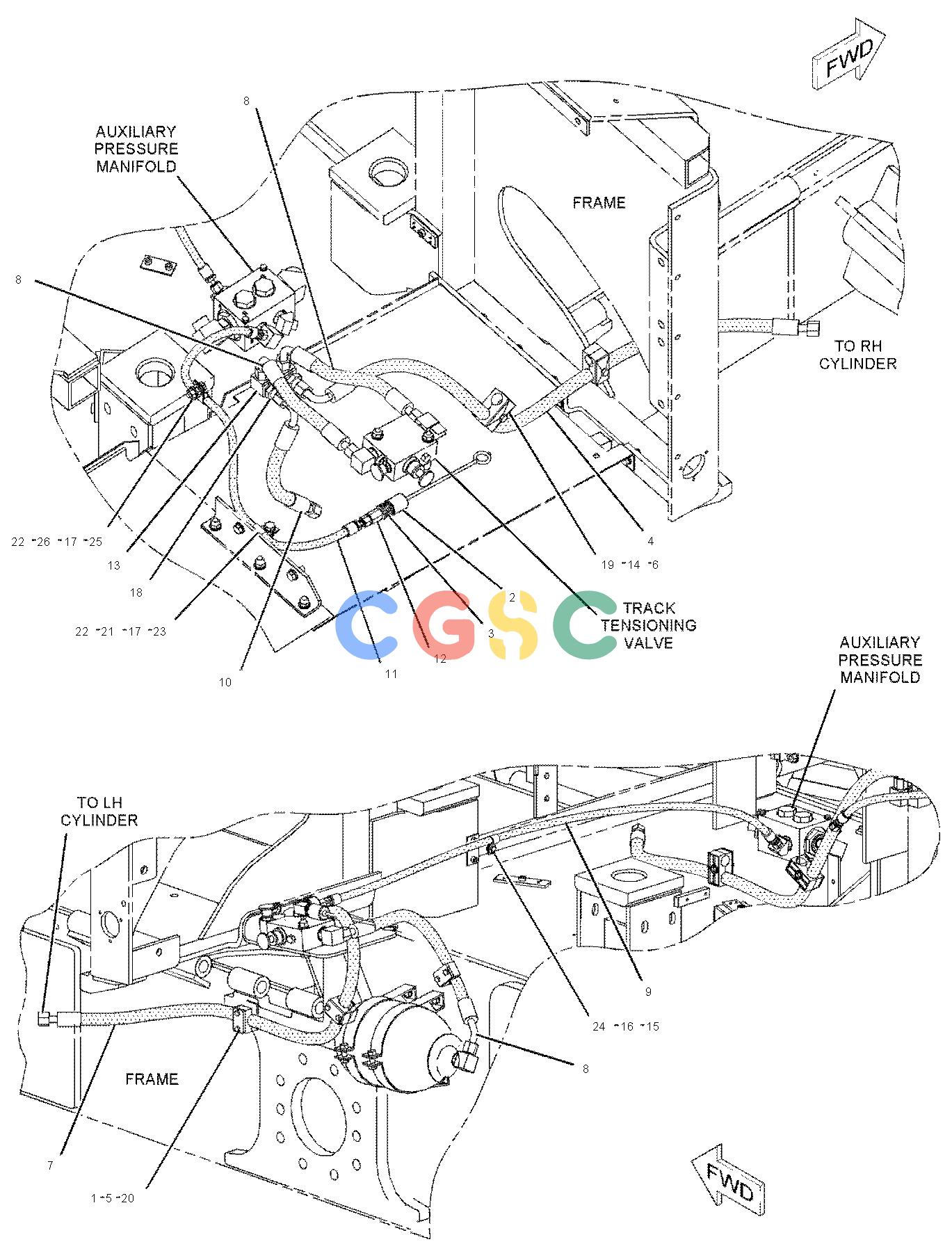

卡特零件查询（AP-655C） 191-4902: LINES GP-TRACK TENSION
广数供应链运营团队, 16 02月, 2025，浏览：
539 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-9959 | [6] | CLAMP | |
| 2. | 5R-6302 | [1] | CAP-DUST | |
| 3. | 6V-4144 | [1] | COUPLER AS-QUICK CONNECT(FLUID SAMPLING) | |
| | 5P-8998 | [1] | FITTING | |
| 4. | 7I-5394I | [1] | HOSE AS | |
| 5. | 7V-5628 | [3] | PLATE | |
| 6. | 102-8705 | [2] | PLATE(TOP) | |
| 7. | 138-7774I | [1] | HOSE AS | |
| 8. | 183-6271I | [1] | HOSE AS | |
| 9. | 204-4404I | [1] | HOSE AS | |
| 10. | 204-4405I | [3] | HOSE AS | |
| 11. | 204-4431I | [1] | HOSE AS | |
| 12. | 205-7302 | [1] | ADAPTER AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-6776 | [1] | ADAPTER | |
| 13. | 148-8375 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| 14. | 222-9820 | [4] | CLAMP-HALF | |
| 15. | 4K-8864 | [1] | CLIP | |
| 16. | 5P-4115 | [2] | WASHER-HARD(7.2X19X2-MM THK) | |
| 17. | 6D-3479 | [2] | CLIP | |
| 18. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 19. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 20. | 8C-8451M | [6] | BOLT(M6X1X40-MM) | |
| 21. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 23. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 24. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 25. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 26. | 7X-7729 | [3] | WASHER(11X25X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
