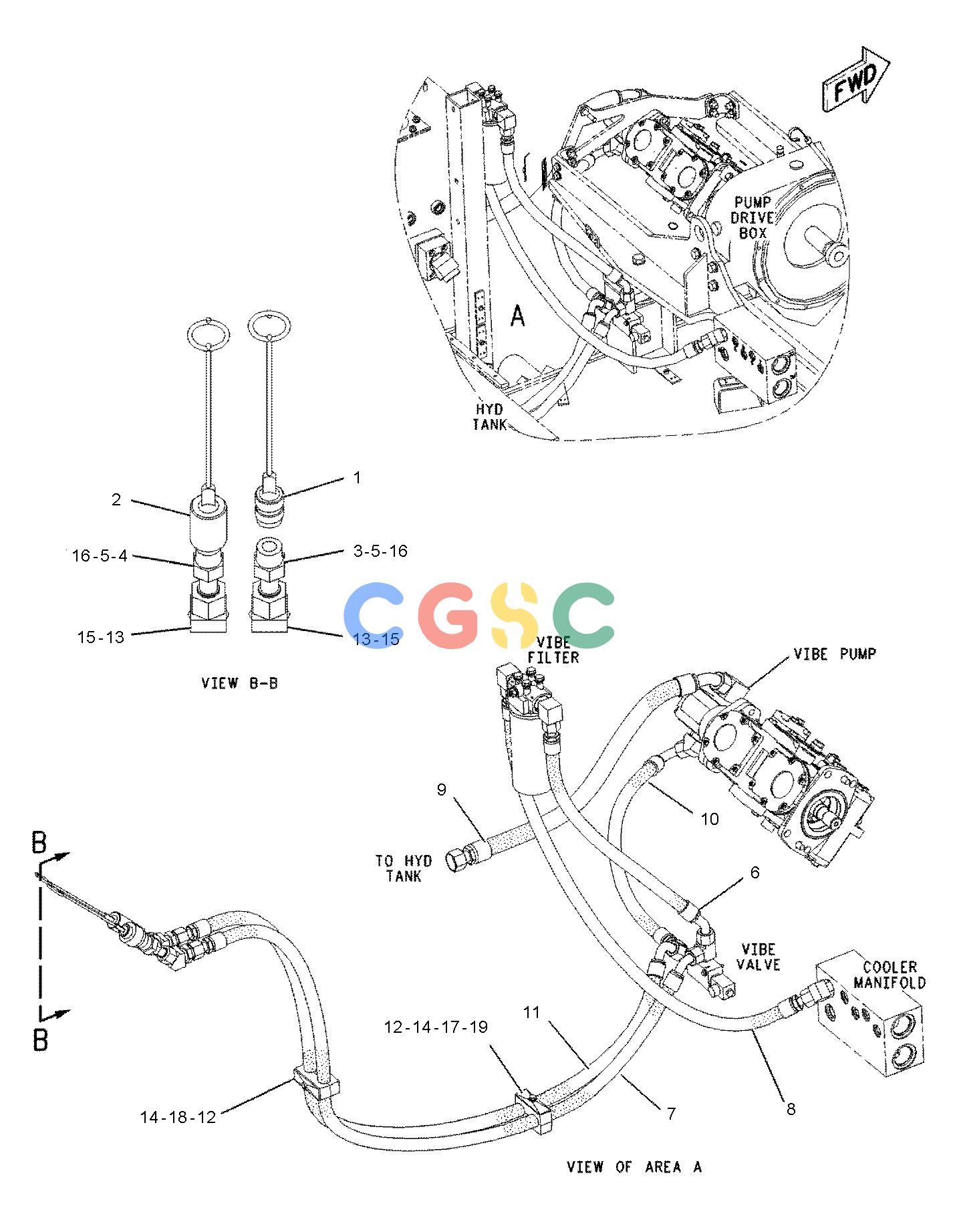

卡特零件查询（AP-655C） 198-6158: LINES GP-VIBRATORY
广数供应链运营团队, 16 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5718 | [1] | PLUG-DUST | |
| 2. | 5R-5719 | [1] | CAP-DUST | |
| 3. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 3S-9233 | [1] | SEAL-O-RING | |
| | | [1] | RETAINER |
| 4. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 151-4799 | [1] | COUPLER | |
| | 153-6227 | [1] | CAP-DUST | |
| 5. | 7R-0042 | [2] | ADAPTER | |
| 6. | 8E-1665I | [1] | HOSE AS | |
| 7. | 111-3877I | [1] | HOSE AS | |
| 8. | 124-1866I | [1] | HOSE AS | |
| 9. | 159-1567I | [1] | HOSE AS | |
| 10. | 087-1799I | [1] | HOSE AS | |
| 11. | 204-4308I | [1] | HOSE AS | |
| 12. | 207-4499 | [2] | PLATE-COVER | |
| 13. | 165-4933 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8990 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 14. | 206-6413 | [4] | CLAMP-HALF | |
| 15. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 16. | 3D-2824 | [2] | SEAL-O-RING | |
| 17. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 19. | 8T-6870M | [1] | BOLT(M8X1.25X70-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
