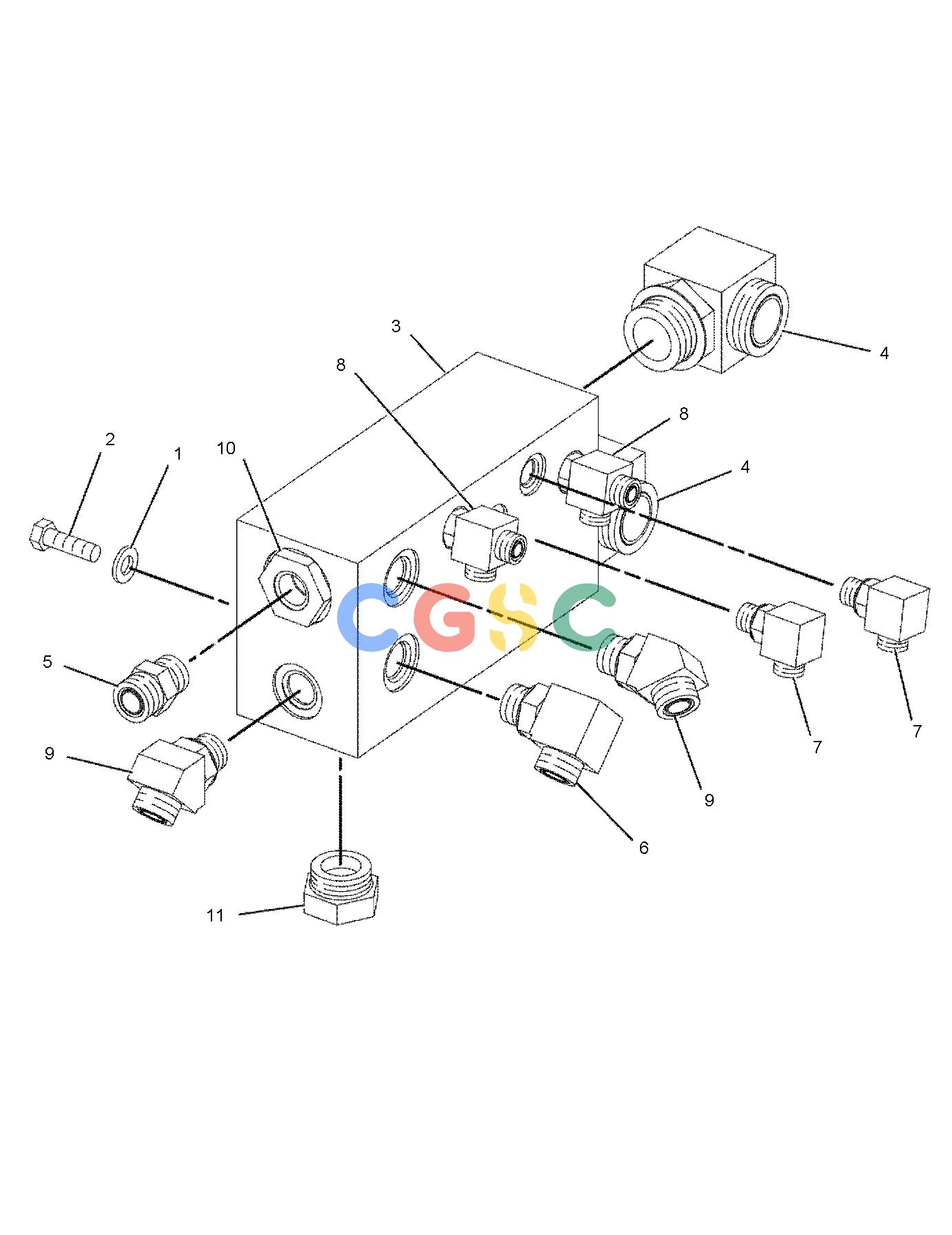

卡特零件查询（AP-655C） 197-7419: MANIFOLD & VALVE GP

广数供应链运营团队, 16 02月, 2025，浏览： 918 次

Pos.	Part No	Qty	Parts name
1.	8T-4223	[2]	WASHER-HARD(13.5X25.5X3-MM THK)
2.	8T-4183M	[2]	BOLT(M12X1.75X40-MM)
3.	228-4077	[1]	VALVE GP-COOLER BYPASS(RETURN, OIL COOLER BYPASS)
	2S-4078	[1]	SEAL-O-RING
4.	204-9815	[2]	ELBOW AS
			(EACH INCLUDES)
	6K-6307	[1]	SEAL-O-RING
	8T-0315	[1]	SEAL-O-RING
	8T-1682	[1]	ELBOW
5.	148-8327	[1]	CONNECTOR AS
	3D-2824	[1]	SEAL-O-RING
	6V-8637	[1]	CONNECTOR
	6V-9746	[1]	SEAL-O-RING
6.	148-8347	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	6V-9007	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
7.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
8.	148-8428	[2]	TEE AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	6V-8782	[1]	TEE
9.	153-6237	[2]	ELBOW AS
			(EACH INCLUDES)
	3D-2824	[1]	SEAL-O-RING
	6V-9004	[1]	ELBOW
	6V-9746	[1]	SEAL-O-RING
10.	164-5555	[1]	ADAPTER AS
	2S-4078	[1]	SEAL-O-RING
	4S-6679	[1]	ADAPTER
11.	164-5616	[1]	PLUG AS
	9S-6130	[1]	PLUG
	2S-4078	[1]	SEAL-O-RING
	M		METRIC PART
