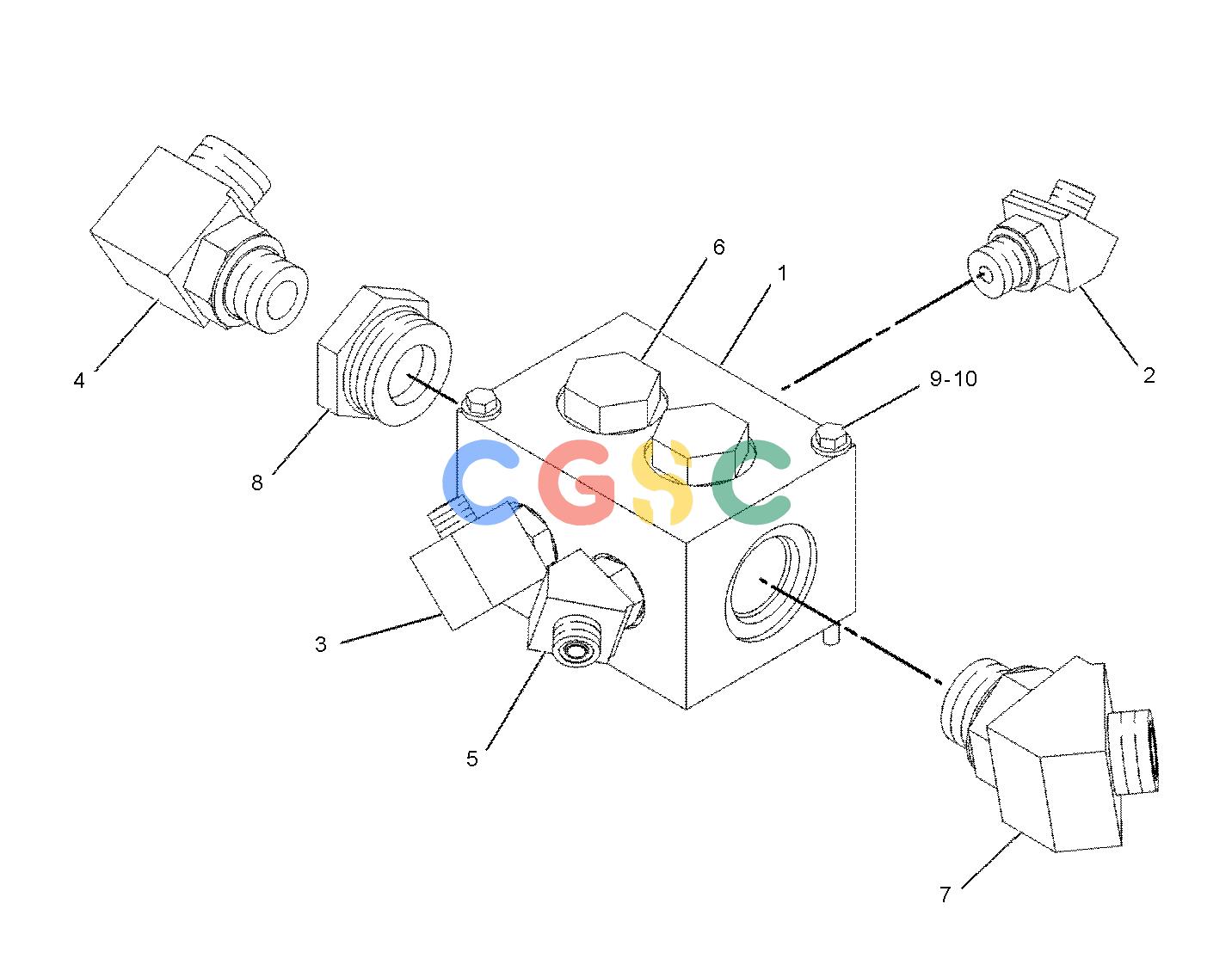

卡特零件查询（AP-655C） 197-7420: MANIFOLD GP-HYDRAULIC
广数供应链运营团队, 16 02月, 2025，浏览：
257 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-0003 | [1] | MANIFOLD | |
| 2. | 205-4134 | [1] | ELBOW AS | |
| | 205-4133 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 3. | 205-4136 | [1] | ELBOW AS | |
| | 205-4135 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 4. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-8363 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9876 | [1] | ELBOW | |
| 6. | | [2] | PLUG AS |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 7. | 150-4049 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 8T-4149 | [1] | ELBOW | |
| 8. | 164-5555 | [1] | ADAPTER AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 4S-6679 | [1] | ADAPTER | |
| 9. | 7X-7888M | [2] | BOLT(M6X1X90-MM) | |
| 10. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
