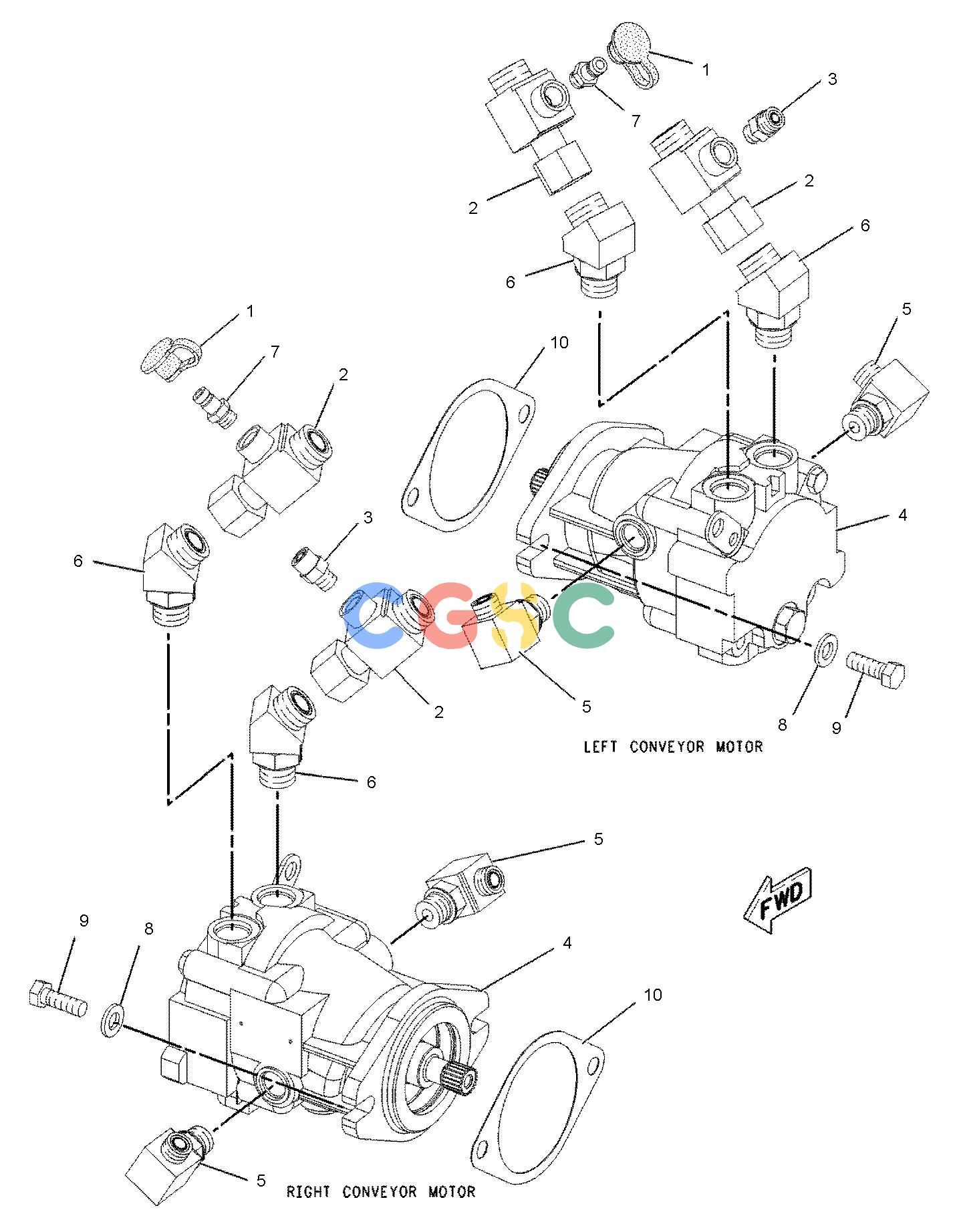

卡特零件查询（AP-655C） 190-9958: MOTOR & MTG GP-CONVEYOR
广数供应链运营团队, 16 02月, 2025，浏览：
154 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [4] | CAP-DUST | |
| 2. | 148-8430 | [4] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 3. | 164-6873 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 113-9234 | [1] | CONNECTOR | |
| 4. | 190-8787Y | [2] | MOTOR GP-PISTON(DRAG CONVEYOR) | |
| 5. | 148-8372 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8721 | [1] | ELBOW | |
| 6. | 153-6237 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 7. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 8. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 10. | 9H-8872 | [2] | GASKET | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
