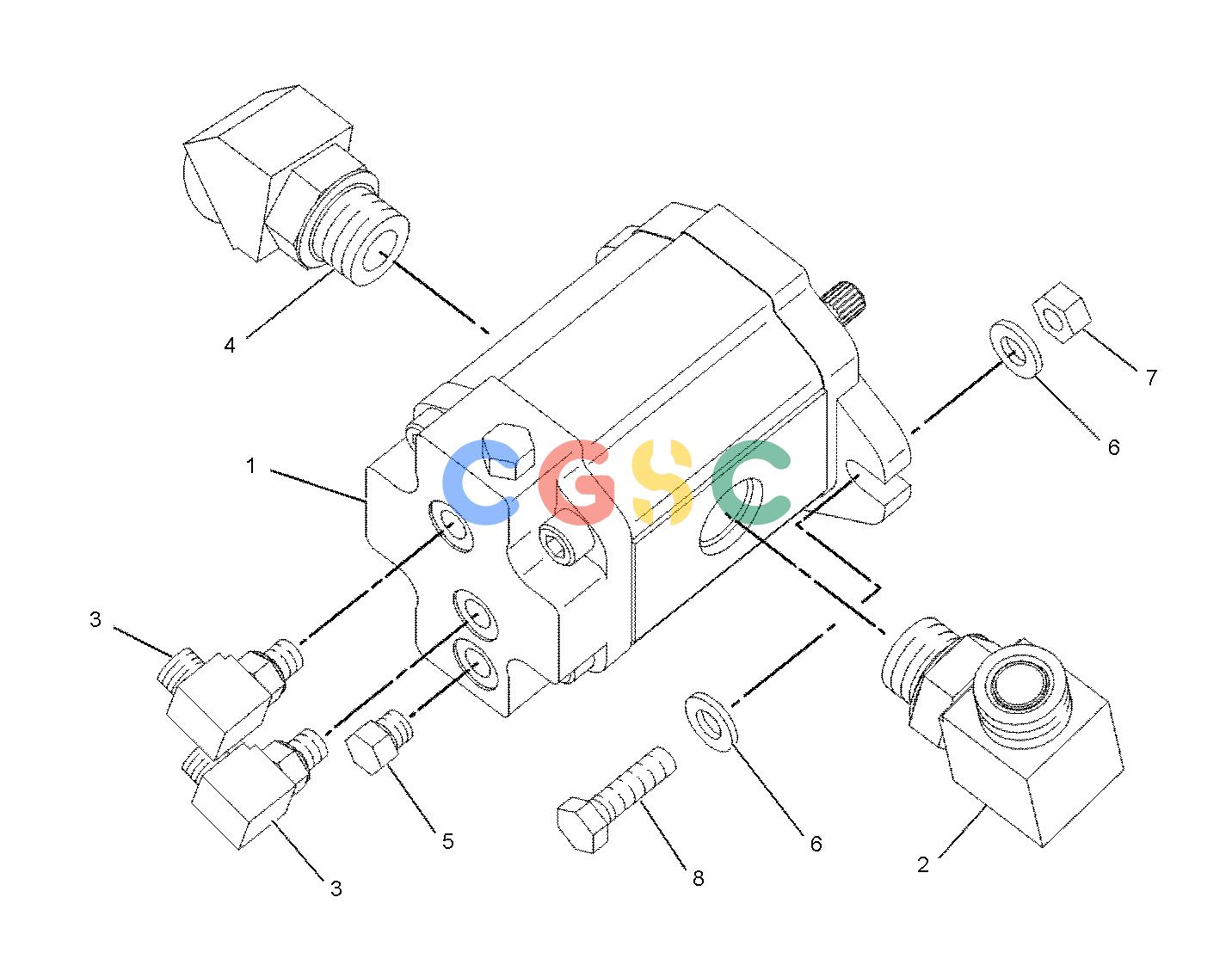

卡特零件查询（AP-655C） 190-9960: MOTOR & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 190-8799 | [1] | MOTOR GP-GEAR(HYDRAULIC FAN MOTOR) | |
| | 230-1523 | [1] | KIT-SEAL(HYDRAULIC FAN MOTOR) | |
| 2. | 148-8347 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 3. | 148-8369 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 4. | 153-6237 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9004 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 155-3624 | [1] | PLUG AS | |
| | 9S-4182 | [1] | PLUG(7/16-20-THD) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 6. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 7. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 8. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
