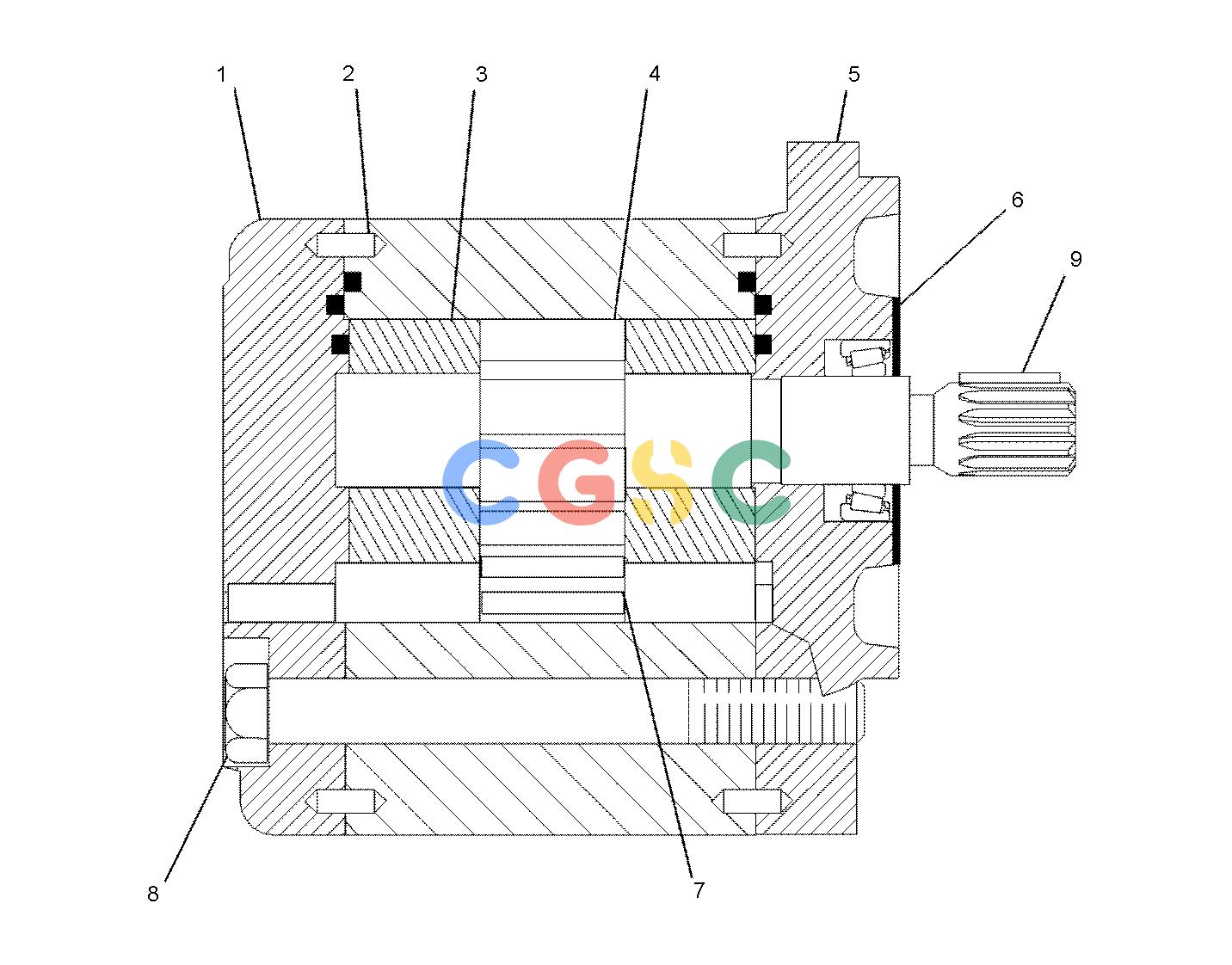

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 1G-7287 | [1] | COVER-REAR | |
| 2. | 1G-7290 | [4] | DOWEL | |
| 3. | 1G-7285 | [2] | BEARING AS | |
| 4. | 1G-7294 | [1] | GEAR-DRIVE | |
| 5. | 1G-7286 | [1] | FLANGE | |
| 6. | 1G-7289 | [1] | RING-SNAP | |
| 7. | 1G-7292 | [1] | GEAR-IDLER | |
| 8. | 8T-4172M | [4] | BOLT(M10X1.5X80-MM) | |
| 9. | 206-8622 | [1] | KEY | |
| 1G-7293F | [2] | PLUG-PORT | ||
| 1G-7288F | [1] | DRAIN-CASE | ||
| AVAILABLE REPAIR KIT(S): | ||||
| 1G-7284 | [1] | KIT-SEAL | ||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
