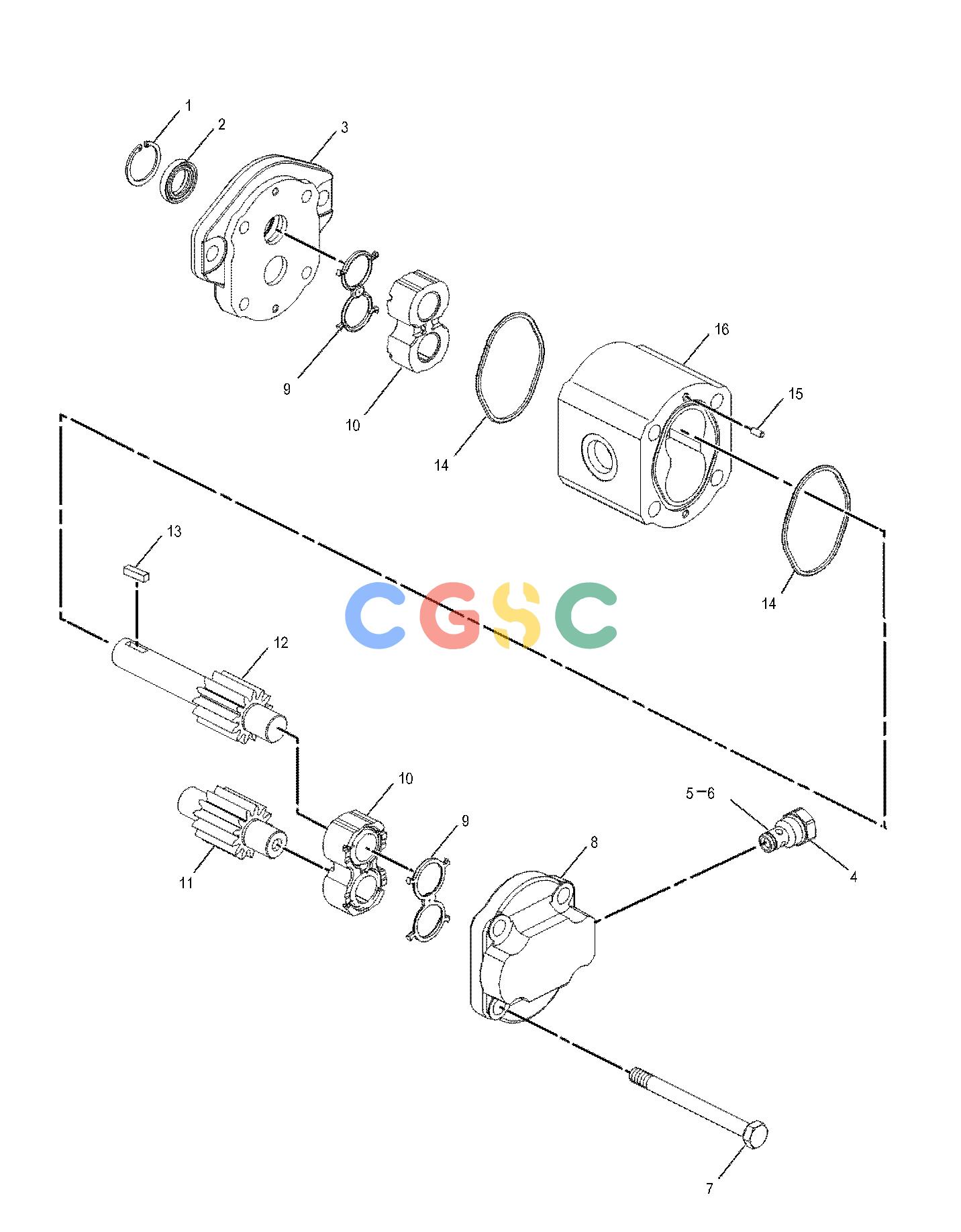

卡特零件查询（AP-655C） 227-3031: MOTOR GP-GEAR
广数供应链运营团队, 16 02月, 2025，浏览：
708 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8J-6273T | [1] | RING-RETAINING | |
| 2. | 135-5935T | [1] | SEAL-SHAFT | |
| 3. | Z | [1] | FLANGE |
| 4. | 087-0991 | [1] | VALVE AS-CHECK | |
| 5. | 3K-0360J | [1] | SEAL-O-RING | |
| 6. | 6V-8397J | [2] | SEAL-O-RING | |
| 7. | 8T-4178M | [4] | BOLT(M10X1.5X90-MM) | |
| 8. | Z | [1] | COVER |
| 9. | Z | [2] | KIT-SEAL(HYDRAULIC GENERATOR) |
| 10. | Z | [2] | CARRIER |
| 11. | Z | [1] | SHAFT AS |
| 12. | Z | [1] | SHAFT AS |
| 13. | Z | [1] | KEY |
| 14. | Z | [2] | SEAL |
| 15. | Z | [4] | DOWEL |
| 16. | Z | [1] | BODY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 120-9047JT | [1] | KIT-SEAL(HYDRAULIC GENERATOR) | |
| | 176-0213T | [1] | KIT-SEAL(HYDRAULIC GENERATOR) | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | Z | | NOT SERVICED SEPARATELY |
