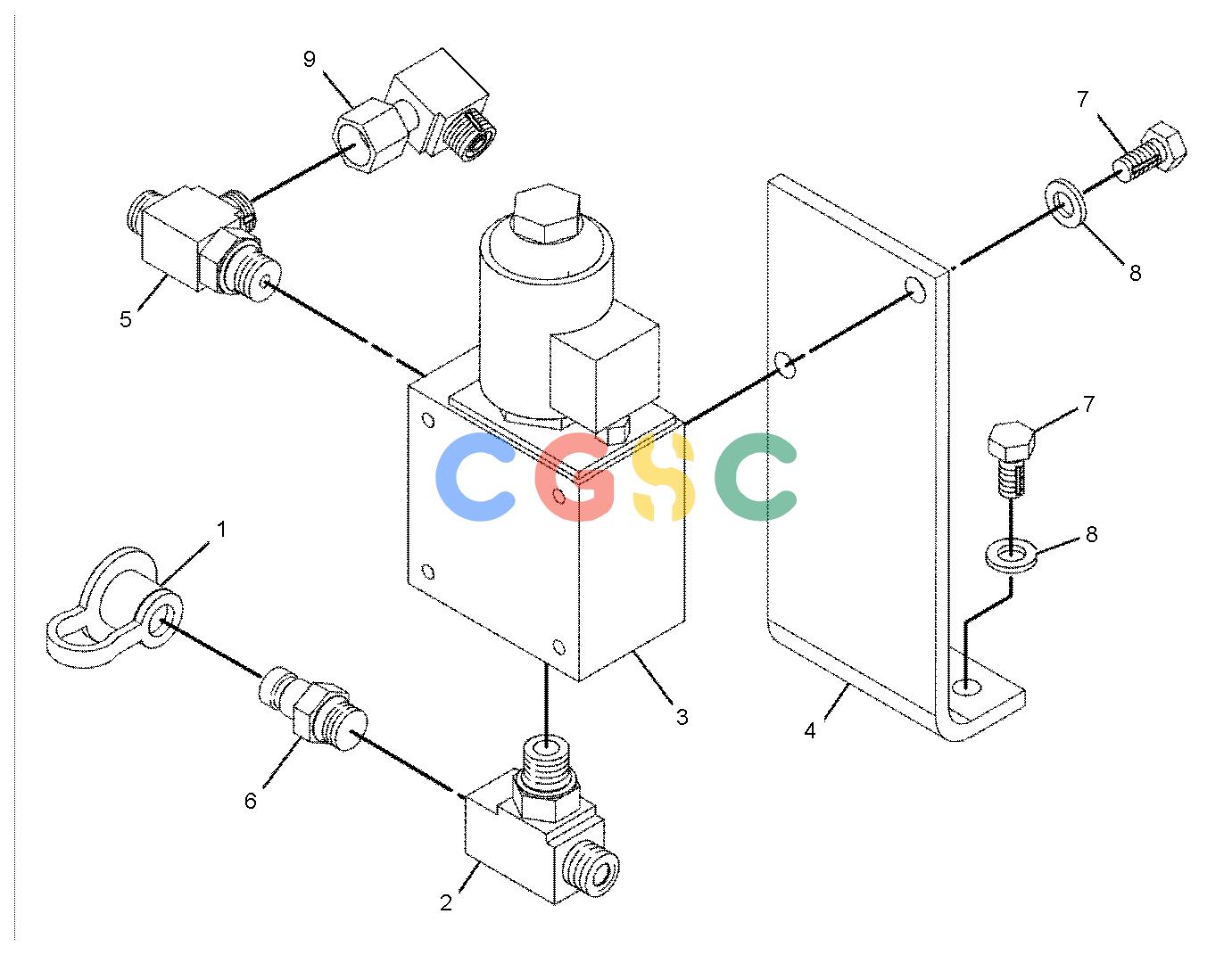

卡特零件查询（AP-655C） 190-9965: VALVE & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
627 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 148-8423 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-3311 | [1] | TEE | |
| 3. | 190-8800 | [1] | VALVE GP-CONTROL(HYDRAULIC FAN) | |
| 4. | 205-5340 | [1] | PLATE | |
| 5. | 205-7198 | [1] | TEE AS | |
| | 205-7197 | [1] | TEE-ADAPTER | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| 6. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 7. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 8. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| | M | | METRIC PART |
