卡特零件查询（AP-655C） 190-9964: VALVE & MTG GP-TOW POINT
广数供应链运营团队, 16 02月, 2025，浏览：
394 次

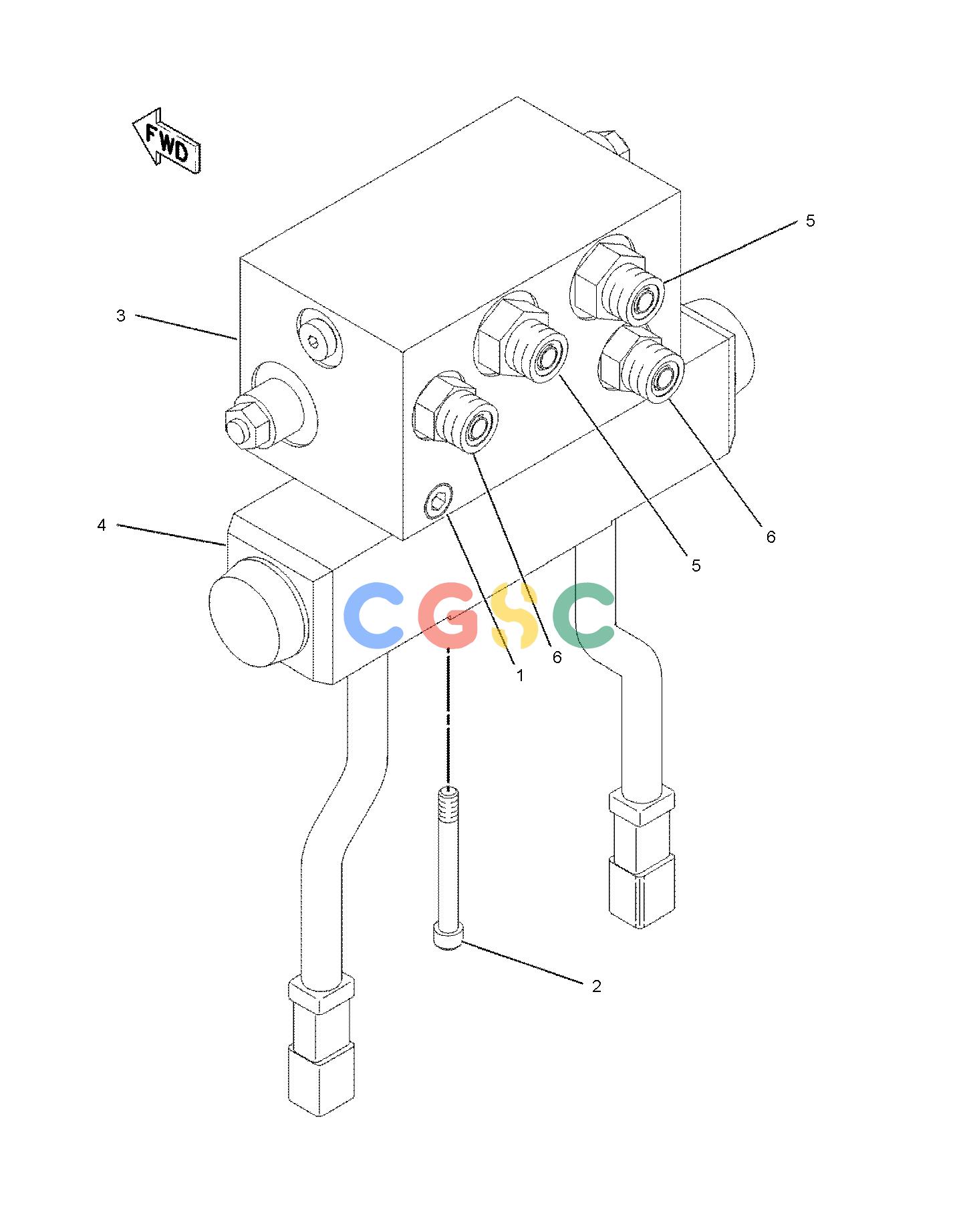

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7I-8935M | [4] | BOLT-SOCKET HEAD(M8X1.25X75-MM) | |
| 2. | 9X-6615M | [8] | BOLT(M5X0.8X30-MM) | |
| 3. | 195-2880Y | [2] | VALVE GP-COUNTERBALANCE(TOW POINT) | |
| 4. | 219-3005J | [2] | VALVE GP-SOLENOID(TOW POINT) | |
| | | | (EACH INCLUDES) |
| | 155-1280 | [2] | COIL | |
| | 219-3006 | [1] | ORIFICE | |
| 5. | 148-8318 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8634 | [1] | CONNECTOR | |
| 6. | 148-8336 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 155-1697J | [1] | KIT-SEAL(SOLENOID VALVE)(TOWPOINT) | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
