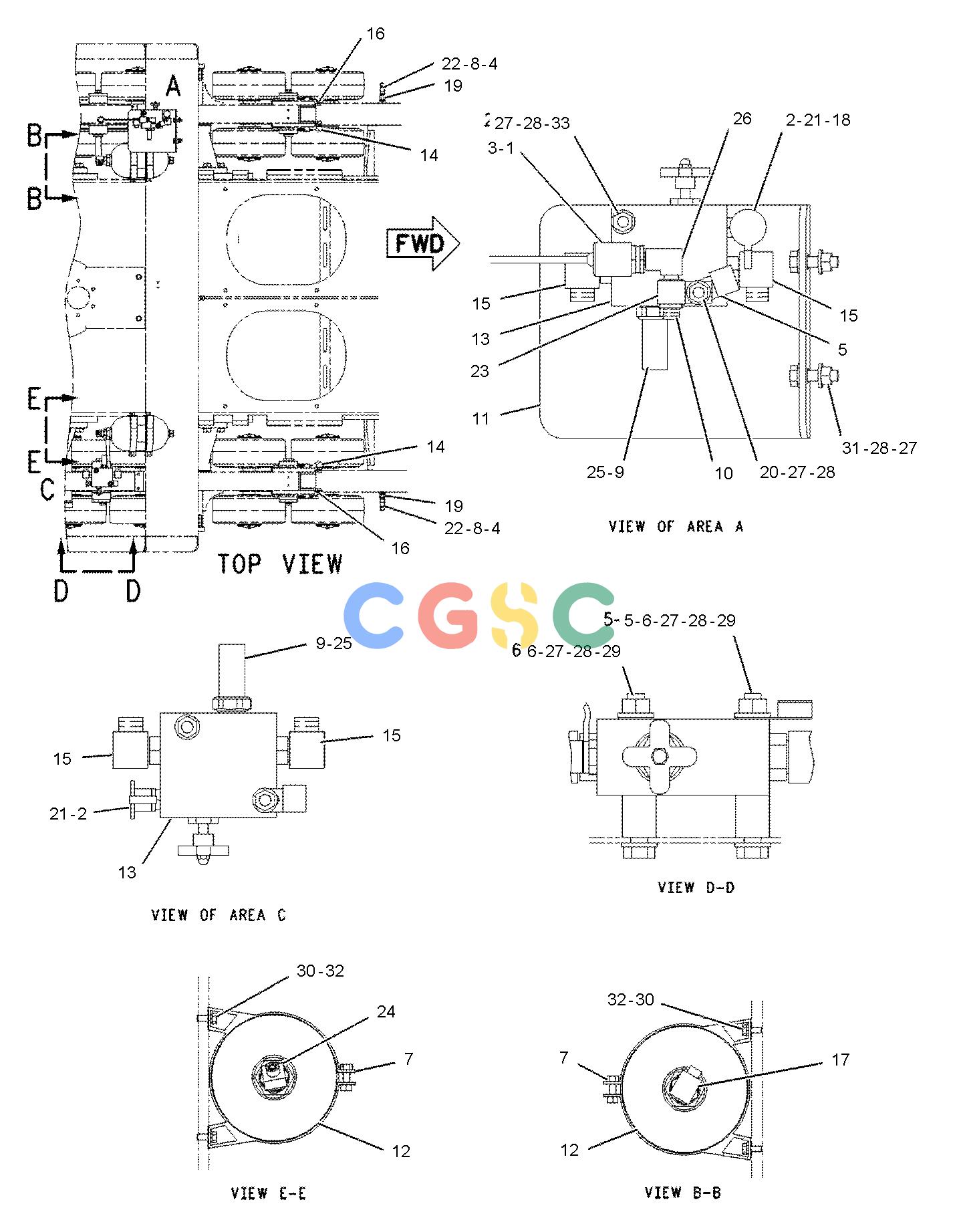

卡特零件查询（AP-655C） 191-5240: VALVE & MTG GP-TRACK TENSIONER
广数供应链运营团队, 16 02月, 2025，浏览：
542 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6302 | [1] | CAP-DUST | |
| 2. | 6V-0852 | [2] | CAP-DUST | |
| 3. | 6V-4144 | [1] | COUPLER AS-QUICK CONNECT(FLUID SAMPLING) | |
| | 5P-8998 | [1] | FITTING | |
| 4. | 7X-5308 | [2] | CAP-DUST | |
| 5. | 116-0118 | [2] | CLIP(SLOT) | |
| 6. | 124-0563 | [2] | SPACER(10.3X20X25-MM THK) | |
| 7. | 142-3061 | [4] | CLAMP AS | |
| 8. | 148-4415 | [2] | COUPLING | |
| 9. | 175-3244 | [2] | SWITCH AS-PRESSURE(TRACK TENSION) | |
| | | | (EACH INCLUDES) |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-6008D | | TUBE-HEAT SHRINK(6.35-MM DIA)(0.2-M) | |
| | 8T-5677D | | SLEEVE(0.2-M EACH) | |
| | 186-3735 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 10. | 205-7302 | [1] | ADAPTER AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-6776 | [1] | ADAPTER | |
| 11. | 205-8170 | [1] | PLATE | |
| 12. | 209-2659Y | [2] | ACCUMULATOR GP-HYDRAULIC(CHARGED) | |
| 13. | 215-3511Y | [2] | VALVE GP-ACCUMULATOR CHARGING | |
| 14. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9002 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 15. | 148-8364 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8625 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 16. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 17. | 148-8381 | [1] | ELBOW AS | |
| | 8T-5429 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 18. | 150-3065 | [1] | ELBOW AS | |
| | 6V-0484 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 19. | 150-4047 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 8T-2353 | [1] | ADAPTER | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| 20. | 160-8492M | [1] | BOLT(M10X1.5X85-MM) | |
| 21. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 22. | 165-4931 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8077 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 23. | 1S-0994 | [1] | CLIP(LOOP)(LADDER) | |
| 24. | 155-6258 | [1] | ELBOW AS | |
| | 127-1647 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 25. | 3J-1907 | [2] | SEAL-O-RING | |
| 26. | 7J-8611 | [1] | ELBOW-PIPE | |
| 27. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 28. | 8T-4133M | [7] | NUT(M10X1.5-THD) | |
| 29. | 8T-4178M | [2] | BOLT(M10X1.5X90-MM) | |
| 30. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 31. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 32. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 33. | 8T-5005M | [1] | BOLT(M10X1.5X70-MM) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
