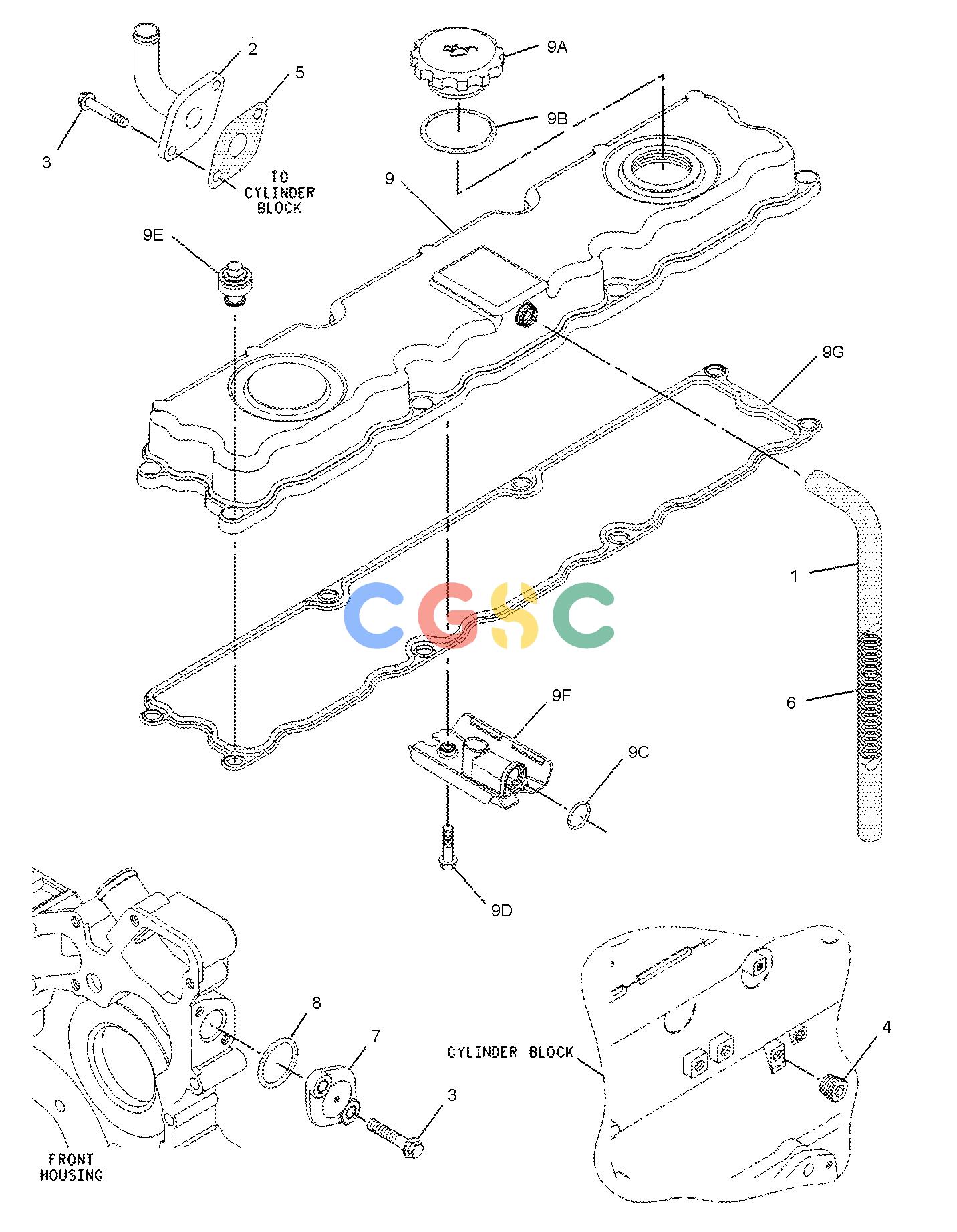

卡特零件查询（AP-655C） 219-1805: COVER GP-VALVE MECHANISM
广数供应链运营团队, 16 02月, 2025，浏览：
742 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 198-8645 | [1] | HOSE(CRANKCASE BREATHER) | |
| 2. | 219-1803 | [1] | TUBE | |
| 3. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 4. | 7M-7410 | [1] | PLUG-PIPE | |
| 5. | 100-4104 | [1] | GASKET | |
| 6. | 162-1565 | [1] | SPRING(CRANKCASE BREATHER HOSE) | |
| 7. | 197-5015 | [1] | PLATE AS | |
| 8. | 113-1505 | [1] | SEAL-O-RING | |
| 9. | 219-1787 | [1] | COVER AS-VALVE | |
| 9A. | 136-3608 | [1] | CAP AS(ENGINE OIL FILLER) | |
| 9B. | 124-0506 | [1] | SEAL | |
| 9C. | 199-9252 | [1] | SEAL-O-RING | |
| 9D. | 229-3558M | [1] | BOLT(M5X0.8X16-MM)(M5X.8X16-MM) | |
| 9E. | 216-9600 | [8] | BOLT(ISOLATOR) | |
| 9F. | 216-9602 | [1] | BREATHER AS(CRANKCASE) | |
| 9G. | 216-9604 | [1] | GASKET(VALVE COVER) | |
| | M | | METRIC PART |
