卡特零件查询（AP-655C） 216-8316: CRANKSHAFT GP
广数供应链运营团队, 16 02月, 2025，浏览：
822 次

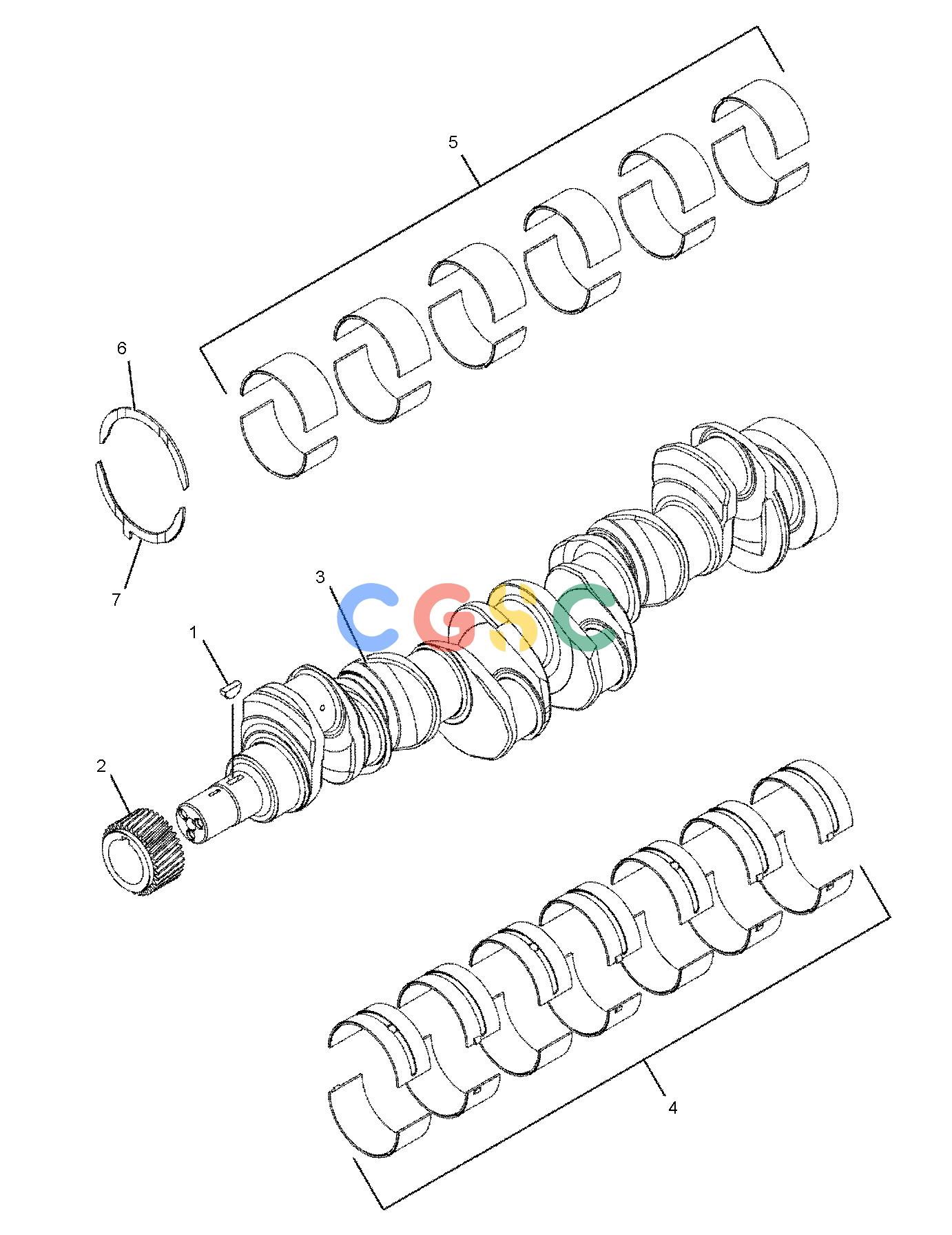

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1B-8736 | [1] | KEY-WOODRUFF | |
| 2. | 216-8314 | [1] | GEAR-CRANKSHAFT(34-TEETH) | |
| 3. | 216-8315 | [1] | CRANKSHAFT GP | |
| 4. | 353-7415 | [1] | KIT-BEARING(MAIN) | |
| | 353-7416AB | | KIT-BEARING(0.25-MM US) | |
| | 353-7417AB | | KIT-BEARING(0.50-MM US) | |
| | 353-7418AB | | KIT-BEARING(0.75-MM US)(STANDARD) | |
| 5. | 7W-4816 | [1] | BEARING SET-ROD | |
| | 7W-4817AB | | BEARING GP-CONNECTING ROD | |
| | 7W-4818AB | | BEARING GP-CONNECTING ROD(0.51-MM US) | |
| | 7W-4819AB | | BEARING GP-CONNECTING ROD(0.76-MM US) | |
| 6. | 032-9090 | [2] | WASHER-THRUST(STANDARD-UPPER) | |
| | 067-6873AB | | WASHER-THRUST(0.18-MM OS) | |
| 7. | 032-9091 | [2] | WASHER-THRUST(STANDARD-LOWER) | |
| | 067-6874AB | | WASHER-THRUST(0.18-MM OS) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
