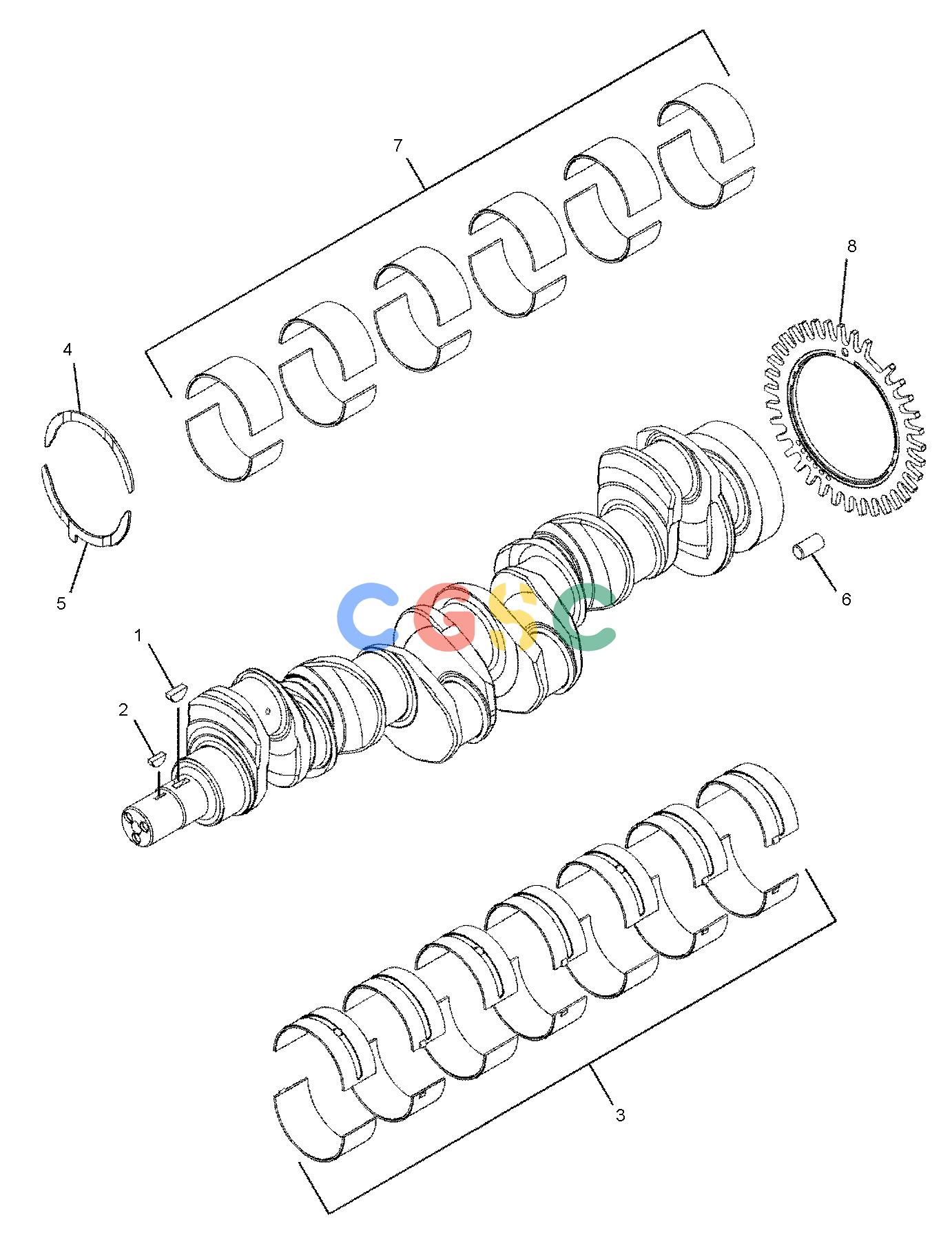

卡特零件查询（AP-655C） 240-8467: CRANKSHAFT GP
广数供应链运营团队, 16 02月, 2025，浏览：
294 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 067-6135 | [1] | KEY-WOODRUFF | |
| 2. | 6I-4716 | [1] | KEY | |
| 3. | 353-7415 | [1] | KIT-BEARING(MAIN)(MAIN) | |
| | 353-7416AB | [1] | KIT-BEARING(0.25-MM US)(0.25-MM US) | |
| | 353-7417AB | [1] | KIT-BEARING(0.50-MM US)(0.50-MM US) | |
| | 353-7418AB | [1] | KIT-BEARING(0.75-MM US)(0.75-MM US) | |
| 4. | 032-9090 | [2] | WASHER-THRUST(STANDARD-UPPER) | |
| | 067-6873AB | [1] | WASHER-THRUST(0.18-MM OS) | |
| 5. | 032-9091 | [2] | WASHER-THRUST(STANDARD-LOWER) | |
| | 067-6874AB | [1] | WASHER-THRUST(0.18-MM OS) | |
| 6. | 339-8780 | [1] | DOWEL | |
| 7. | 353-2752C | [1] | KIT-BEARING(ROD) | |
| | 353-2753AB | [1] | KIT-BEARING(ROD)(0.25-MM US) | |
| | 353-2754AB | [1] | KIT-BEARING(ROD)(0.50-MM US) | |
| | 353-2755AB | [1] | KIT-BEARING(ROD)(0.75-MM US) | |
| 8. | 249-9227 | [1] | RING-TIMING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 292-4088 | | KIT-BEARING(MAIN) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
